Boeing 707 - Kit Groups T2( ) 3 or T3( ) 3 - One Class 3 Cable to One Class 2 Cable and One Class

(7) Put a seal sleeve on Wire A2.
(8) Put a seal sleeve on Wire B3.
S. Kit Groups T2( ) 3 or T3( ) 3 - One Class 3 Cable to One Class 2 Cable and One Class 1 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 25.
Table 27
CONNECTIONS
Wire Connection Wire Connected to
A1 Splice B1
A2 Splice B2
A3 Splice C1
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) If the splice kit has seal inserts and different size solder sleeves:
(a) Put these components on Cable A in this sequence:
• The outer sleeve
• A seal insert, if a build-up sleeve is not specified for the cable
2449842 S00061545795_V1

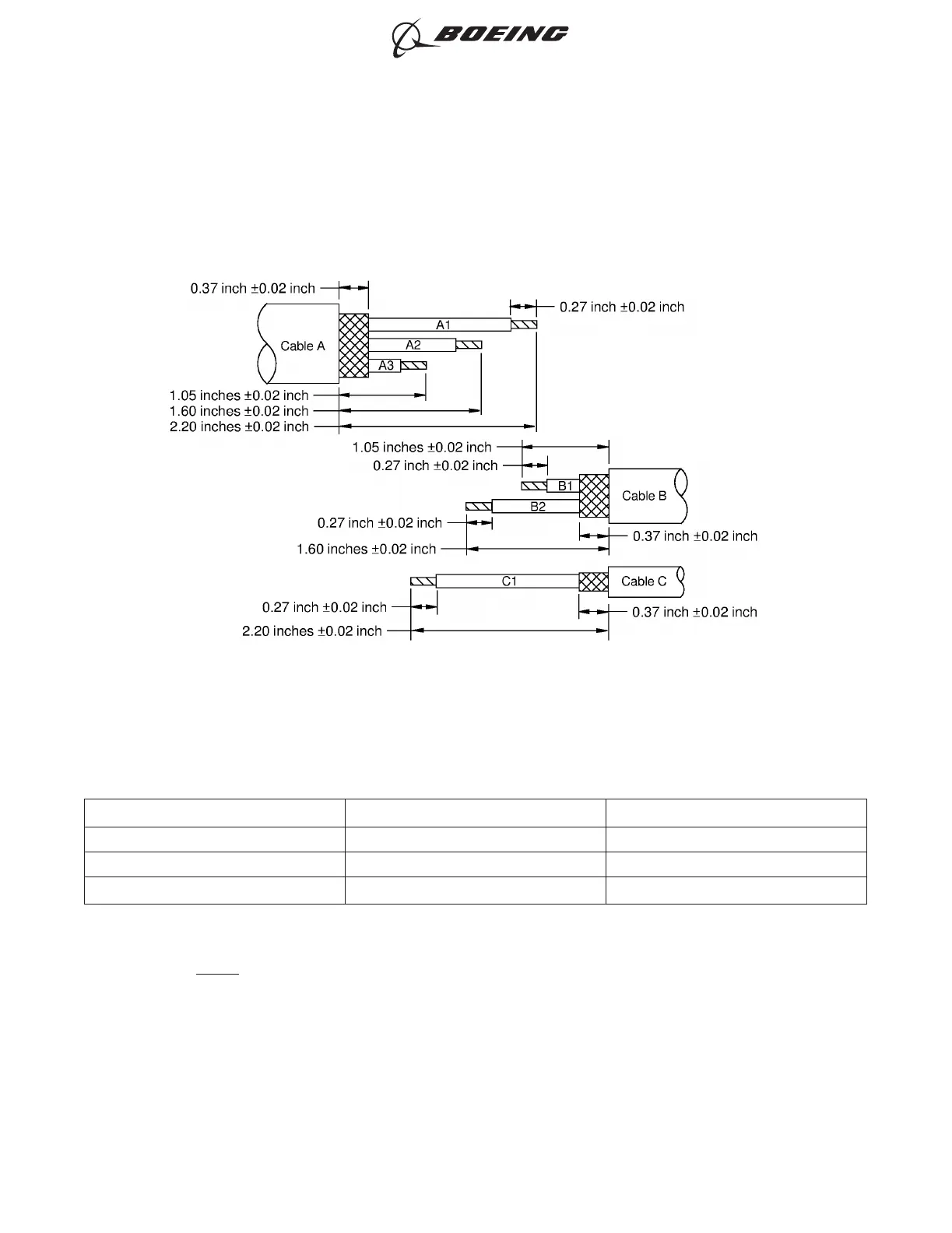

ONE CLASS 3 CABLE TO ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE
Figure 25
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 68
