Boeing 707 - Kit Groups T1 ( ) 2, T2( ) 2, T3( ) 2, or T4( ) 2 - One Class 2 Cable and One Class

N. Kit Groups T1 ( ) 2, T2( ) 2, T3( ) 2, or T4( ) 2 - One Class 2 Cable and One Class 1 Cable to One
Class 2 Cable and One Class 1 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
0.27 INCH ± 0.02 INCH
2.20 INCHES ± 0.02 INCH
0.37 INCH ± 0.02 INCH
CABLE D
D2
0.27 INCH ± 0.02 INCH
1.05 INCHES ± 0.02 INCH
0.37 INCH ± 0.025 INCH
CABLE D
D1
2.20 INCHES ± 0.02 INCH
0.27 INCH ± 0.02 INCH
C2
CABLE C
0.37 INCH ± 0.02 INCH
0.27 INCH ± 0.02 INCH
1.05 INCHES ± 0.02 INCH
C1
0.37 INCH ± 0.02 INCH
2.20 INCHES ± 0.02 INCH
0.27 INCH ± 0.02 INCH
B1
CABLE B
CONDUCTOR
CONDUCTOR
SHIELD
CABLE A
JACKET
0.37 INCH ± 0.02 INCH
0.27 INCH ± 0.02 INCH
1.05 INCHES ± 0.02 INCH
INSULATION
A2
A1
0.27 INCH ± 0.02 INCH
2.20 INCHES ± 0.02 INCH
2449837 S00061545790_V2

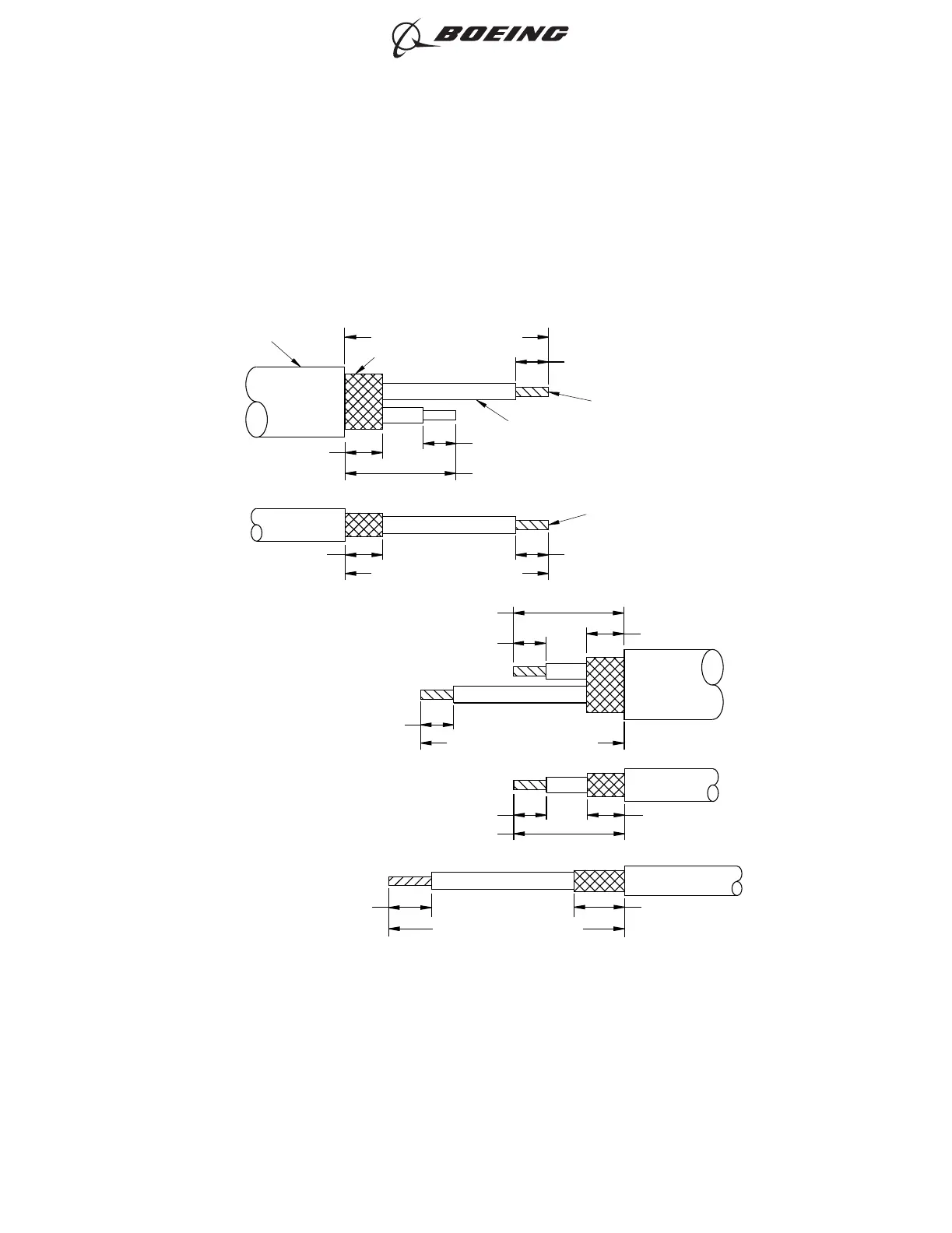

ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE TO ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE
Figure 20
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
