4. CABLE PREPARATION - SPECIAL CONFIGURATIONS

A. Kit Groups T1( ) 1, T2( ) 1, T3( ) 1 or T4( ) 1 - One Class 1 Cable to Two Class 1 Cables

For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

Refer to Figure 29.

2449846 S00061545799_V1

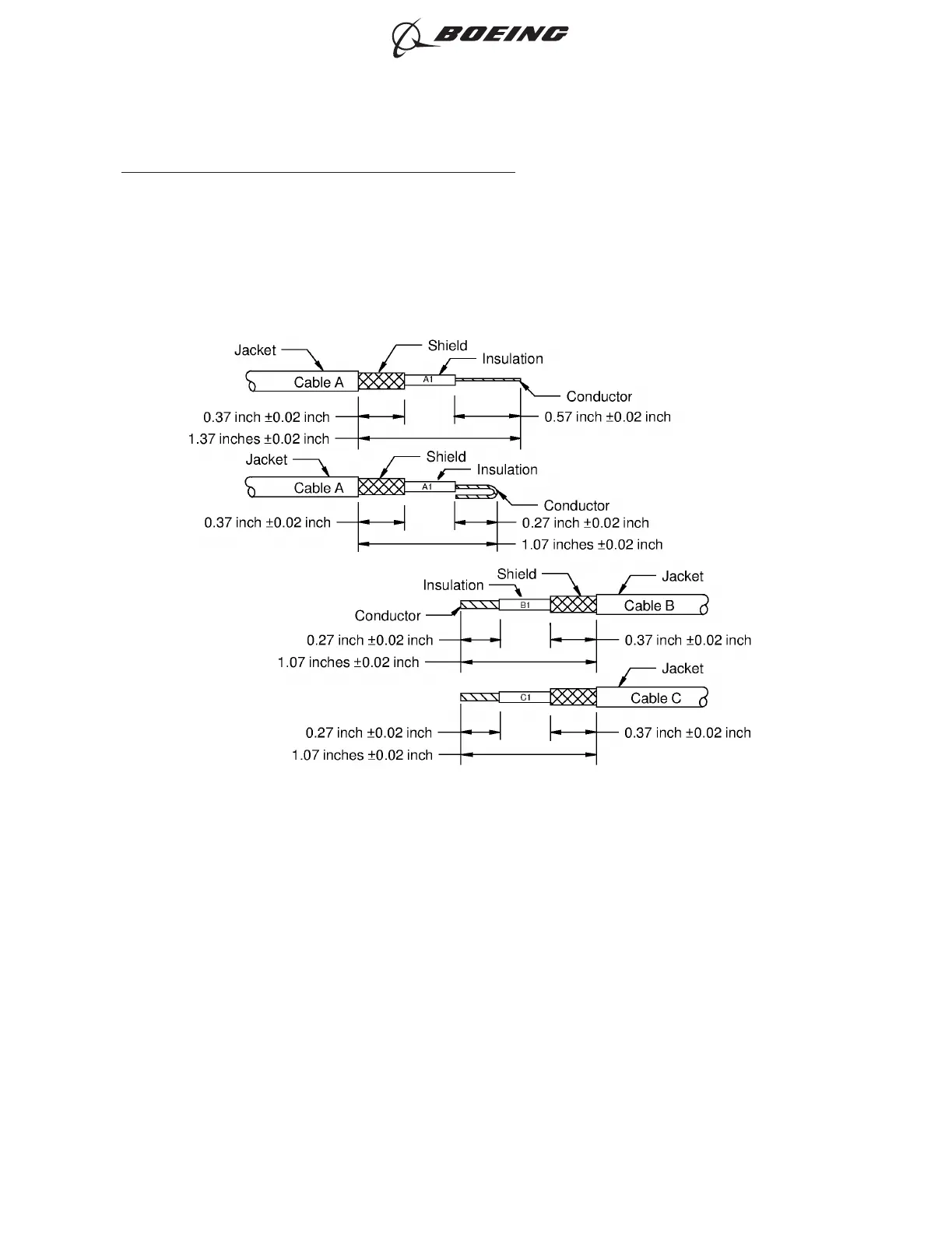

ONE CLASS 1 CABLE TO TWO CLASS 1 CABLES

Figure 29

ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES

707, 727-787

STANDARD WIRING PRACTICES MANUAL

20-30-21

Page 76

Oct 15/2020D6-54446
