This Subject gives the procedures to assemble BASCS52P series and D-150-0300 series high temperarture
shielded splice assemblies.
For the applicable conditions for:
• The repair of a wire or cable, refer to Subject 20-10-13
• The repair of a splice assembly, refer to Subject 20-10-13
• The assembly of a wire harness that has a splice, refer to Subject 20-10-11
• The installation of a wire harness that has a splice, refer to Subject 20-10-11.
1. PART NUMBERS AND DESCRIPTION
A. Splice Kit Part Numbers
Table 1
SPLICE KIT PART NUMBERS AND KIT GROUPS
Shielded Splice Kit Part Number Splice Kit Group Supplier
BACS52P1N1 P1N1 Tyco
BACS52P1N2 P1N2 Tyco
BACS52P2N1 P2N1 Tyco
BACS52P2N2 P2N2 Tyco
BACS52P2N3 P2N3 Tyco
BACS52P3N1 P3N1 Tyco
BACS52P3N2 P3N2 Tyco
BACS52P3N3 P3N3 Tyco
BACS52P3N3L P3N3 Tyco
D-150-0349 P4N1 Tyco
D-150-0350 P4N1 Tyco
D-150-0351 P3N3 Tyco
D-150-0355 P2N4 Tyco
D-150-0356 P2N3 Tyco
D-150-0360 P1N1 Tyco

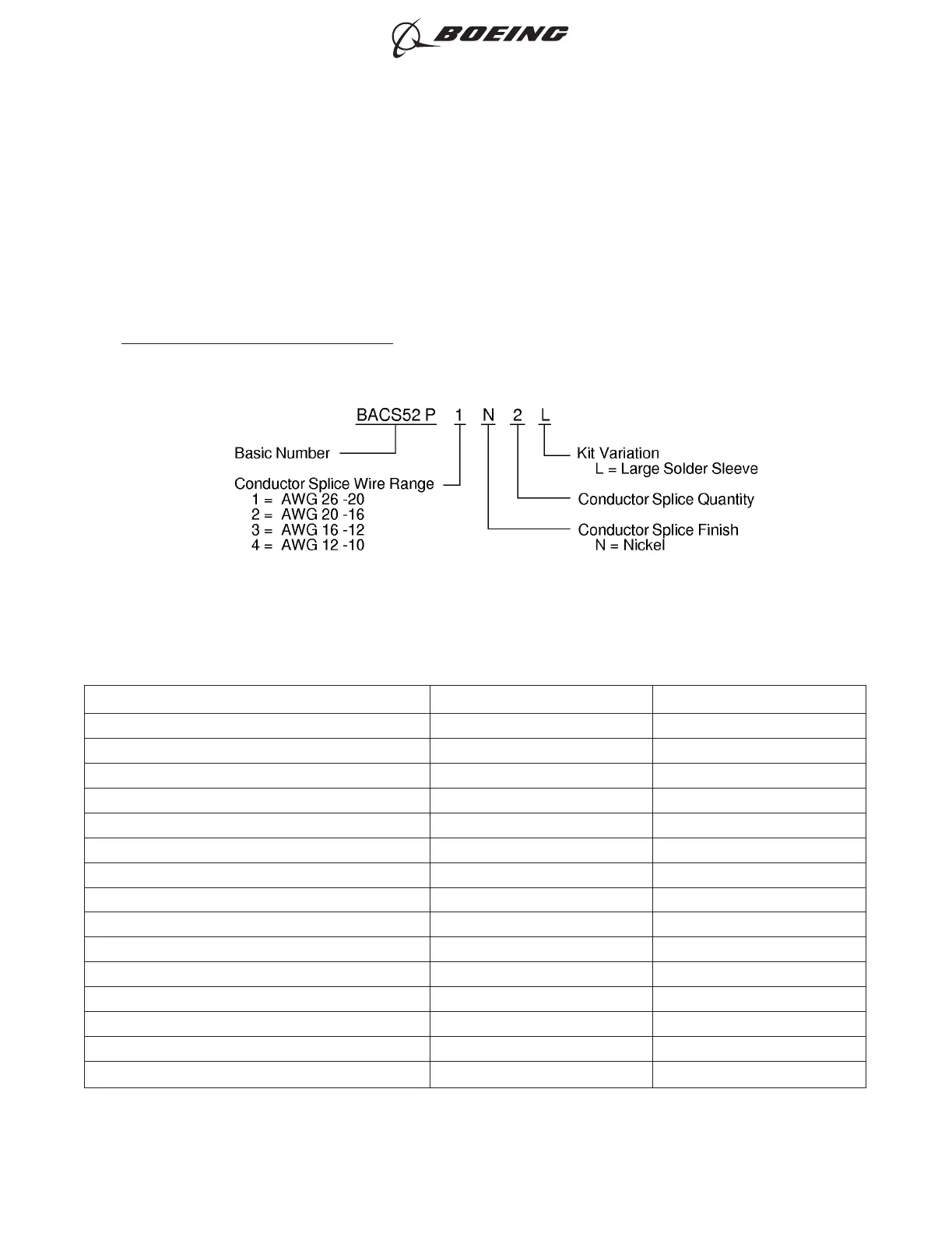

BACS52P SPLICE KIT PART NUMBER STRUCTRE
Figure 1
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 3
Oct 15/2015D6-54446
