Make sure that the small end of the solder sleeve is put on the cable first.
(6) Put a seal sleeve on Wire A1.
(7) Put a seal sleeve on Wire A2.
(8) Put a seal sleeve on the Wire C1.
T. Kit Group T3( ) 1 - One Class 1 Cable to One Class 3 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 26.
Table 28
CONNECTIONS
Wire Connection Wire Connected to
A1 Splice B1, B2 and B3
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) Put these splice assembly components on Cable A in this sequence:
• The outer sleeve
• A solder sleeve
• The shield material

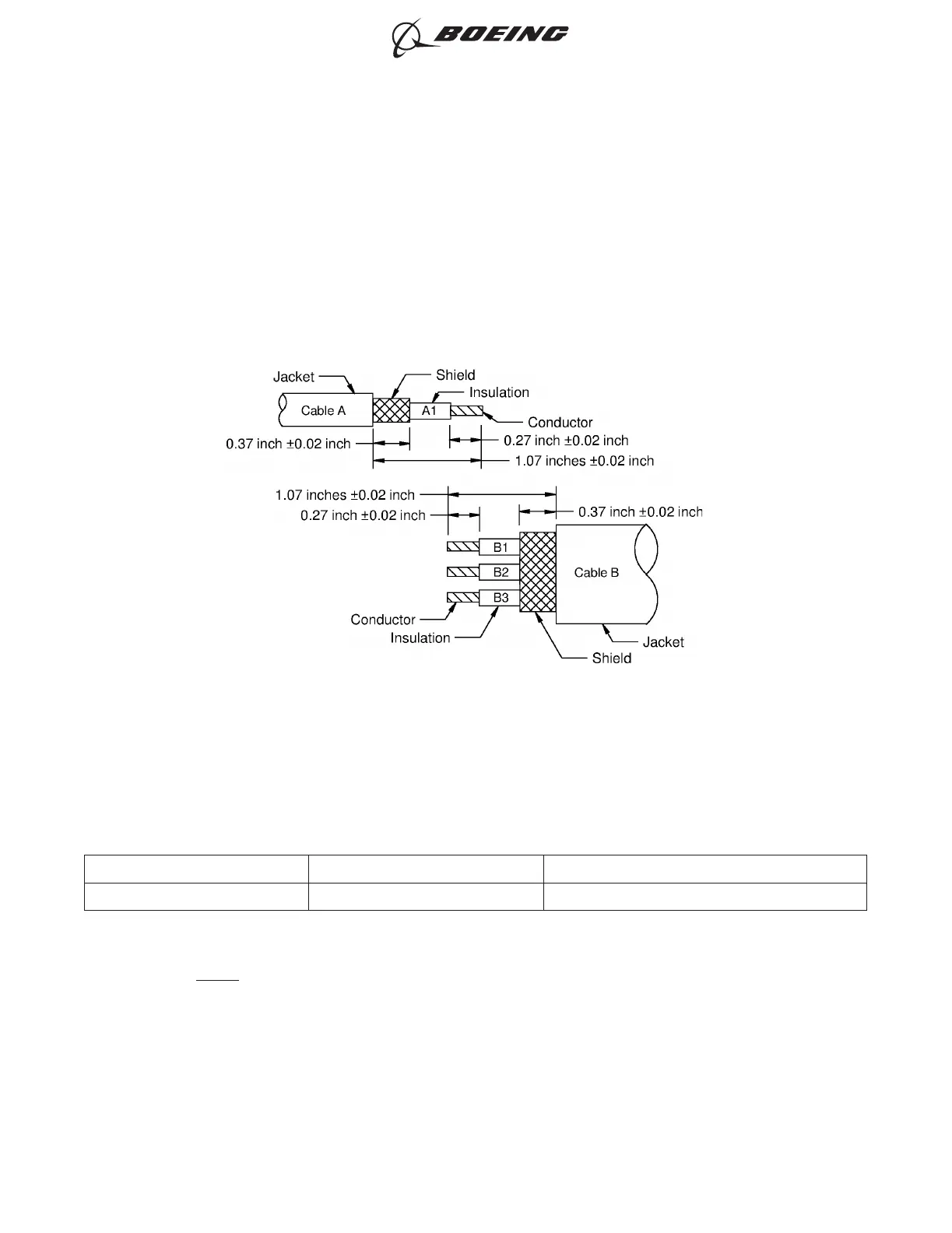

ONE CLASS 1 CABLE TO ONE CLASS 3 CABLE
Figure 26
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 70
Jun 15/2021D6-54446
