D. Closed End Splice Configurations - Unsealed Insulated Closed End Splice
NOTE: A satisfactory alternative for an unsealed closed end splice is a sealed closed end splice.
Refer to Paragraph 5.B. or Paragraph 5.C.
(1) Make a selection of an insulated closed end splice from Table 7.
Make sure that the splice has the smallest CAU range that can accept the total CAU of the
conductors. Refer to Paragraph 1.D. for the procedure to calculate the CAU of the conductors.
(2) Find the crimp barrel size of the splice from Table 7.
(3) Make a selection of a crimp tool from Table 37.
(4) Remove the necessary length of insulation from the end of each wire.
Refer to:
• Figure 16
• Subject 20-00-15 for the insulation removal procedures.

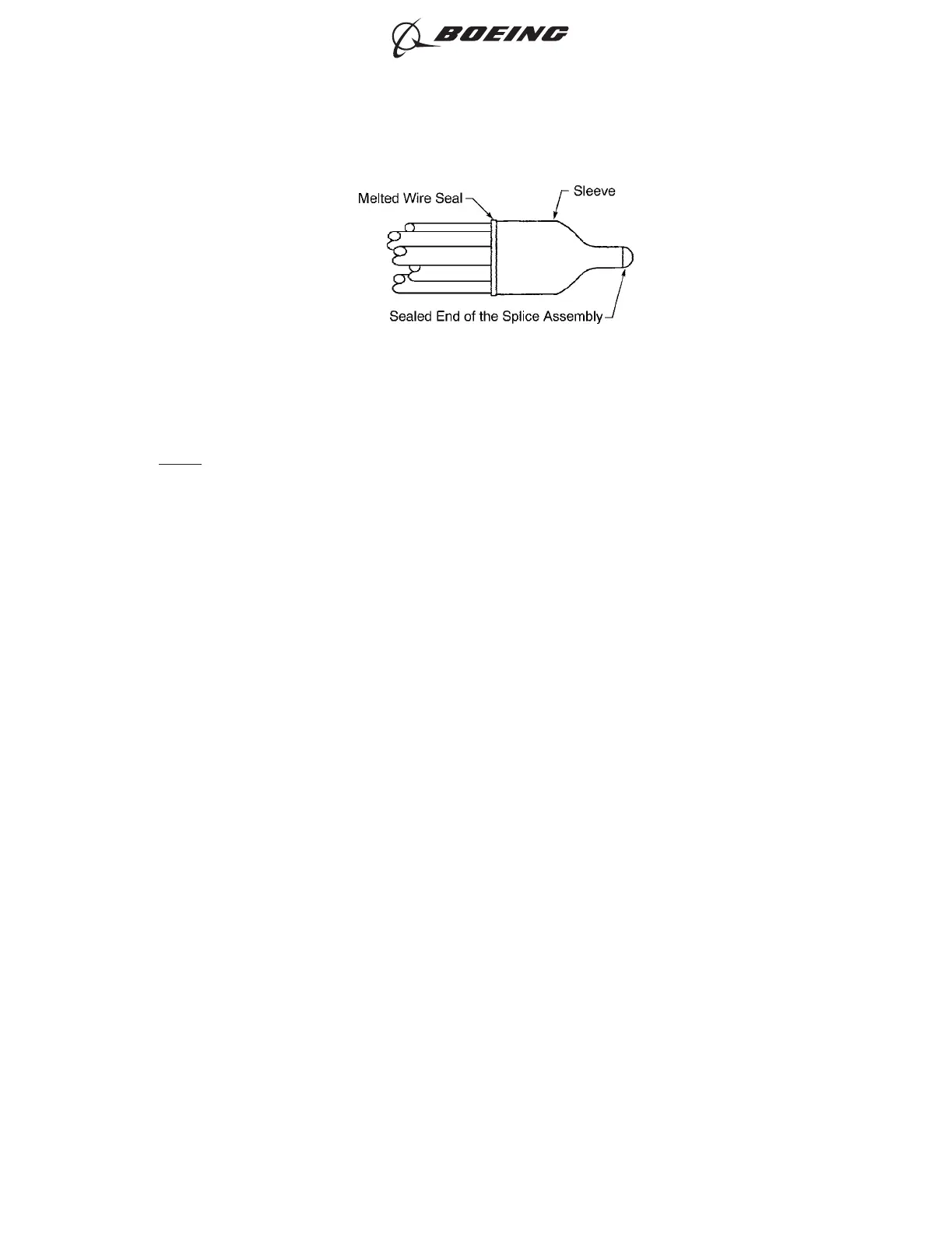

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 15
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 60
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
