(9) Hold the splice in position with light pressure.
(10) Put each wire in the same end of the splice. Refer to Figure 14.
Make sure that the distance from the end of the wire insulation to the rear end of the splice is:
• 0.12 inch ±0.12 inch for wires AWG 10 and smaller
• 0.18 inch ±0.18 inch for wires AWG 8 and larger.
(11) Crimp the splice.
(12) Put the sleeve on the splice assembly.
Make sure to align the center of the sleeve with the center of the splice.
(13) Shrink the sleeve into position. Refer to Figure 15 and Subject 20-10-14.

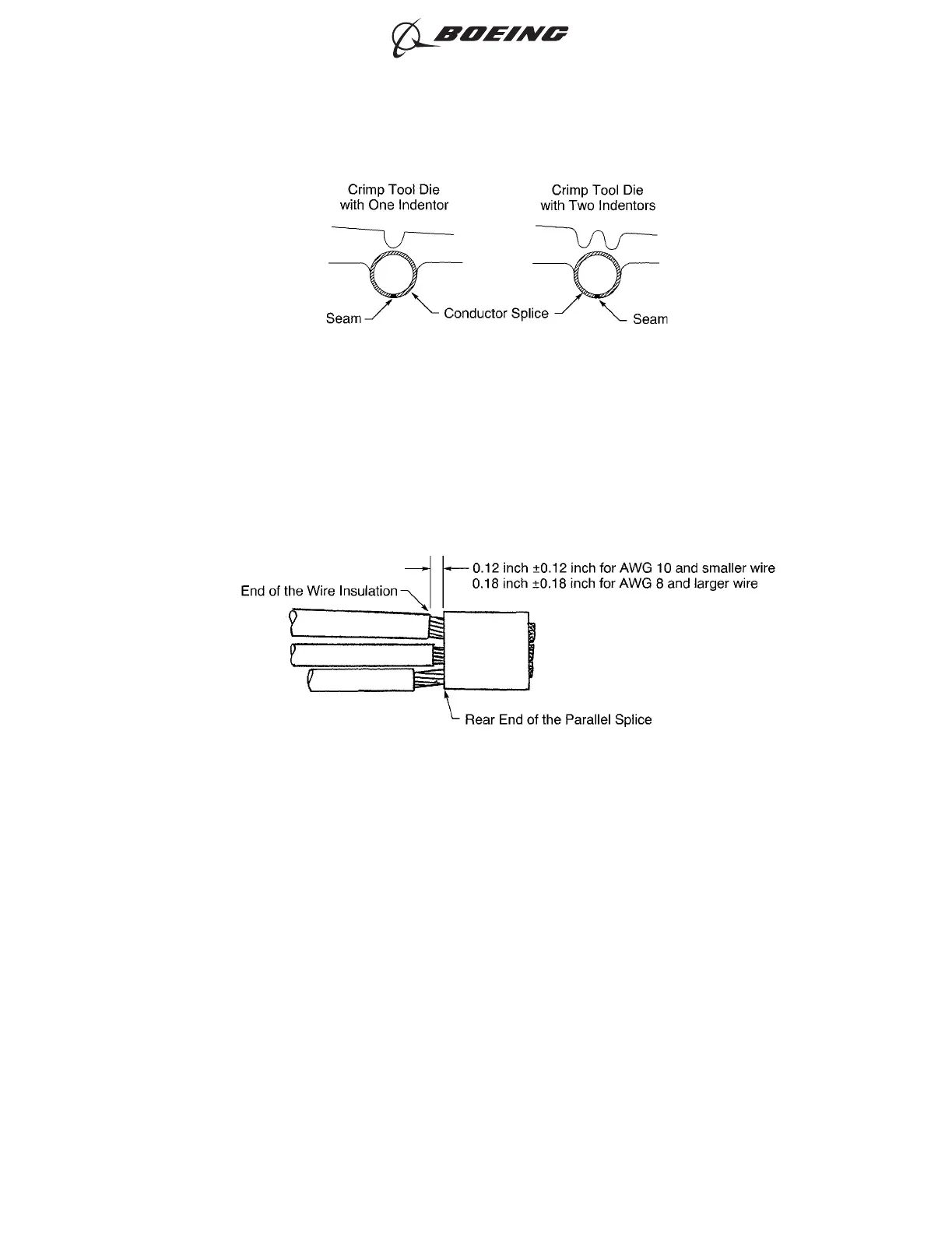

POSITION OF THE PARALLEL SPLICE IN THE CRIMP TOOL
Figure 13
POSITION OF EACH WIRE IN THE PARALLEL SPLICE
Figure 14
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 59
Feb 15/2021D6-54446
