Boeing 707 - Sealed Splice Configurations for Shielded Wire and Cable for High Temperature - Solder Sleeve Splice Kit - One Class 2 Shielded Cable to One Class 2 Shielded Cable

(14) To shrink the outer sleeve into position:
(a) Apply heat from the center of the sleeve toward one end of the sleeve until the longitudinal
line cannot be seen.
(b) Apply heat from the center of the sleeve toward the other end of the sleeve until the
longitudinal line cannot be seen.
D. Sealed Splice Configurations for Shielded Wire and Cable for High Temperature - Solder Sleeve
Splice Kit - One Class 2 Shielded Cable to One Class 2 Shielded Cable
Refer to Paragraph 16.A. first to start this procedure.
Refer to Figure 302.
(1) Prepare the end of each cable. Refer to Figure 303.
2445830 S00061545592_V1

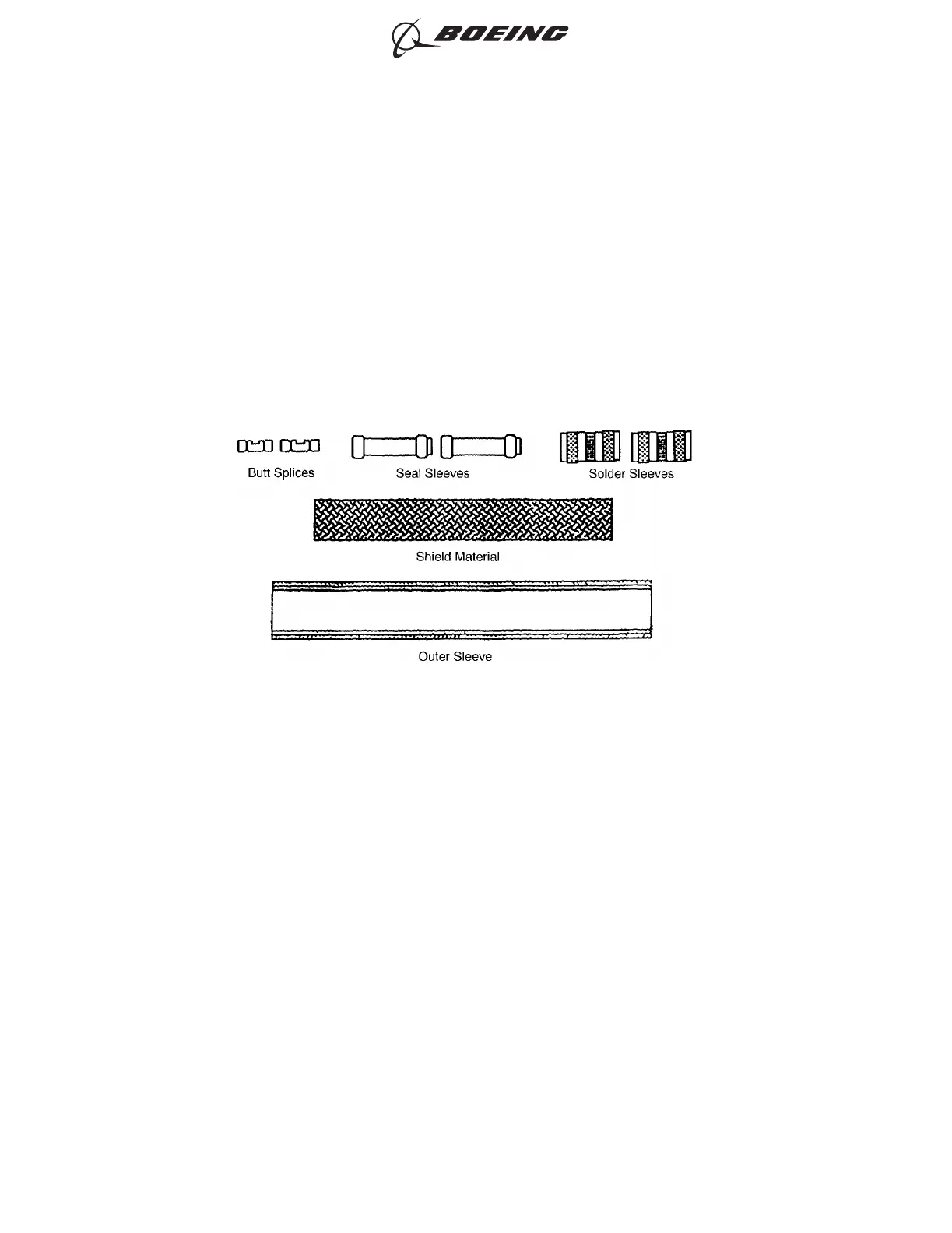

COMPONENTS OF THE RAYCHEM D-150-0252 SOLDER SLEEVE SPLICE KIT
Figure 302
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 343
Jun 15/2021D6-54446
