(a) Remove the necessary length of the outer jacket from each cable so that the distance from
the end of the outer jacket to the end of the cable is 3.00 inches ±0.05 inch.
(b) Remove the necessary length of the shield from each cable so that the distance from the
end of the shield to the end of the outer jacket is 0.50 inch ±0.05 inch.
(c) Cut the wires so that the distance from the end of the wire to the end of the outer jacket is
1.50 inches ±0.05 inch:
• Wire A2 of Cable A
• Wire B1 of Cable B.
(d) Remove the necessary length of insulation from each wire so that the distance from the end
of the insulation to the end of the conductor is 0.30 inch ±0.05 inch.
(2) Remove a short length of each end of the shield tube so that the diameter of the tube can be
increased.
(3) In this order, put these components on cable A:
• The outer sleeve
• Two solder sleeves so that the end of each sleeve with the larger diameter points toward the
end of the wire
• The shield tube.
(4) Put a seal sleeve on:
• Wire A1 of Cable A
• Wire B2 of Cable B.

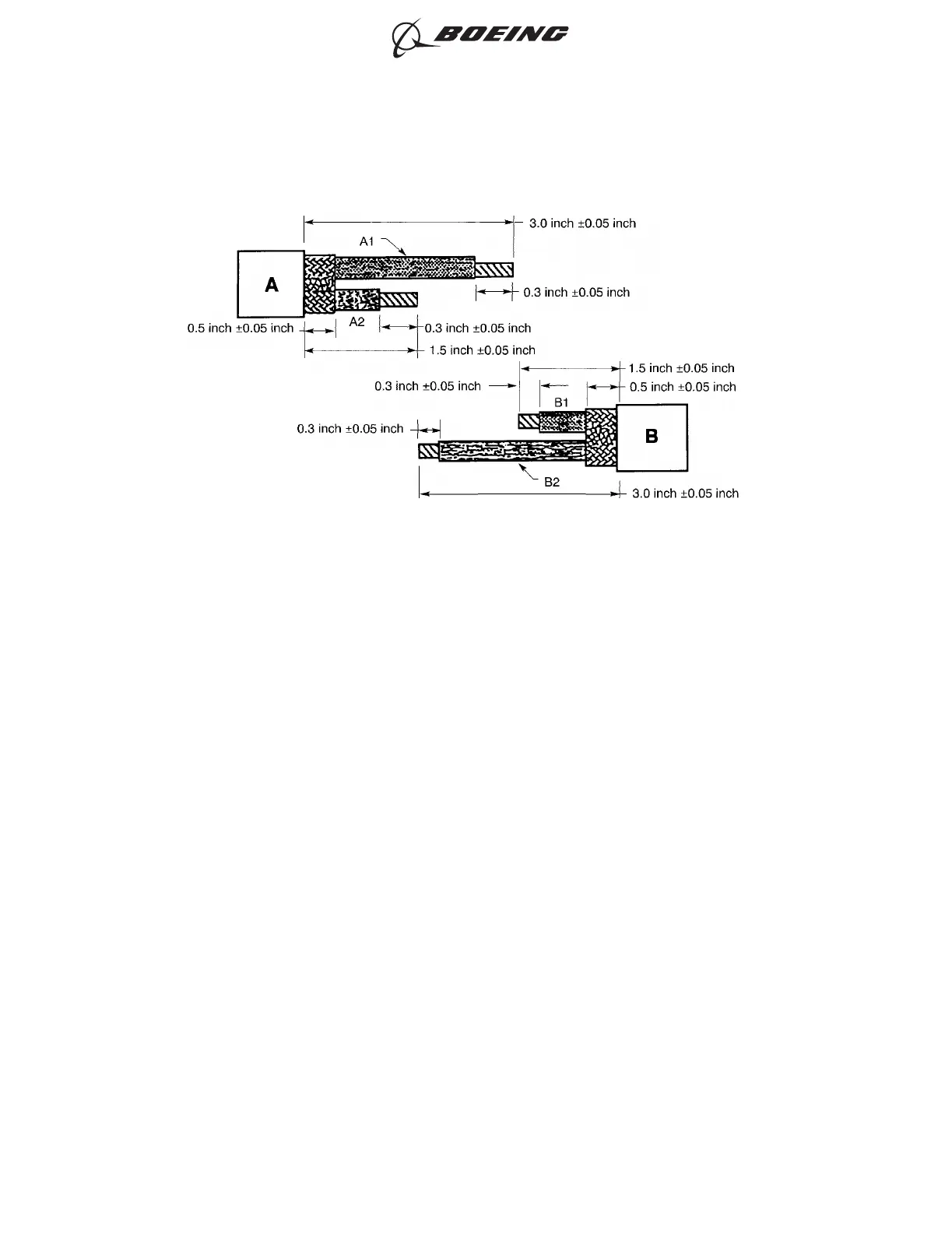

CABLE PREPARATION
Figure 303
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 344
Jun 15/2021D6-54446
