Boeing 707 - Dual Hole, Upright, and Heavy Duty Terminal Lugs

L. Dual Hole, Upright, and Heavy Duty Terminal Lugs
Refer to Paragraph 2.O. for the procedure to assemble these terminals.
These terminal lugs do not have a wire insulation grip.
Table 24
DUAL HOLE TERMINAL LUG PART NUMBERS
Crimp Barrel Size Stud Hole Size Configuration Part Number Supplier
6 3/8 Straight
BACT13J-2 Boeing
YAV6C-2L38-NK Burndy
4 3/8
30 Degree YAV4C-2L38-30NK Burndy
Straight
BACT13J-3 Boeing
YAV4C-2L38-NK Burndy
2 3/8 Straight
BACT13J-4 Boeing
YAV2C-2L38-NK Burndy
1/0 3/8
30 Degree BACT13J-5-30
Boeing
Straight
BACT13J-5
YAV25-2L38-NK Burndy
2/0 3/8
30 Degree YAV26-2L38-30NK Burndy
Straight
BACT13J-6 Boeing
YAV26-2L38-NK Burndy
2449341 S00061545424_V1
DUAL HOLE TERMINAL LUGS

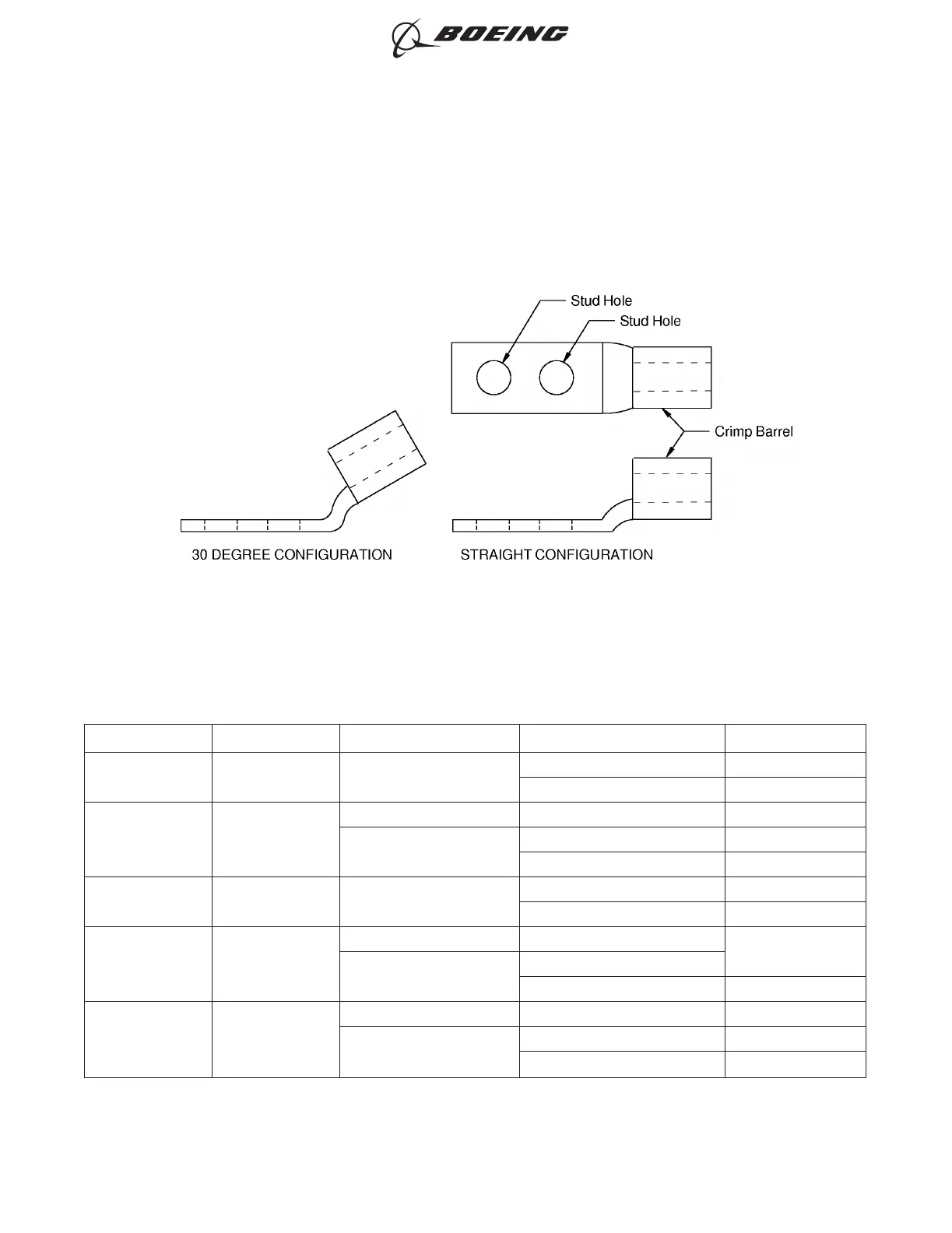

Figure 12
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 37
Jun 15/2021D6-54446
