F. BACT12E 90 Degree Upright Terminal Lugs
Refer to Paragraph 2.J. for the procedure to assemble these terminals.
BACT12E terminal lugs do not have a wire insulation grip.
Table 12
BACT12E 90 DEGREE UPRIGHT TERMINAL LUG PART NUMBERS
Crimp Barrel Size
(Wire Size Range)
(AWG)
CAU Range
Stud Hole Size Boeing Standard
Minimum Maximum
22-18 5 20 10 BACT12E18
16-14 21 42 10 BACT12E14
12-10 50 100
10 BACT12E10
1/4 BACT12E11
8 131 181 10 BACT12E81
6 206 288 1/4 BACT12E6
4 327 457 1/4 BACT12E4
2 524 735 3/8 BACT12E2
1/0 831 1119
3/8 BACT12E101
1/2 BACT12E102
2/0 1049 1458 3/8 BACT12E201
3/0 1323 1810 3/8 BACT12E300

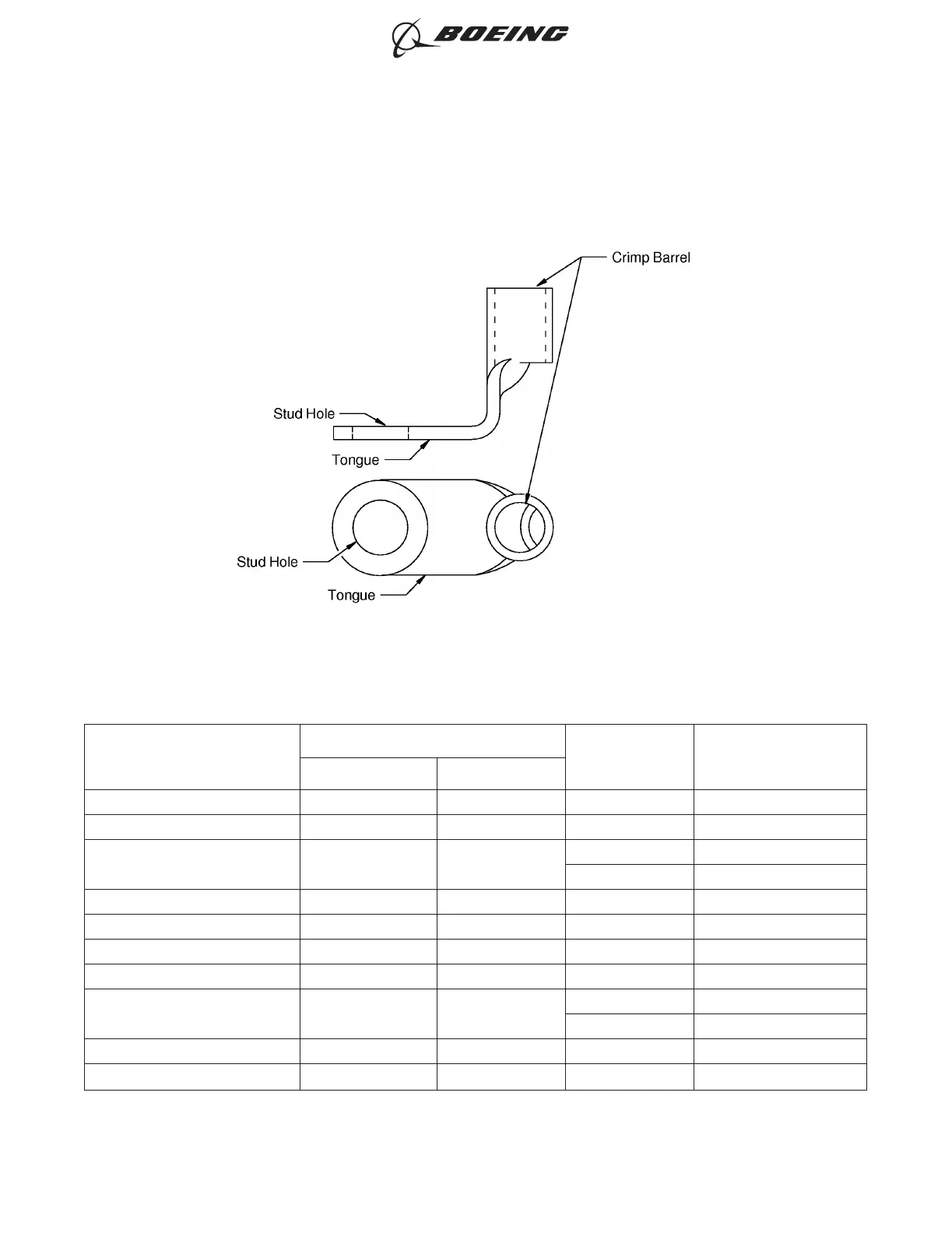

TYPICAL BACT12E 90 DEGREE UPRIGHT TERMINAL LUG
Figure 6
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 20
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
