D. Sealed Splice Configurations for Shielded Wire and Cable - One Shielded Cable to One Shielded
Cable - Shield Kons, Tape, Ties
NOTE: The larger diameter Shield-Kons are no longer manufactured. For an alternative procedure to
assemble a splice for larger diameter shielded cable, refer to Paragraph 13.D. for the
assembly of a sealed splice with shield termination rings, shield terminator bands, tape and
ties.
NOTE: If the correct diameter Shield-Kons are available, this procedure can be used:
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
Refer to Figure 199.
(1) Make a selection of a Temperature Grade B shield sleeve material from Table 57.
Make sure that the shield sleeve material has the smallest diameter that can go on the folded
back shield of the cable.
NOTE: For alternative shield sleeve materials, refer to Subject 20-00-11.
(2) Make a selection of a Temperature Grade B or higher insulation tape from Table 52.
(3) Prepare the shielded cable.
Refer to:
• Figure 200
• Subject 20-00-15 for the outer jacket removal procedures.

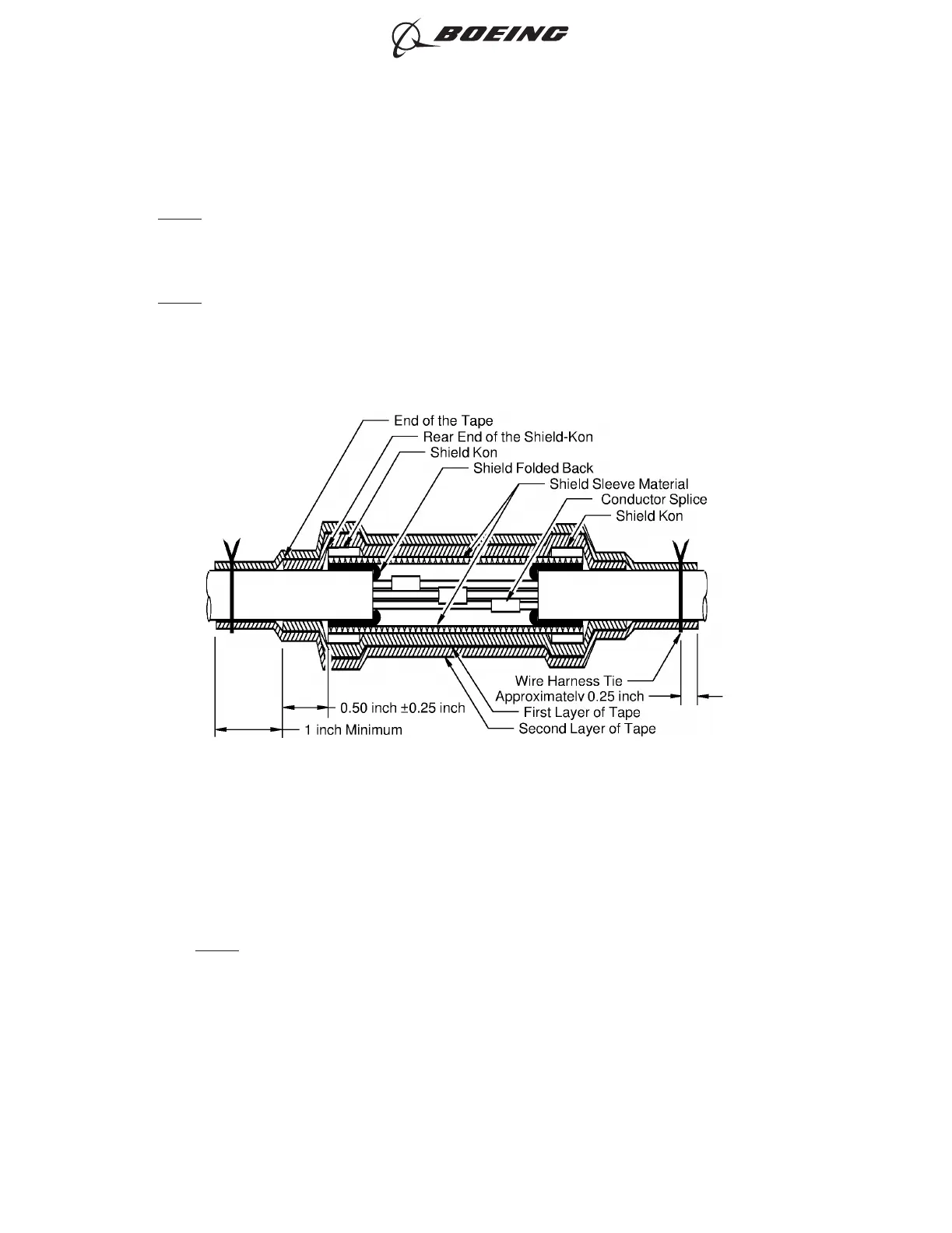

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 199
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 241
Jun 15/2021D6-54446
