Boeing 707 - Mechanical Ferrules

Table 33
ALTERNATIVE TYCO/AMP 6960() AND 2157() BREAKAWAY SPLICE PART NUMBERS
Specified Splice Alternative Splice
Part Number Supplier Part Number Supplier
696087-1 Tyco/AMP 2157581-1 Tyco/AMP
696096-1 Tyco/AMP 2157580-1 Tyco/AMP
I. Mechanical Ferrules
NOTE: A satisfactory alternative for the BACS13S()B ferrule is the MS21981-() ferrule that has the
equivalent size.
NOTE: The nickel plated ferrules are not color coded.
Table 34
FERRULE TEMPERATURE GRADE
Temperature Grade Part Number
B BACS13S()
D BACS13S()NP
Table 35
PART NUMBERS OF INNER AND OUTER FERRULES
Inner Ferrule Outer Ferrule
Boeing Standard Color Boeing Standard Color
BACS13S046B Tin BACS13S128C Blue
BACS13S058B Yellow BACS13S149C Purple
BACS13S063B Red
BACS13S149C Purple
BACS13S156C Yellow
BACS13S071B Green BACS13S156C Yellow
BACS13S080B Blue
BACS13S156C Yellow
BACS13S175C Blue
2447104 S00061543062_V1

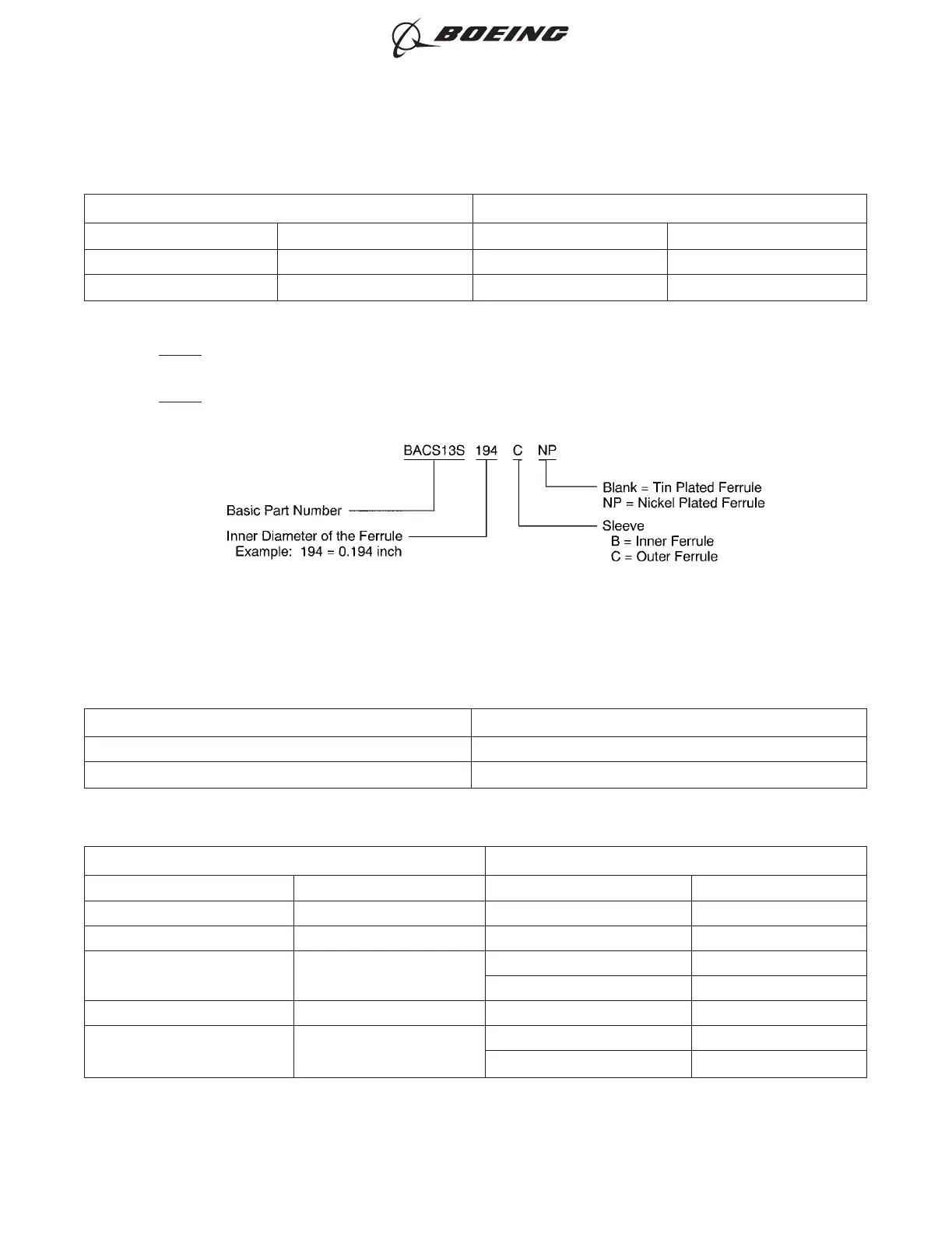

BACS13S FERRULE PART NUMBER STRUCTURE
Figure 7
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 30
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
