3. CABLE PREPARATION - STANDARD CONFIGURATIONS
A. Kit Groups P1N1, P2N1, P3N1 or P4N1 - One Class 1 Cable to One Class 1 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
The Diameter of Cable A must be equal to or less than the Diameter of Cable B.
Refer to Figure 7.
Table 9
CONNECTIONS
Wire Connection Wire Connected to
A1 Splice B1
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) If the splice kit has seal inserts and different size solder sleeves:
(a) Put these components on Cable A in this sequence:
• The outer sleeve
• A seal insert, if a build-up sleeve is not specified for the cable
• The small solder sleeve
• The shield material

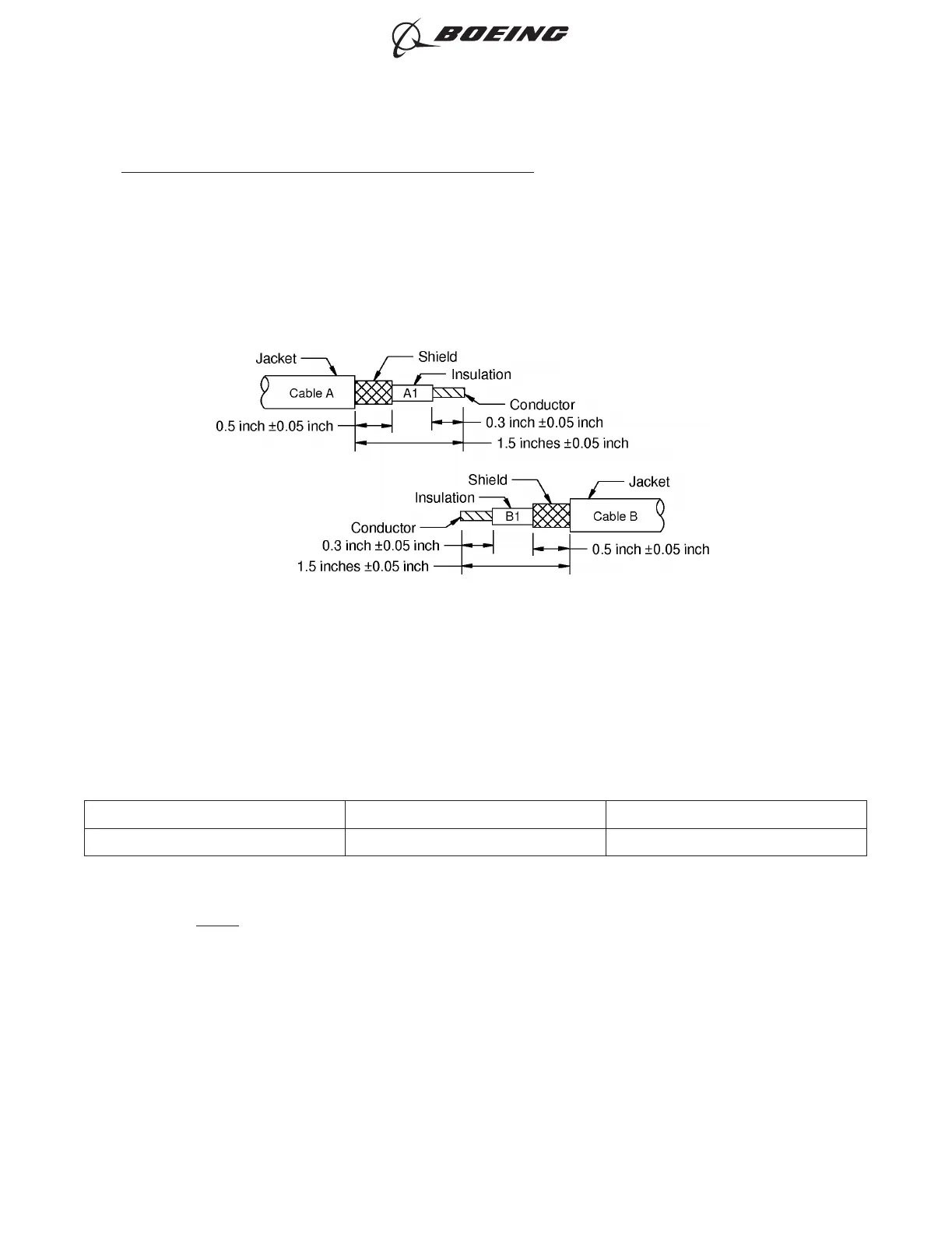

ONE CLASS 1 CABLE TO ONE CLASS 1 CABLE
Figure 7
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 76
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
