L. Kit Group P3N2 - Two Class 2 Cables to Two Class 2 Cables in a Split Configuration
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

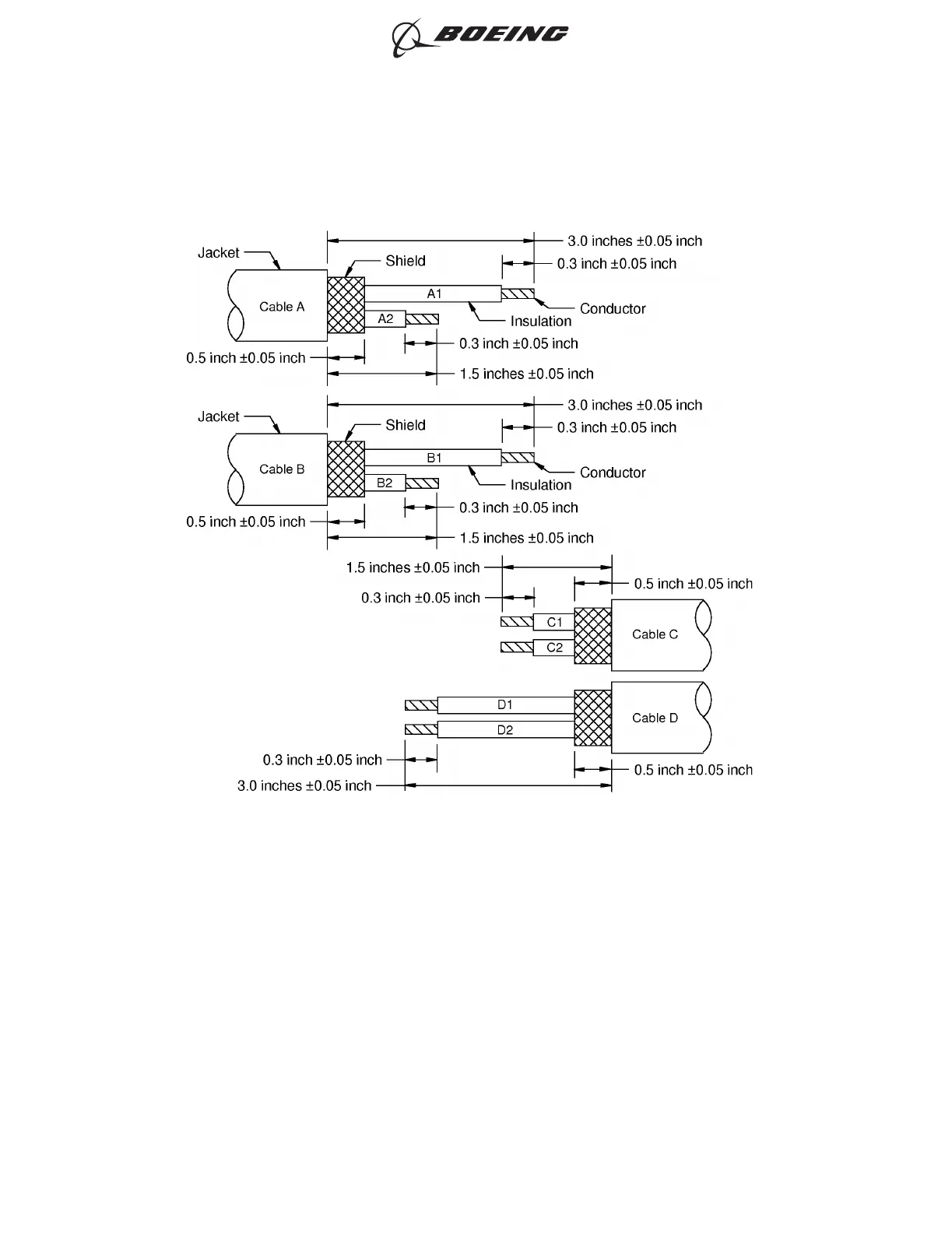

Refer to Figure 18.
TWO CLASS 2 CABLES TO TWO CLASS TWO CABLES
Figure 18
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 102
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
