(16) Assemble a lacing tape wire harness tie on each end of the splice assembly approximately 0.25
inch from the end of the tape. Refer to Subject 20-10-11.
Make sure that the Temperature Grade of the lacing tape is Temperature Grade D.
I. Sealed Splice Configurations for Shielded Wire and Cable for High Temperature - One Shielded
Cable to One Shielded Cable - Mechanical Ferrules, Tape, Sleeve
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
Refer to Figure 187.
(1) Make a selection of a Temperature Grade D shield sleeve material from Table 57.
Make sure that the shield sleeve material has the smallest diameter that can go on the folded
back shield of the cable.
NOTE: For alternative shield sleeve materials, refer to Subject 20-00-11.
(2) Make a selection of two sets of Temperature Grade D inner ferrules and outer ferrules.
Refer to:
• Figure 7 for the ferrule size
• Table 34 for the Temperature Grade
• Table 35 for the ferrule part numbers.
Make sure that:
• The inner ferrule is the smallest ferrule that can move freely on the outer jacket

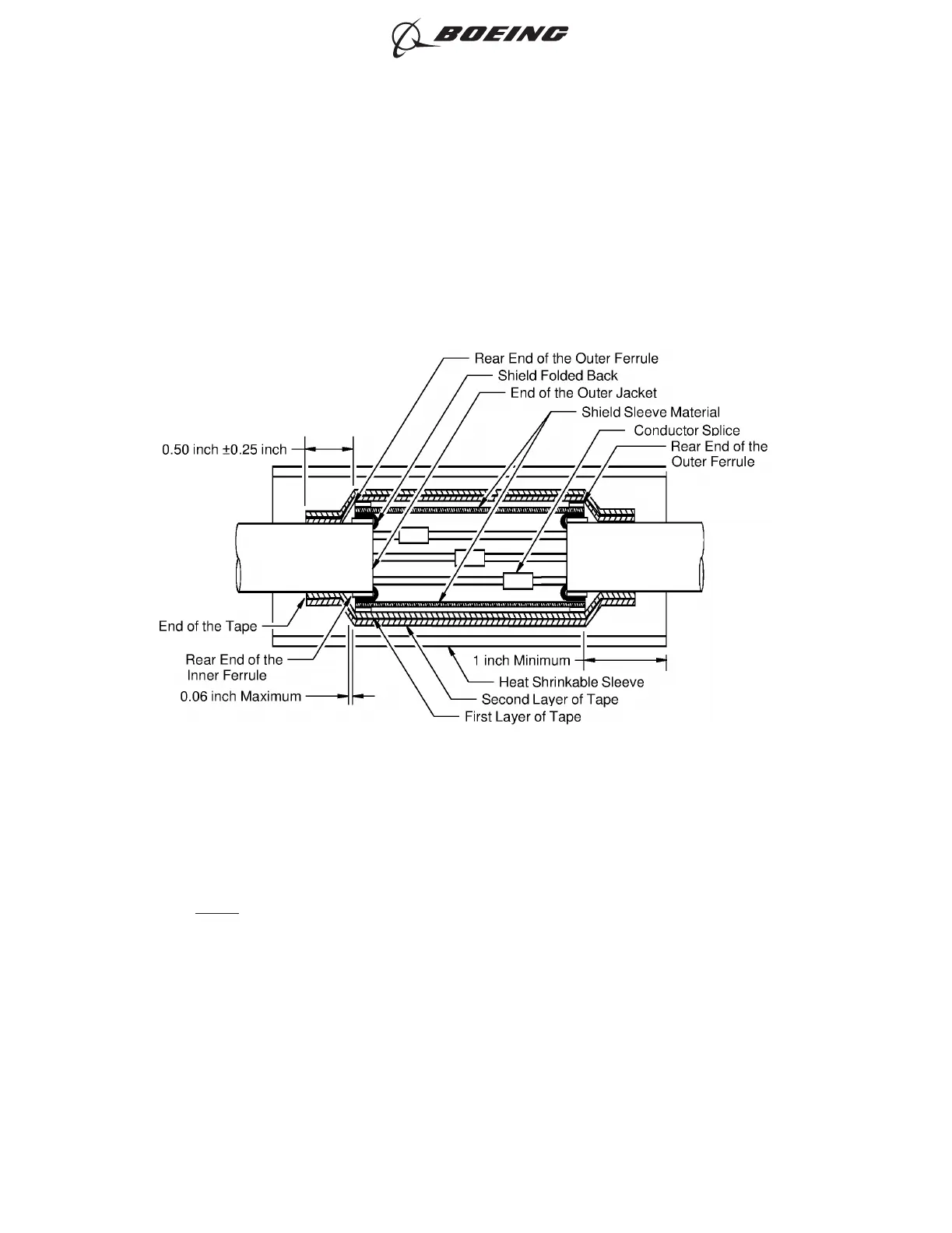

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 187
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 229
Jun 15/2021D6-54446
