Boeing 707 - Kit Groups P1 N1, P2 N1, P3 N1 or P4 N1 - Two Class 1 Cables to Two Class 1 Cables

E. Kit Groups P1N1, P2N1, P3N1 or P4N1 - Two Class 1 Cables to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
The combined diameter of Cable A and Cable B must be equal to or less than the combined diameter
of Cable C and Cable D

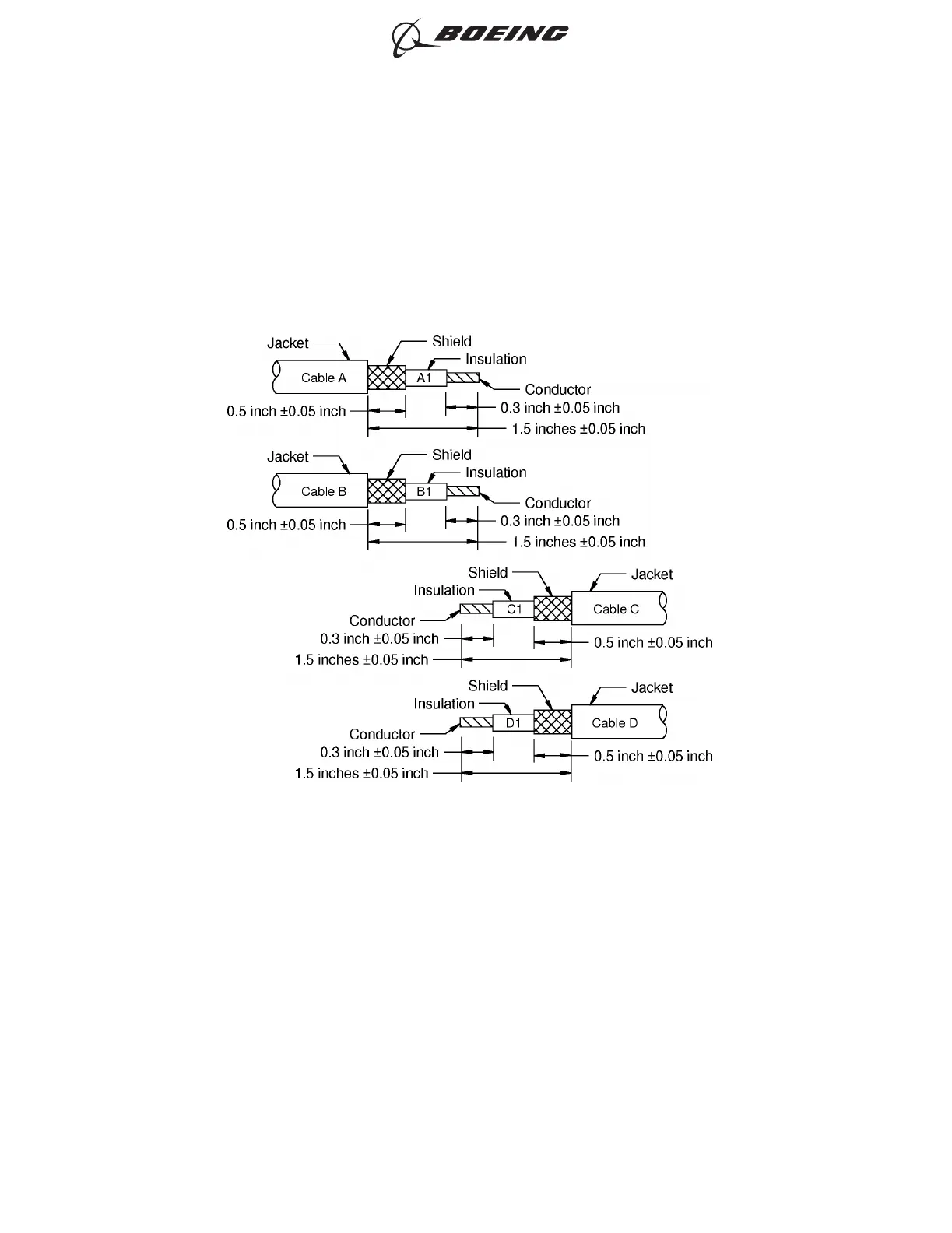

Refer to Figure 11.
2449577 S00061545738_V1
TWO CLASS 1 CABLES TO TWO CLASS 1 CABLES
Figure 11
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
