Make sure that the small end of the solder sleeve is put on the cables first.
(4) Put a seal sleeve on Wire A1.
C. Kit Groups T1( )1, T2( )1, T3( )1 or T4( )1 - One Class 1 Cable to One Class 2 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 9.
Table 11
CONNECTIONS
Wire Connection Wire Connected to
A1 Splice B1 and B2
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
(2) Put these splice assembly components on Cable A in this sequence:
• The outer sleeve
• A solder sleeve
• The shield material
Make sure that the small end of the solder sleeve is put on the cable first.
(3) Put the other solder sleeve on Cable B.
Make sure that the small end of the solder sleeve is put on the cable first.

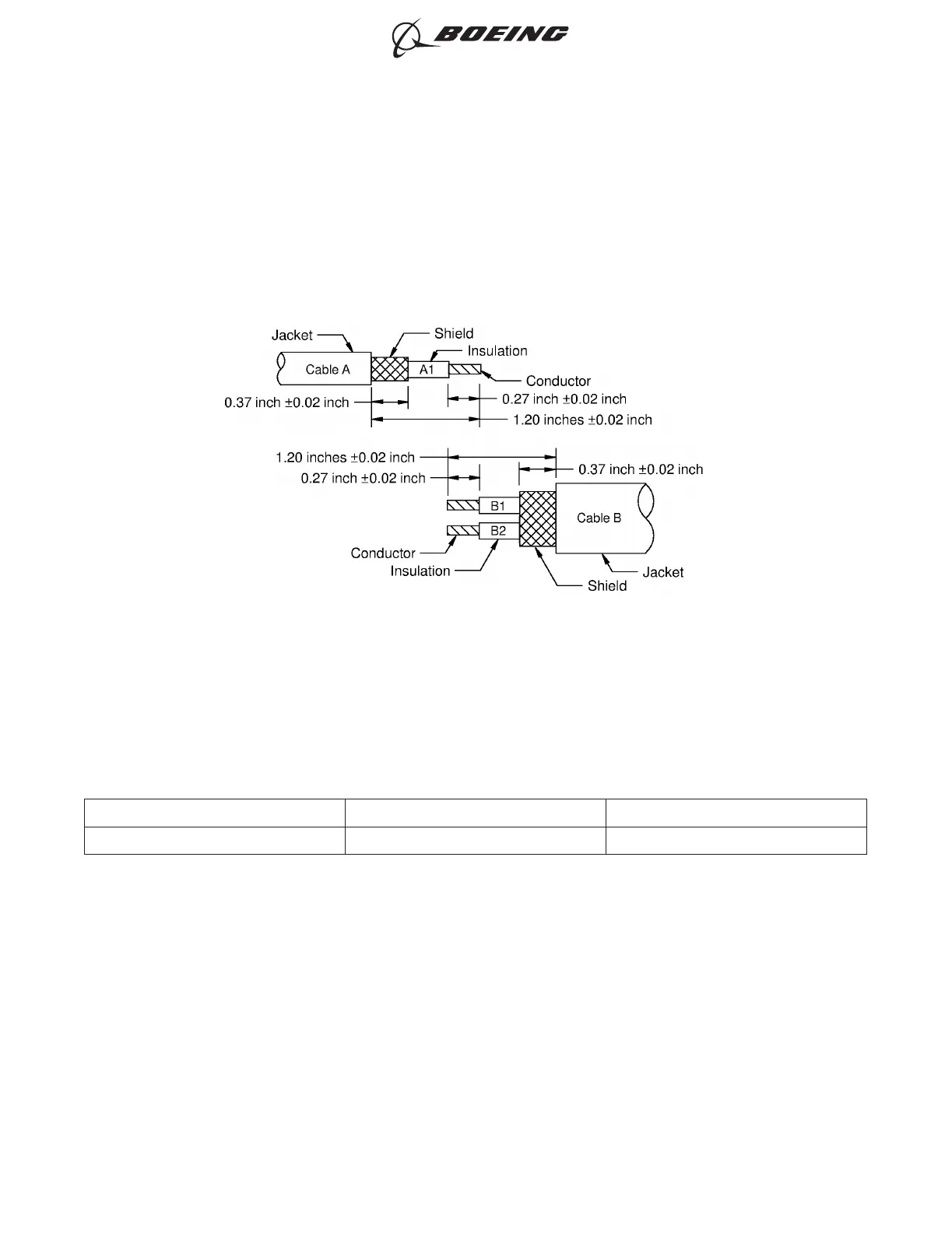

ONE CLASS 1 CABLE TO ONE CLASS 2 CABLE
Figure 9
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 28
Jun 15/2021D6-54446
