Boeing 707 - One Class 2 Shielded Cable to One Class 2 Shielded Cable

Table 114 CABLE TRIM DIMENSIONS (Continued)
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
E C1
D1 0.28
±0.02D2 0.70
D3 1.08
F C1
D1 0.28
±0.02D2 0.70
D3 1.08
G C1
D1 0.28
±0.02D2 0.70
D3 1.08
H C1
D1 0.28
±0.02D2 0.70
D3 1.08
G. Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - One Class
2 Shielded Cable to One Class 2 Shielded Cable
Table 115
SPLICE KITS FOR ONE CLASS 2 SHIELDED CABLE TO ONE CLASS 2 SHIELDED CABLE
Jacket Maximum
O.D.
Shield Minimum
O.D.
Conductor CAU Range Solder Shield Splice Kit
Minimum Maximum Part Number Supplier
0.15 0.08 3 15 D-150-0174 Tyco/Raychem
0.18 0.10 8 27 D-150-0175 Tyco/Raychem
0.34 0.19 19 67 D-150-0177 Tyco/Raychem
2445815 S00061544081_V1

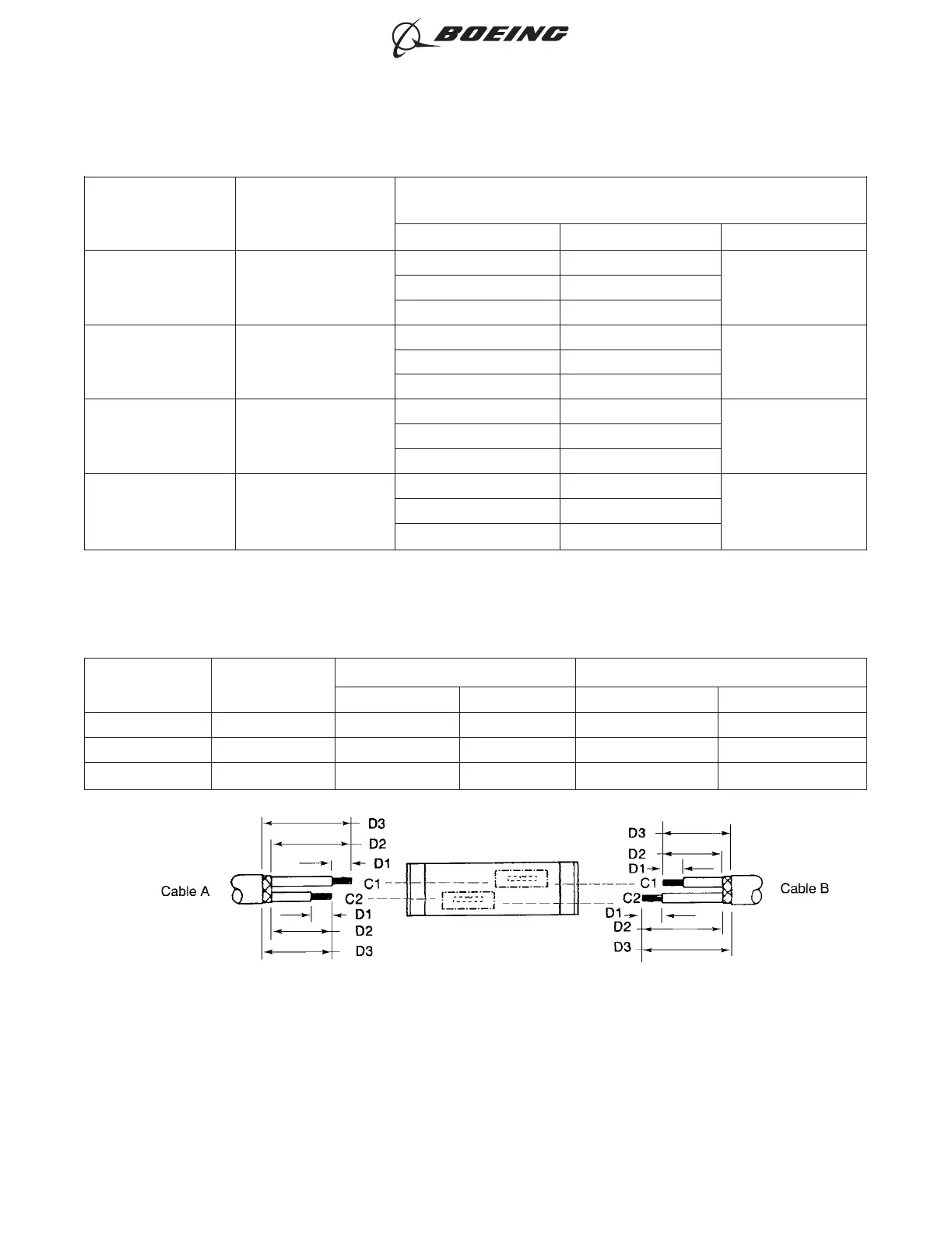

ONE CLASS 2 SHIELDED CABLE TO ONE CLASS 2 SHIELDED CABLE
Figure 281
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 306
Jun 15/2021D6-54446
