Table 114
CABLE TRIM DIMENSIONS
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
A C1
D1 0.28
±0.02D2 0.70
D3 1.08
B C1
D1 0.28
±0.02D2 0.70
D3 1.08
C C1
D1 0.28
±0.02D2 0.70
D3 1.08
D C1
D1 0.28
±0.02D2 0.70
D3 1.08
2445814 S00061545575_V1

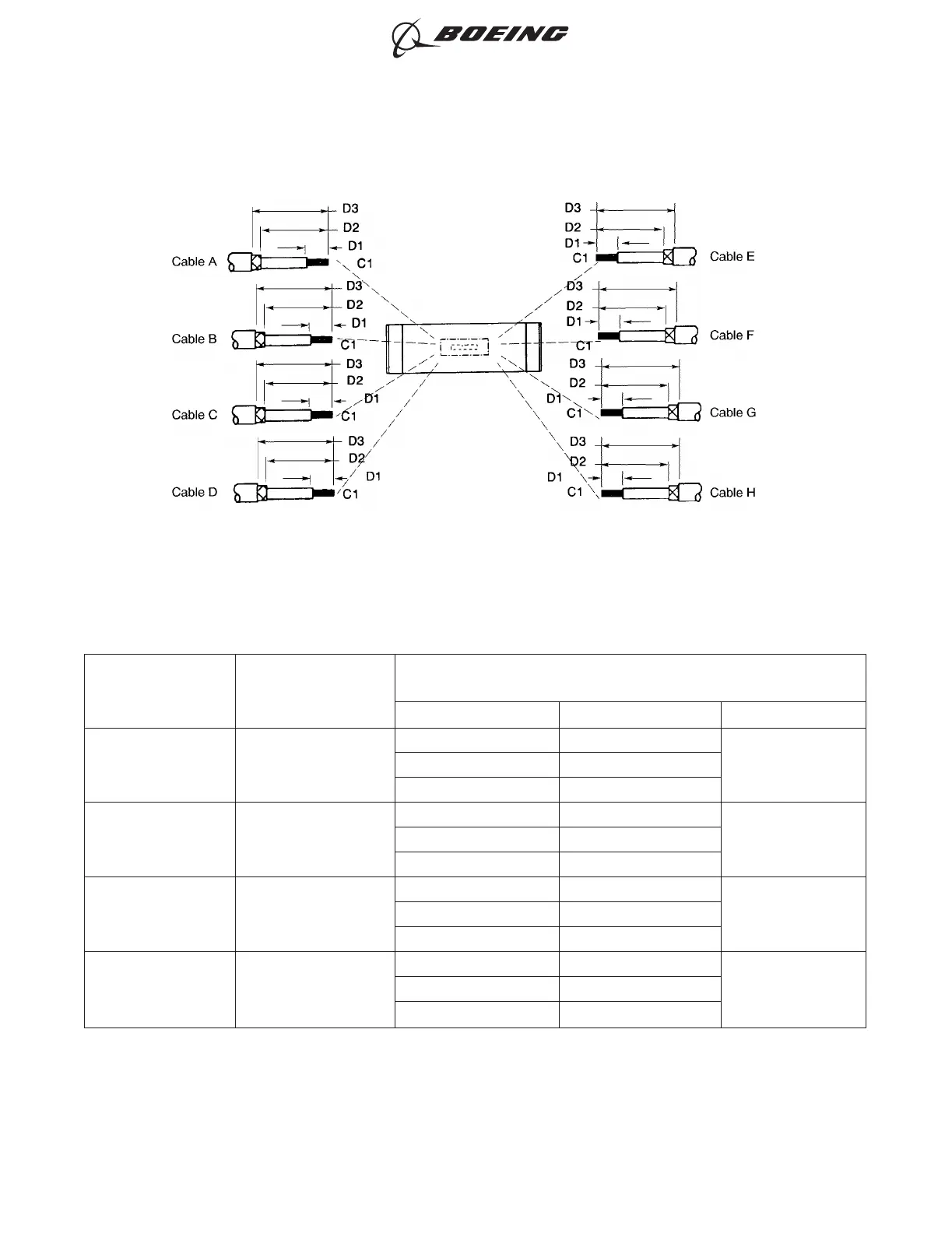

FOUR SHIELDED WIRES TO FOUR SHIELDED WIRES
Figure 280
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 305
