Boeing 707 - Sealed Splice Configurations for Shielded Wire and Cable - Two Shielded Wires to Two Shielded Wires - Mechanical Ferrules, Tape, Sleeve

G. Sealed Splice Configurations for Shielded Wire and Cable - Two Shielded Wires to Two Shielded
Wires - Mechanical Ferrules, Tape, Sleeve
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
Refer to Figure 160.
(1) Make a selection of a Temperature Grade B shield sleeve material from Table 57.
Make sure that the shield sleeve material has the smallest diameter that can go on the folded
back shields of the two wires.
NOTE: For alternative shield sleeve materials, refer to Subject 20-00-11.
(2) Make a selection of two sets of Temperature Grade B or higher inner ferrules and outer ferrules.
2447136 S00061545517_V1

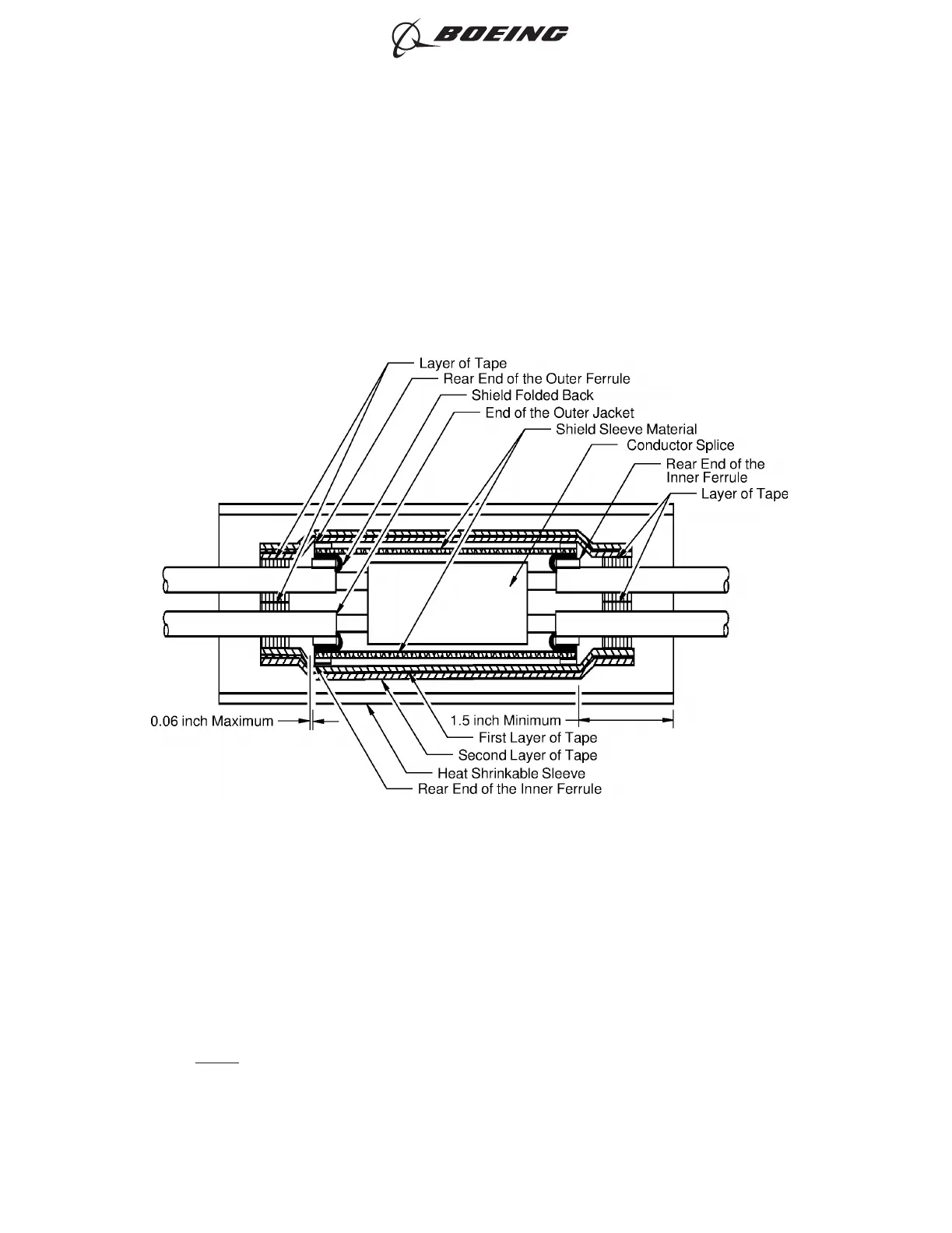

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 160
ASSEMBLY OF SPLICES
