I. Assembly of BACT12AV and AMP Solid Nickel Terminal Lugs
Refer to Paragraph 1.E. and to Paragraph 1.I. and for the description of the BACT12AV and AMP solid
nickel, high temperature terminal lugs.
Table 57
CRIMP TOOLS FOR BACT12AV AND AMP SOLID NICKEL TERMINAL LUGS
Crimp Barrel
Size
Wire Size
Crimp Tool
Basic Unit Holder Cam Head Die
22-18
22-18
189721-1
(Battery powered)
356302-1 - 356744-1 -
189721-1
(Battery powered)
356303-1 356438-1 1213850-1 -
314590-() - - - 314542-1
314590-() - - - 314542-2
314700-() - - - 314542-1
314700-() - - - 314542-2
46673 - - - -
69010 - - 45175 -
18 W400-5060 - - - 22-18 AWG

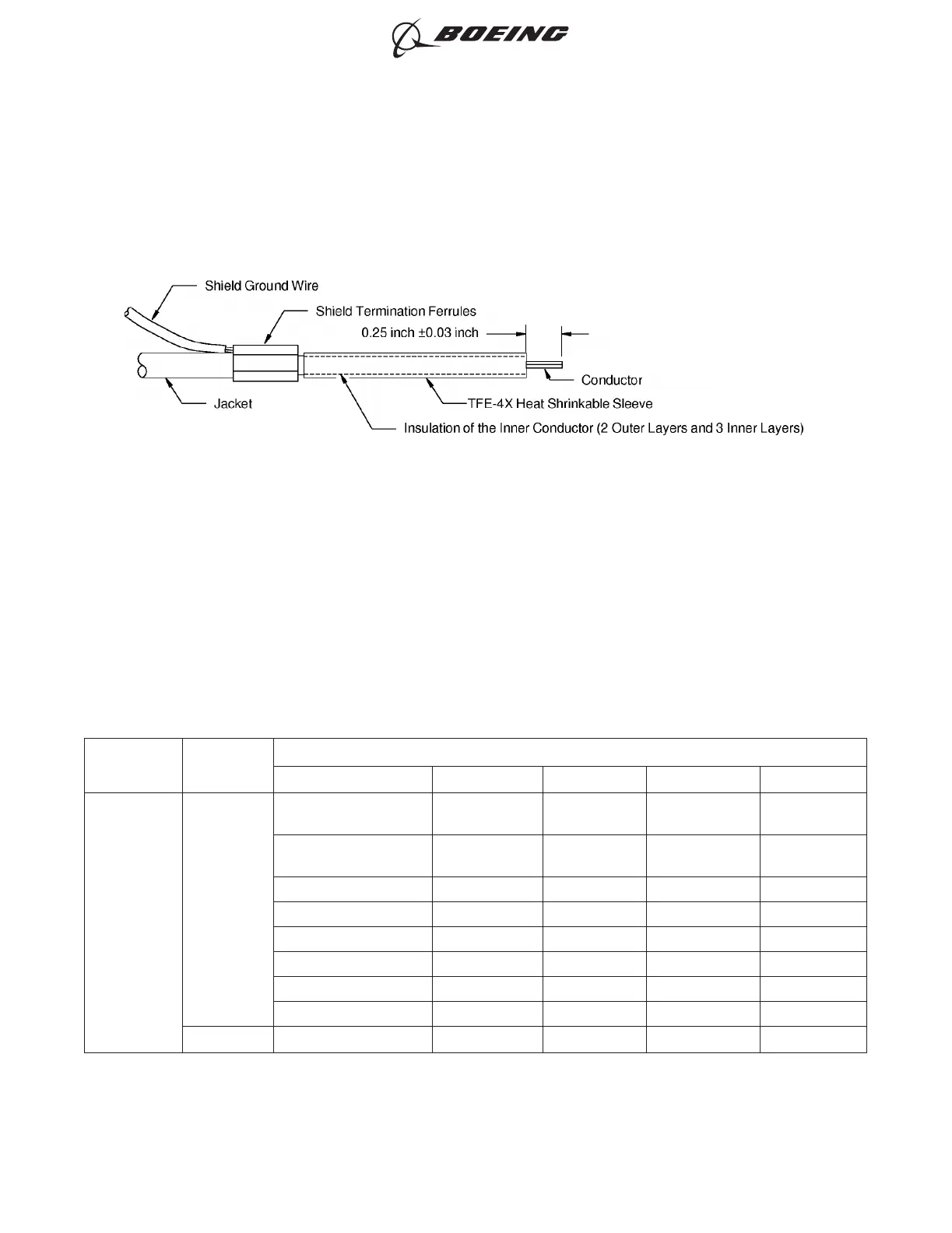

POSITION OF THE SHIELD TERMINATION FERRULES AND THE HEAT SHRINKABLE SLEEVE
Figure 21
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 70
Feb 15/2016D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
