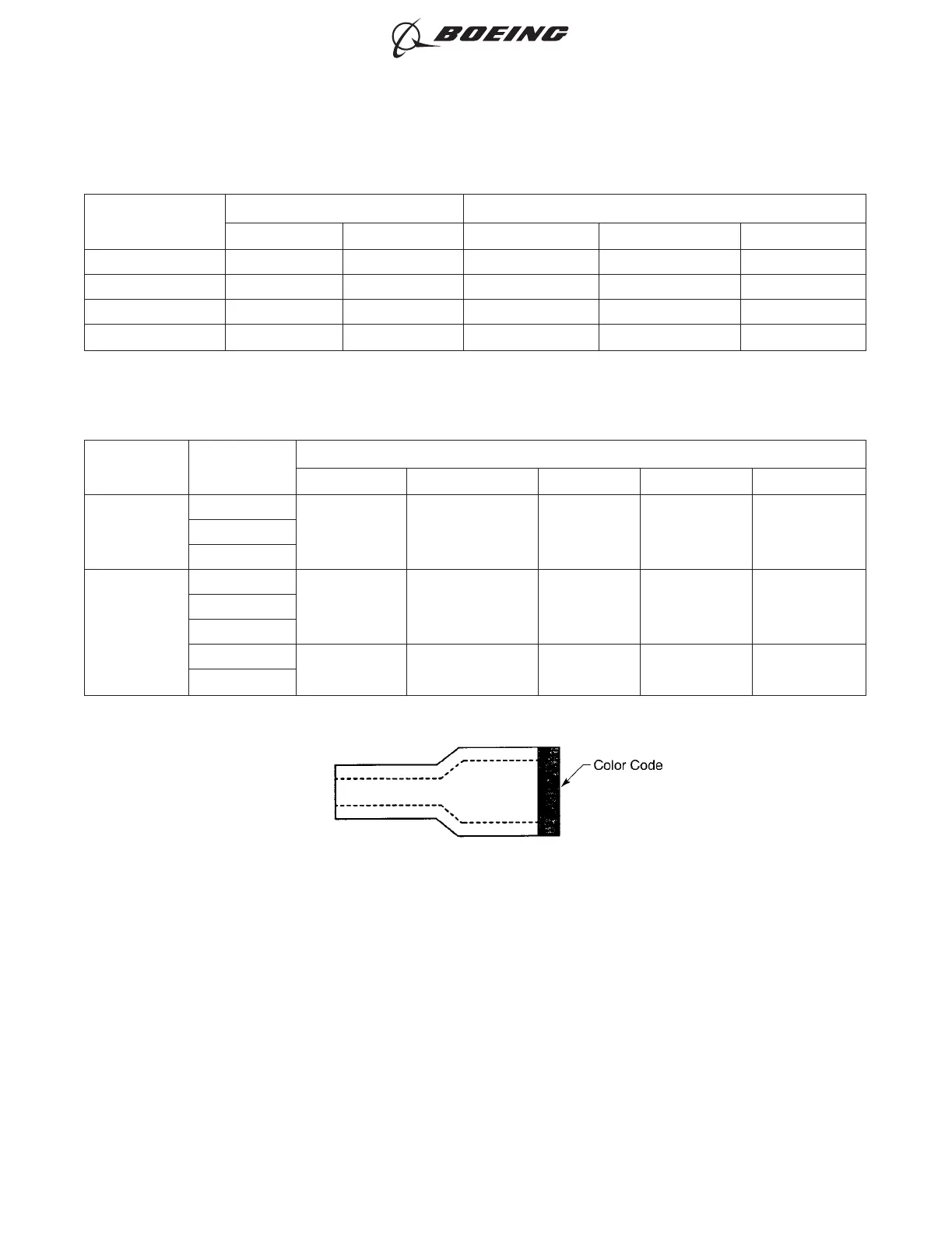

Boeing 707 - Circular Area Units of Adapters

Table 4
CAU OF PARALLEL SPLICES
Crimp Barrel Size
CAU Splice
Minimum Maximum Type Part Number Supplier
22-16 7 24 Uninsulated 34130 Tyco/AMP
16-14 15 51 Uninsulated 34137 Tyco/AMP
12-10 43 138 Uninsulated 34138 Tyco/AMP
300 MCM 2750 3250 Uninsulated 324448 Tyco/AMP
D. Circular Area Units of Adapters
Table 5
CAU OF SPLICE ADAPTERS
Crimp Barrel
Size
Wire Size
(AWG)
Splice Adapter
CAU Boeing Standard Color Code Part Number Supplier
16-14
22
37 BACA14AN1 Red 327635 Tyco/AMP20
18
12-10
22
100 BACA14AN2 Red 327636 Tyco/AMP20
18
16
94 BACA14AN3 Blue 327637 Tyco/AMP
14
2445876 S00061545813_V1
BACA14AN() SPLICE ADAPTER
Figure 2
ASSEMBLY OF TERMINALS AND SPLICES UNDER SPECIAL CONDITIONS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-22
Page 7
