Boeing 707 - Installation of BACT12 M( ) APU and IDG Generator Terminals

L. Installation of BACT12M( ) APU and IDG Generator Terminals
Table 17
INSTALLATION HARDWARE FOR BACT12M APU AND IDG COPPER TERMINALS
Hardware Part Number Supplier
Nut, Self-Locking
BACN10HY6A Boeing
BACN10HY6AM
BACN10YR6CM Boeing
Lock Washer
MS35338-160 QPL
BACW10EC6C Boeing
Flat Washer
BACW10BN6UP Boeing
BACW10BP6APU Boeing
Table 18
INSTALLATION TORQUE FOR BACT12M( ) APU AND IDG GENERATOR TERMINALS
Generator Terminals
Torque
Foot Pounds Inch Pounds
Minimum Maximum Minimum Maximum
Power Output 12 14 144 168
(1) Install a single terminal on a stud, refer to Figure 24 and Table 16/INSTALLATION TORQUE FOR
FUEL QUANTITY PROBE TERMINALS.
LOCK WASHER
BACW10EC6C OR
MS35338-160
SELF-LOCKING NUT
BACN10HY6A OR
BACN10HY6AM OR
BACN10YR6CM
FLAT WASHER
BACW10BP6APU OR
BACW10BN6UP
2566388 S0000614073_V1

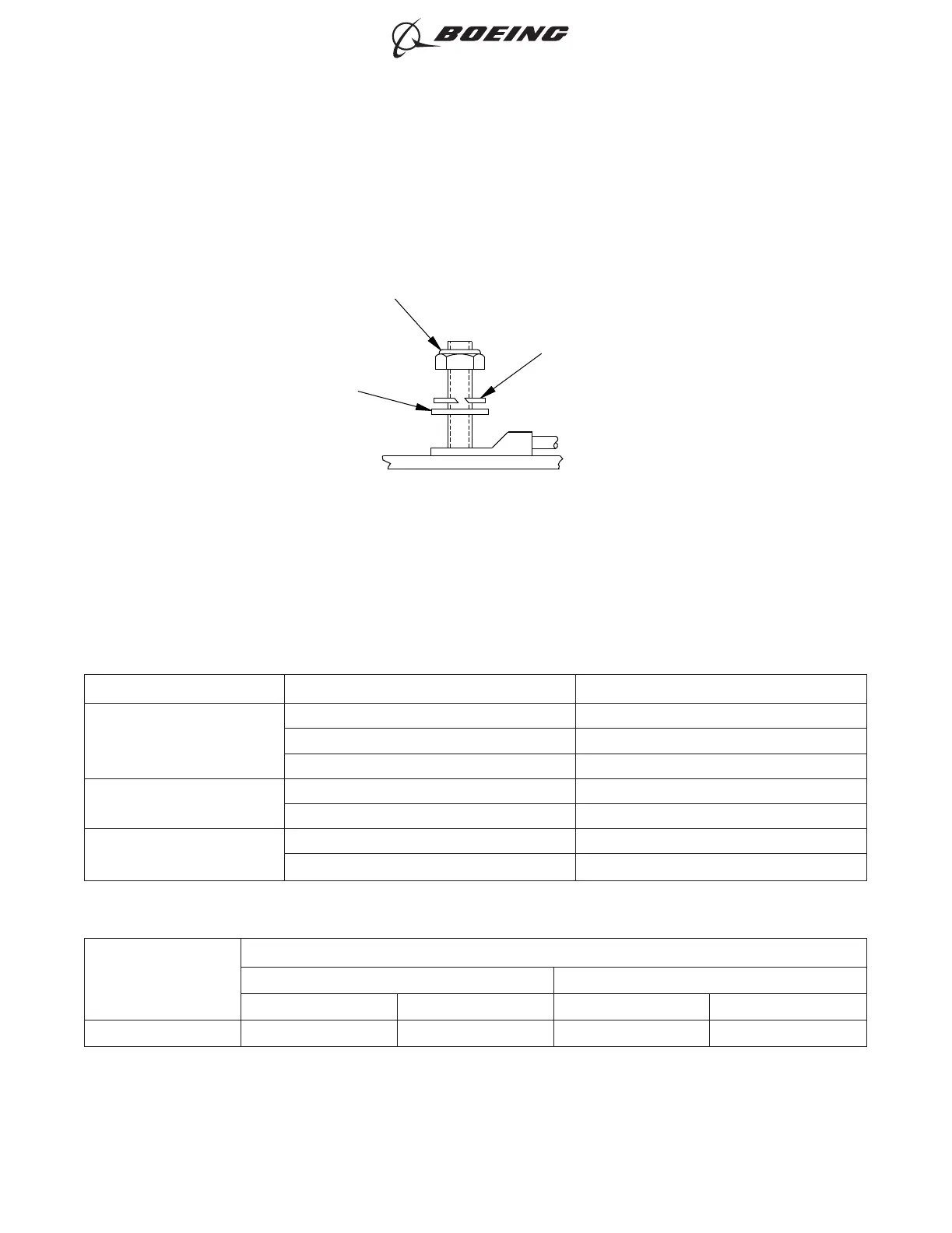

INSTALLATION OF A SINGLE TERMINAL
Figure 24
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 30
Jun 15/2021D6-54446
