M. Sealed Splice Configurations for Unshielded Wires and Cables - In-Line Resistor and Diode
(1) Assemble in-line resistors and diodes to single conductor wires in accordance with Figure AAA,
Table BBB and as follows:
Table 77
SPLICE PART NUMBERS FOR IN-LINE RESISTORS AND DIODES
Resistor or Diode Wire Gauge Splice
( )1N4960 18-16 D-609-07
( )1N5552 24-20 D-609-06
( )1N5552 18-16 D-609-07
( )1N5553 24-20 D-609-06
( )1N5553 18-16 D-609-07
( )1N5618 26-20 D-609-06
( )1N5622 26-20 D-609-06
( )1N750A-1 24-20 D-609-06
OY( )KE 24-20 D-609-06
OY( )KE 18-16 D-609-07
RLR05( ) 26-20 D-609-06
RLR07( ) 26-20 D-609-06
RLR20( ) 24-20 D-609-06
RLR20( ) 18-16 D-609-07
RLR32( ) 24-20 D-609-06
RLR32( ) 18-16 D-609-07
RLR62( ) 24-20 D-609-06
RLR62( ) 18-16 D-609-07
RNC55( ) 26-20 D-609-06
RNC60( ) 26-20 D-609-06
RNC65( ) 26-20 D-609-06
0.13 inch to 0.26 inch
DWP-125 Heat Shrinkable Sleeve
Resistor or Diode
Identification Sleeve
Splice
2579100 S0000620741_V1

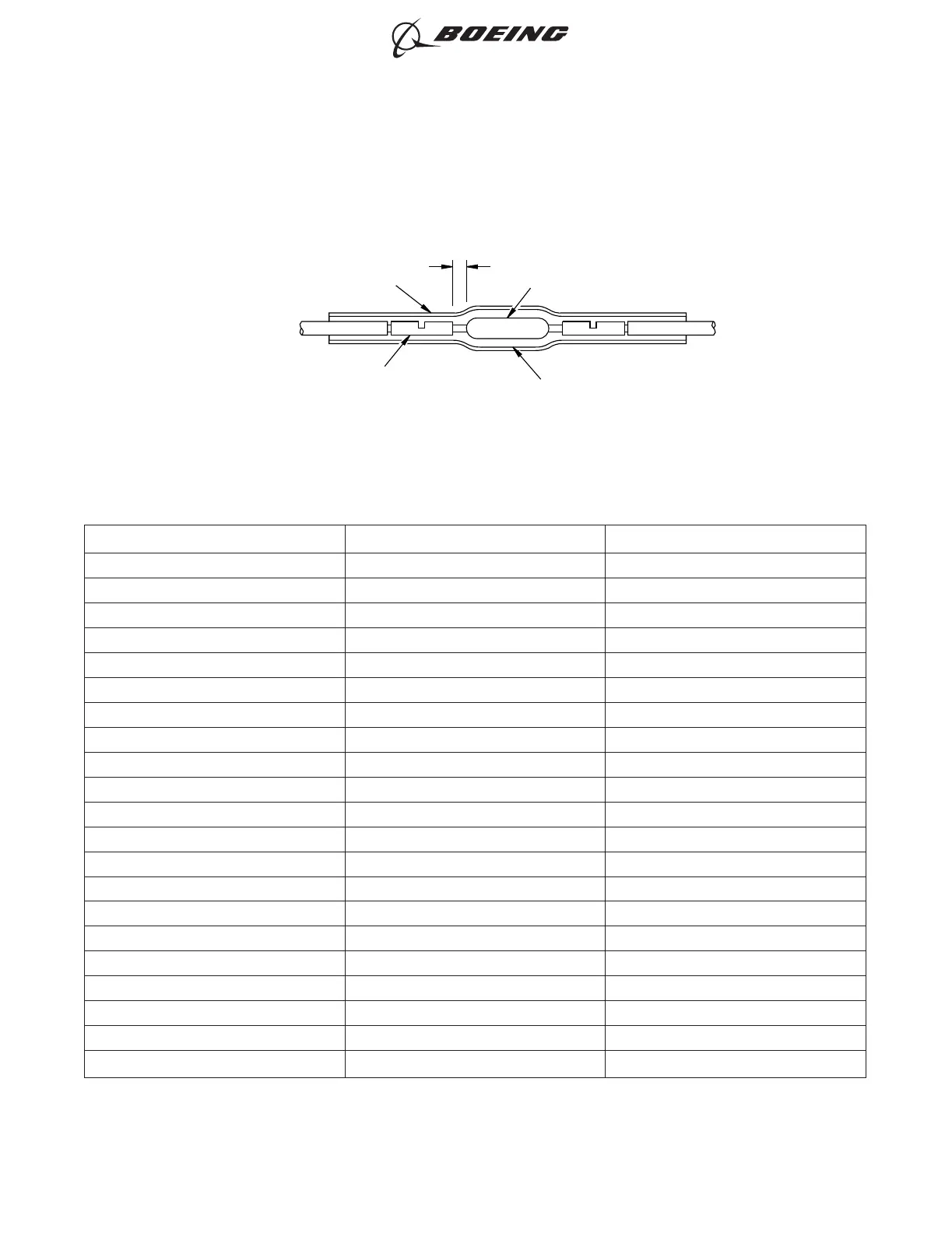

ASSEMBLING IN-LINE RESISTORS OR DIODES
Figure 92
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 117
Jun 15/2021D6-54446
