Boeing 707 - Splice Kit Component Part Numbers

B. Splice Kit Component Part Numbers
Table 2
SHIELDED SPLICE KIT COMPONENT PART NUMBERS
Splice Kit
Kit Component
Type Part Number Quantity Supplier
BACS52T1N1B
Conductor Splice BACS52K1N 1 Tyco
Shield Material BACS13DK1 1 Tyco
Sleeve, Outer BACT63E3E 1 Tyco
Sleeve, Seal BACS13DJ1 1 Tyco
Solder Sleeve D-208-01 2 Tyco
BACS52T1N2C
Conductor Splice BACS52K1N 2 Tyco
Seal Insert BACS13DL3 2 Tyco
Shield Material BACS13DK4 1 Tyco
Sleeve, Outer BACT63E4G 1 Tyco
Sleeve, Seal BACS13DJ1 2 Tyco
Solder Sleeve D-208-02 2 Tyco
2449820 S00061545776_V1

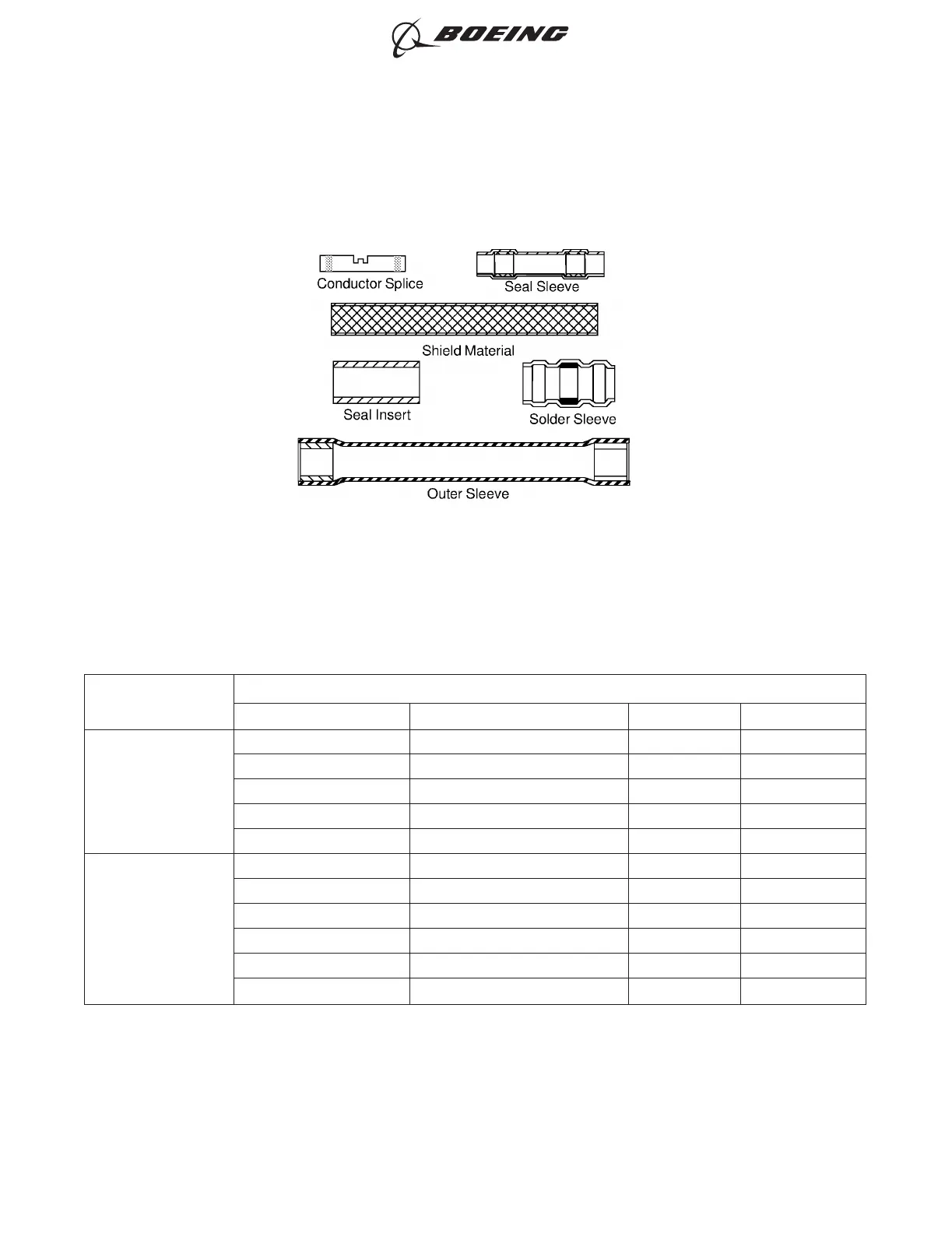

SPLICE KIT COMPONENTS
Figure 2
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 5
Oct 15/2020D6-54446
