G. Sealed Splice Configurations for Unshielded Wires and Cables - One or Two Wires to One or
Two Wires - Splice Kit
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
(1) If the splice kit part number is not specified, make a selection of a sealed splice kit with 1 hole in
the wire seal from Table 19.
Make sure that:
• The sleeve can make a seal on the number of wires in one end of the splice
• The splice kit has the smallest CAU range that can accept the total CAU of the conductor.
Refer to Paragraph 1.D. for the procedure to calculate the CAU of the conductor.
(2) Find the part number of the butt splice in the splice kit from Table 20.
(3) Find the crimp barrel size of the splice from Table 20.
(4) Make a selection of a crimp tool from Table 45.
(5) Put the sleeve on the one or two wires of one end of the splice assembly.
(6) Remove the necessary length of insulation from the end of each wire.
Refer to:
• Figure 62
• Table 73 for the insulation removal length
• Subject 20-00-15 for the insulation removal procedures.

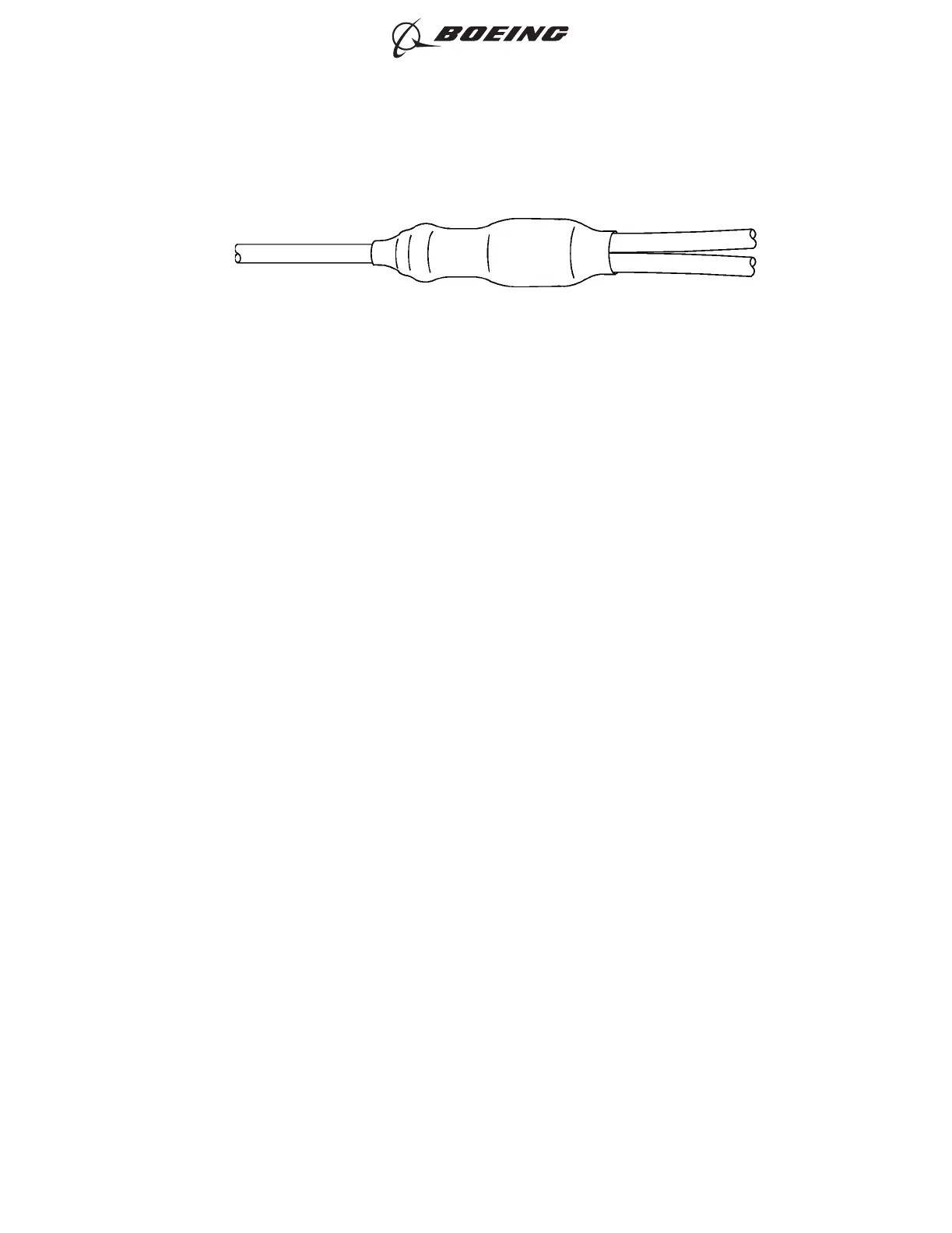

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 61
