Boeing 707 - Kit Groups P1 N2, P2 N2 or P3 N2 - One Class 2 Cable to Two Class 2 Cables

J. Kit Groups P1N2, P2N2 or P3N2 - One Class 2 Cable to Two Class 2 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 16.
2449582 S00061545743_V1

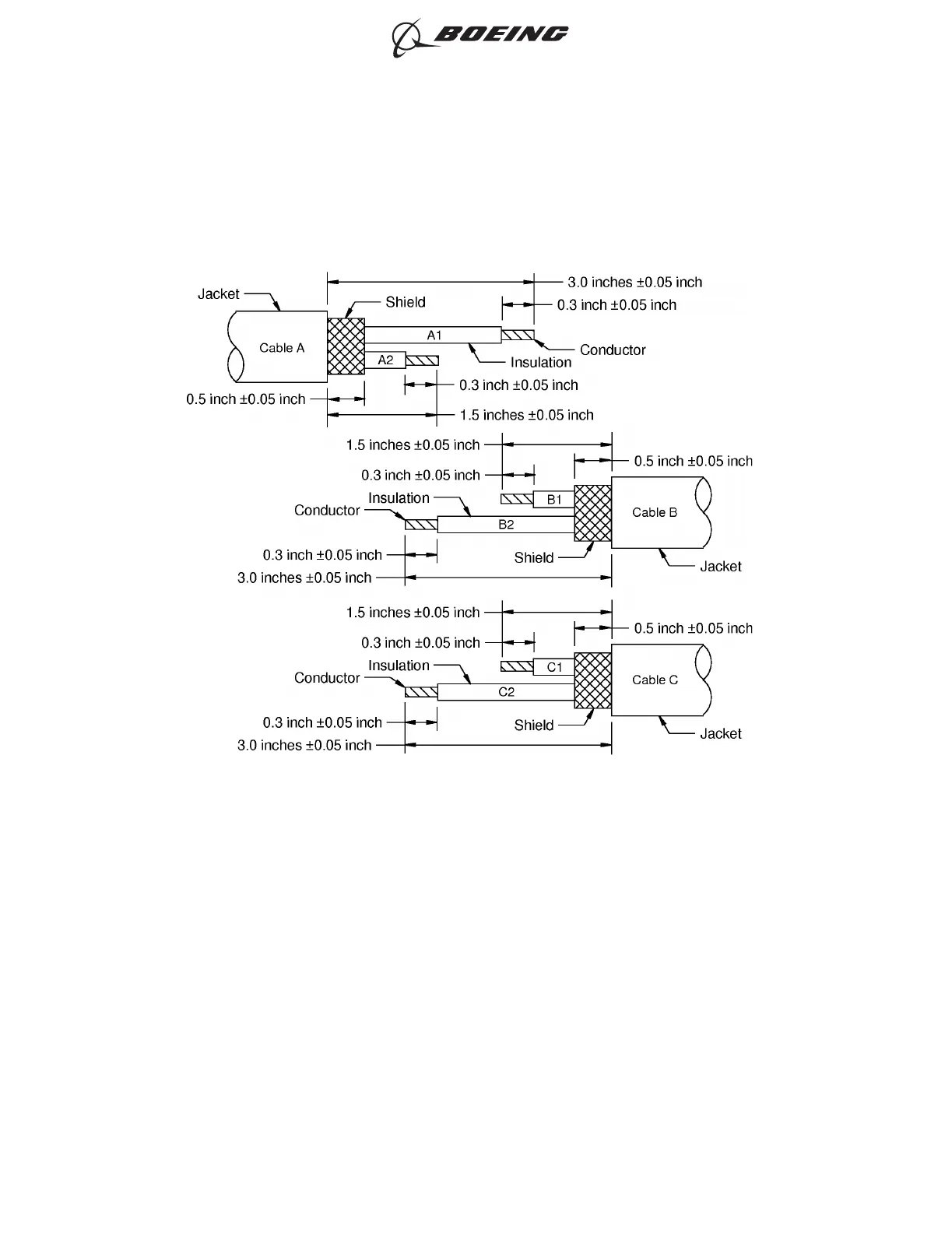

ONE CLASS 2 CABLE TO TWO CLASS 2 CABLES
Figure 16
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 96
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
