Boeing 707 - Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - One Shielded Wire to One Shielded Wire and One Unshielded Wire

Make sure that the sleeve and approximately 1.0 inch of the cable jacket on each side of the
splice assembly make an overlap.
D. Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - One
Shielded Wire to One Shielded Wire and One Unshielded Wire
Table 109
SPLICE KITS FOR ONE SHIELDED WIRE TO ONE SHIELDED WIRE
Jacket Maximum
O.D.
Shield Minimum
O.D.
Conductor CAU Range Solder Shield Splice Kit
Minimum Maximum Part Number Supplier
0.12 0.06 3 15 D-150-0168 Tyco/Raychem
0.15 0.08 8 27 D-150-0169 Tyco/Raychem
0.18 0.10 19 67 D-150-0170 Tyco/Raychem
0.22 0.14 43 138 D-150-0272 Tyco/Raychem
2448147 S00061545572_V1

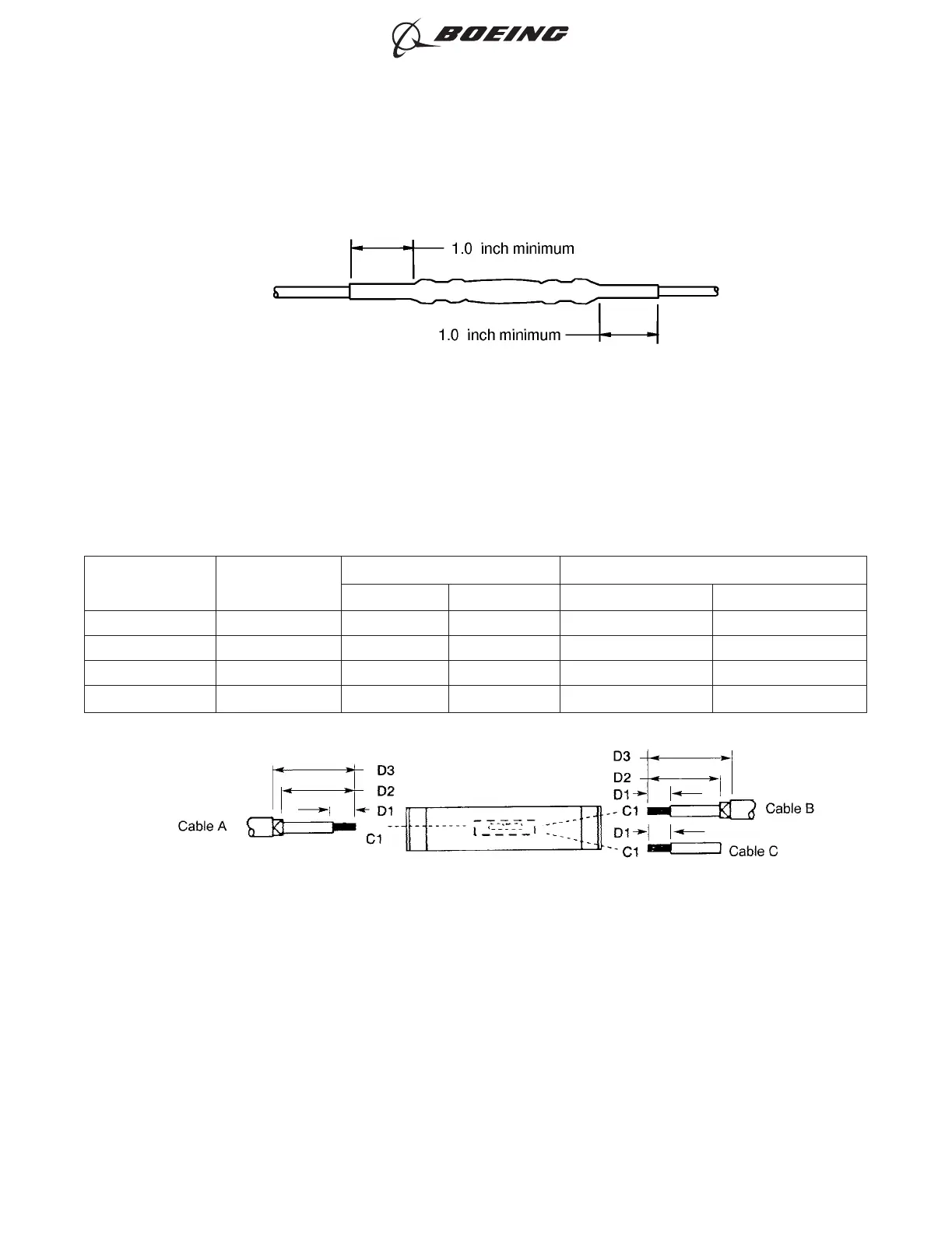

POSITION OF THE LARGER HEAT SHRINKABLE SLEEVE
Figure 277
2445812 S00061545573_V1
ONE SHIELDED WIRE TO ONE SHIELDED WIRE AND ONE WIRE
Figure 278
ASSEMBLY OF SPLICES
