G. Internal Conductor Splice for a Shielded Wire or Cable - Two Wires to Two Wires for High
Temperature - Tape
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
Refer to Figure 142.
(1) Make a selection of a butt splice from Table 15.
Make sure that the splice has the smallest CAU range that can accept the total CAU of the
conductors. Refer to Paragraph 1.D. for the procedure to calculate the CAU of the conductor.
(2) Find the crimp barrel size of the splice from Table 15.
(3) Make a selection of a crimp tool from Table 46.
(4) Make a selection of a Temperature Grade D insulation tape from Table 52.
Make sure that the tape has a width of 0.5 inch minimum to 1.0 inch maximum.
(5) Remove the necessary length of insulation from the end of each wire.
Refer to:
• Figure 143
• Table 100 for the insulation removal length
• Subject 20-00-15 for the insulation removal procedures.

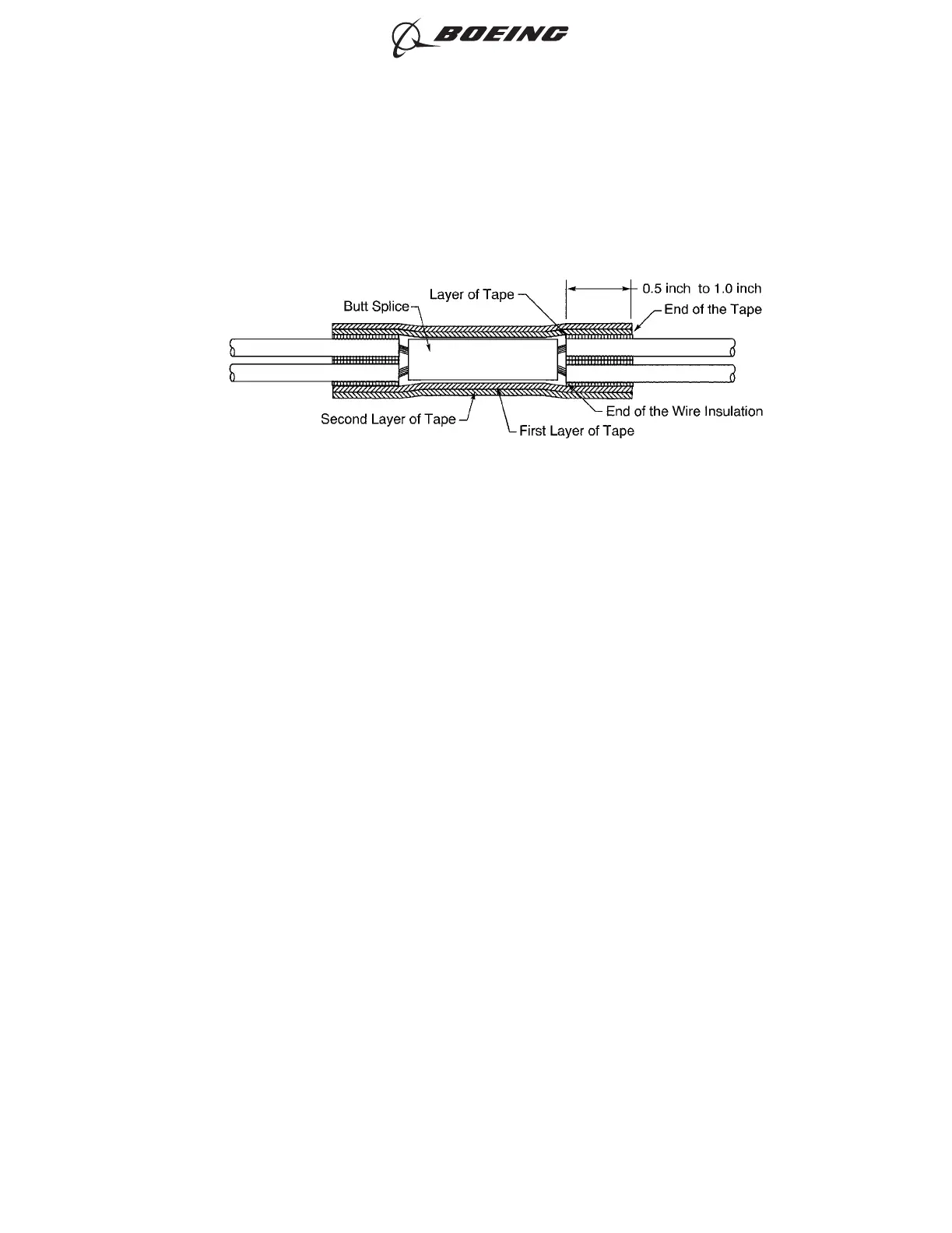

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 142
ASSEMBLY OF SPLICES
