B. Sealed Splice Configurations for Shielded Wire and Cable for High Temperature - One Shielded
Wire to One Shielded Wire - Shield Termination Rings, Shield Terminator Bands, Tape, Ties
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
Refer to Figure 209:
(1) Make a selection of two M85049/93-() shield termination rings. Refer to Subject 20-00-11.
Make sure that:
• The shield termination rings have the smallest diameter that can go on the outer jacket of
the wire
• Both shield termination rings are the same size.

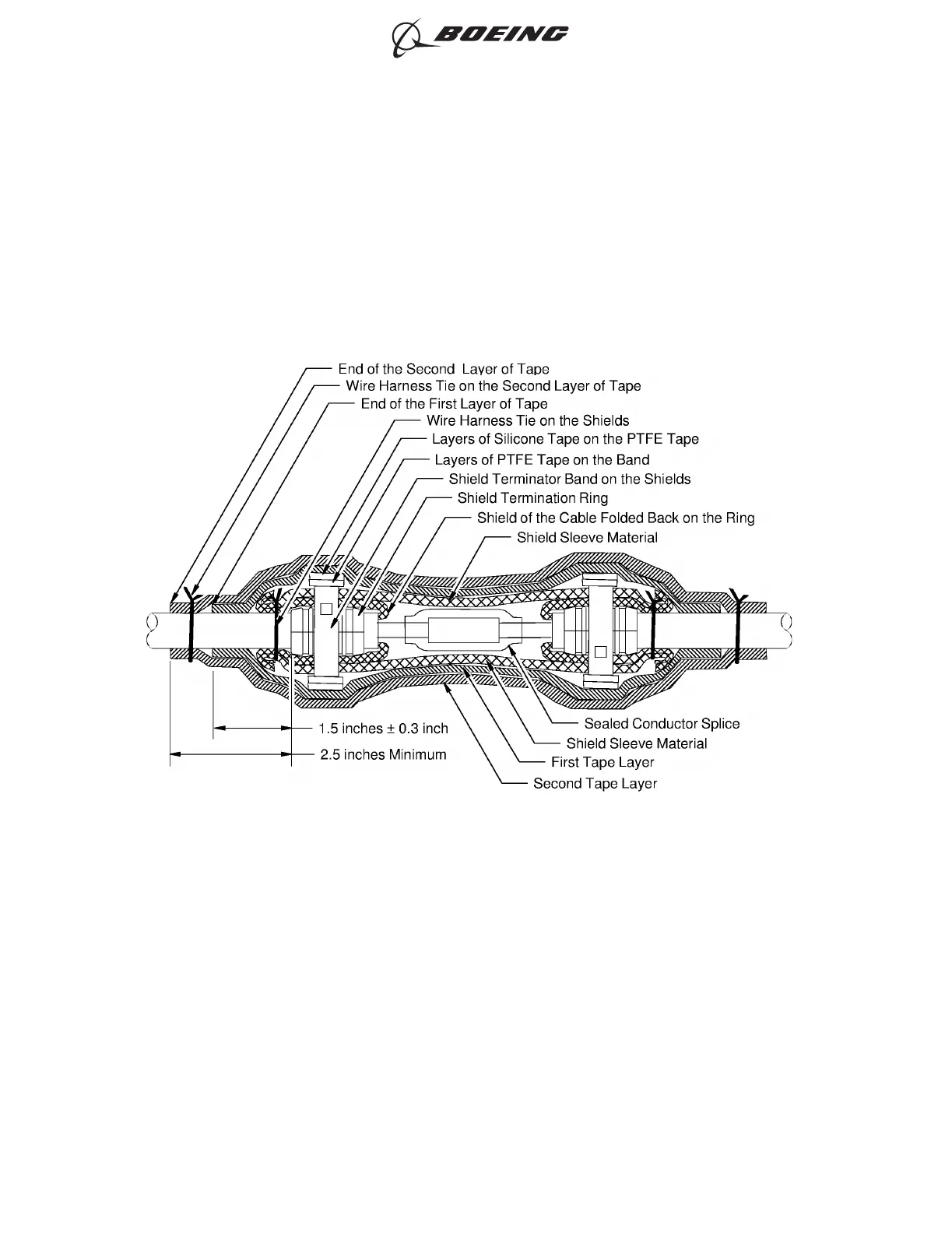

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 209
