Boeing 707 - Assembly and Installation of the Terminal Receptacle; Part Numbers and Description; Printed Circuit Board Terminal Receptacle Part Numbers; Terminal Receptacle Assembly

This Subject gives the procedure to:
• Assemble the terminal receptacle
• Install the wired receptacle on the terminal pin.
1. PART NUMBERS AND DESCRIPTION
A. Printed Circuit Board Terminal Receptacle Part Numbers
Table 1
TERMINAL RECEPTACLE PART NUMBERS
Part Number
Wire Size
(AWG)
Supplier
Minimum Maximum
60789-2 24 20 AMP
60940-4 24 20 AMP
60790-1 28 26 AMP
60790-2 28 26 AMP
60888-4 26 22 AMP
60983-3 26 22 AMP
640024-1 24 18 AMP
2. ASSEMBLY AND INSTALLATION OF THE TERMINAL RECEPTACLE
A. Terminal Receptacle Assembly
Table 2
TERMINAL RECEPTACLE CRIMP TOOLS
Wire Size
(AWG)
Receptacle
Crimp Tool
Special Instructions
Basic Unit Head Supplier
28
60790-1 90205-2 - AMP (Tyco) -
60790-2 90205-2 - AMP (Tyco) -
2445872 S00061545695_V1

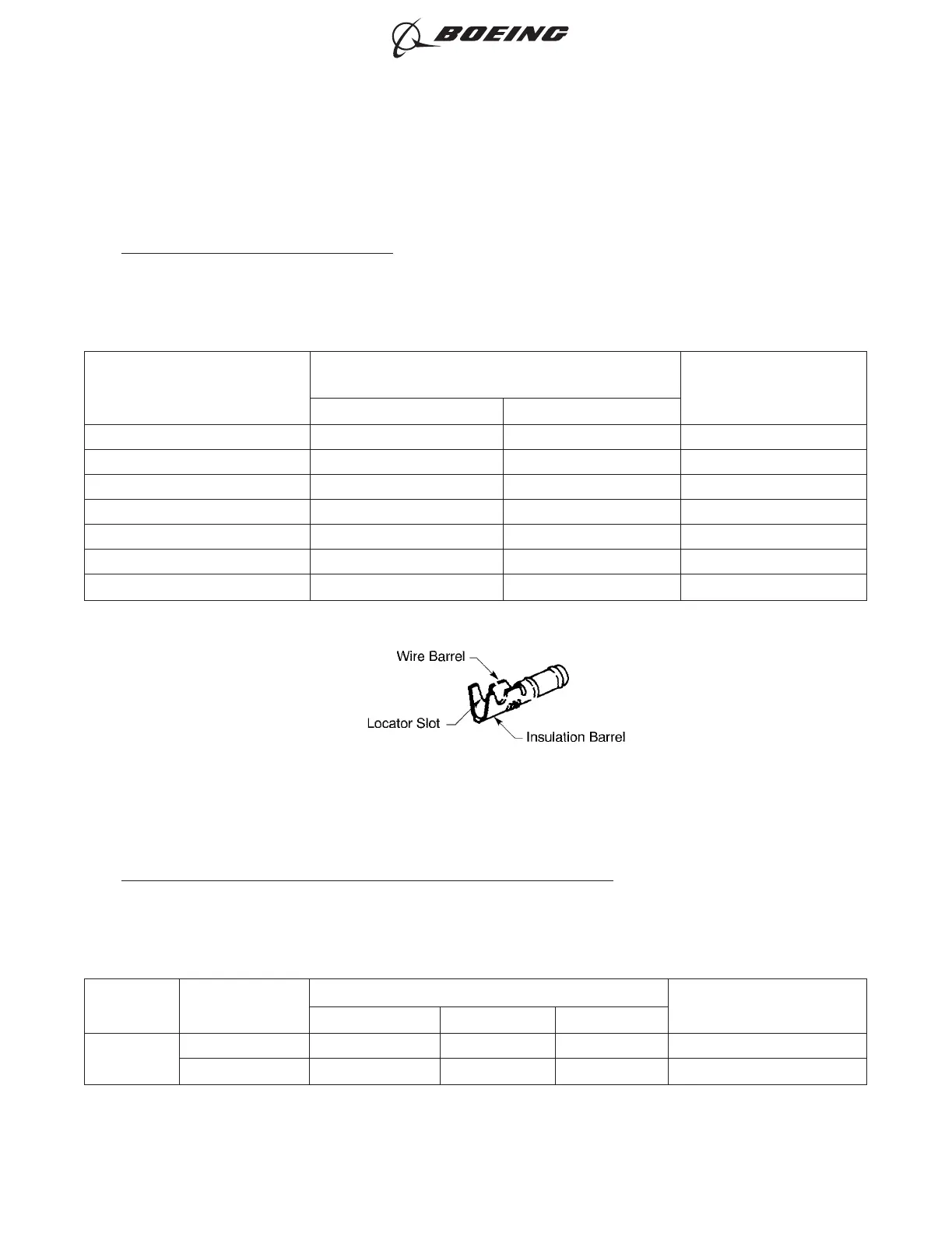

AMP PRINTED CIRCUIT BOARD TERMINAL RECEPTACLE
Figure 1
AMP PRINTED CIRCUIT BOARD TERMINAL RECEPTACLES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-17
Page 2
