Table 24 DUAL HOLE TERMINAL LUG PART NUMBERS (Continued)
Crimp Barrel Size Stud Hole Size Configuration Part Number Supplier
3/0 3/8
30 Degree
BACT13J-7-30 Boeing
YAV27-2L38-30NK
Burndy
Straight YAV27-2L38-NK
Table 25
BURNDY UPRIGHT YAV TERMINAL LUG PART NUMBERS
Crimp Barrel
Size
CAU Range
Stud Hole Size Part Number Supplier
Minimum Maximum
4 327 457 3/8 YAV4CRS2NK Burndy
1/0 831 1119 3/8 YAV25RSNK Burndy
2449342 S00061545425_V1

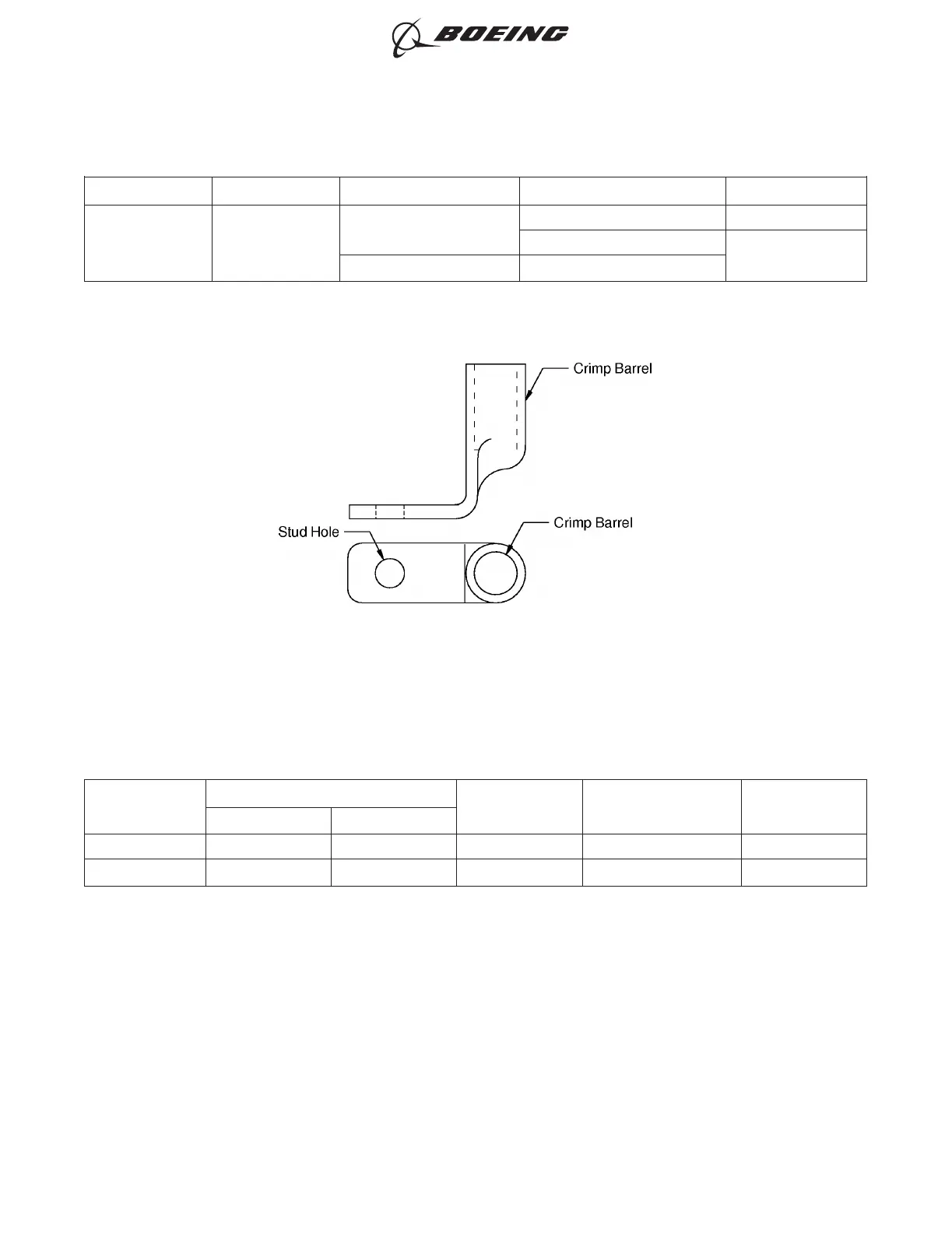

TYPICAL BURNDY UPRIGHT YAV TERMINALS
Figure 13
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 38
Jun 15/2021D6-54446
