Table 26
BURNDY HEAVY DUTY YAV TERMINAL LUG PART NUMBERS
Crimp Barrel Size
CAU Range
Stud Hole Size Part Number Supplier
Minimum Maximum
16-14 21 42
8 YAV14G82 Burndy
10 YAV14G88 Burndy
20-14 21 42
8 YAV14-H1 Burndy
10 YAV14-H Burndy
22-18 7 24 10 YAV18-H Burndy
NOTE: When two 18 AWG wires are specified to be terminated to a YAV14G82 or a YAV14G88
terminal, an alternative terminal lug can be selected from Table 27.
Table 27
ALTERNATIVE HEAVY DUTY TERMINAL LUG PART NUMBERS FOR TWO AWG 18 WIRES
Specified Terminal Lug Alternative Terminal Lug
Part Number Supplier Part Number Supplier
YAV14G82 Burndy 323749 Tyco/AMP
YAV14G88 Burndy 323750 Tyco/AMP

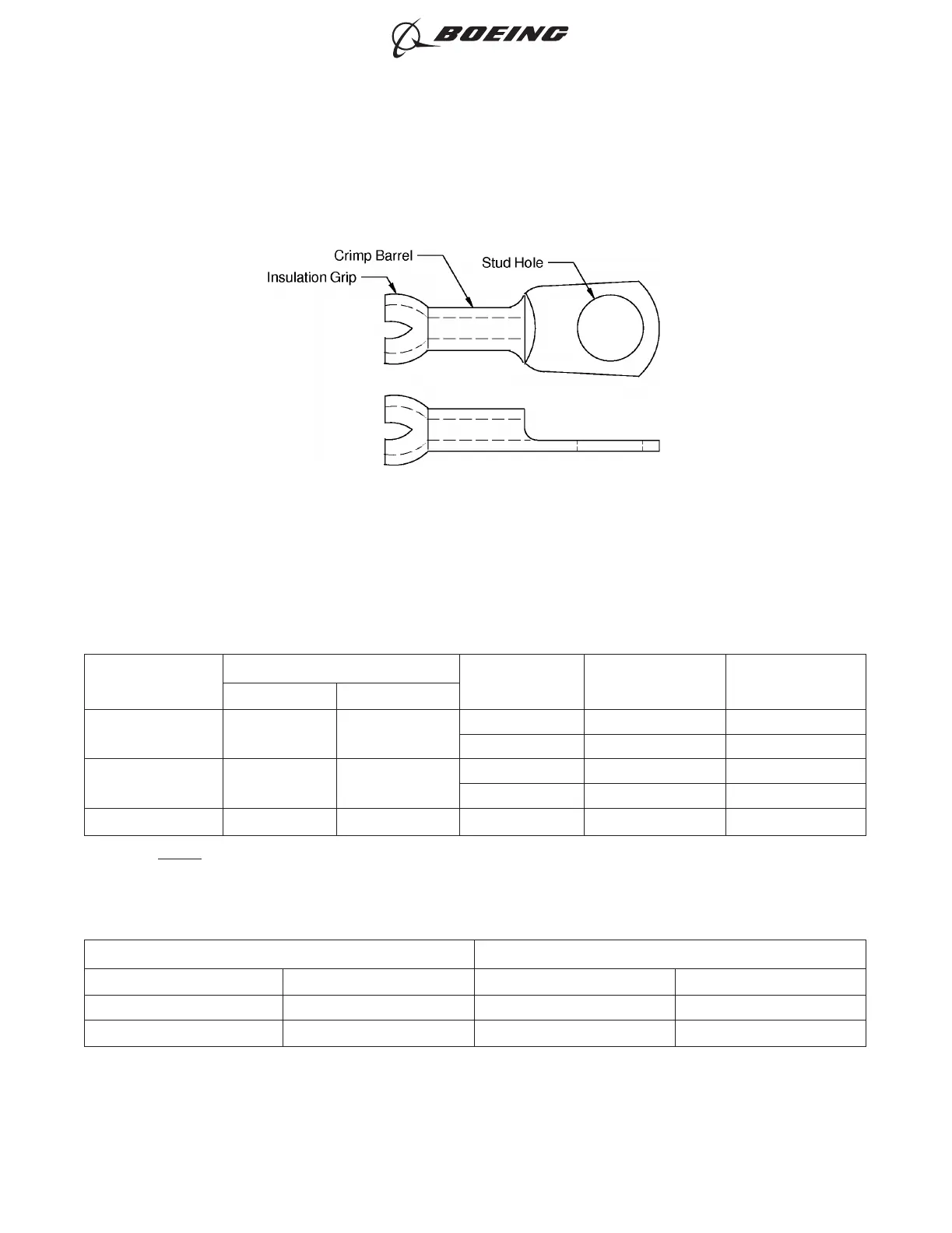

TYPICAL BURNDY HEAVY DUTY YAV TERMINALS
Figure 14
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 39
Feb 15/2016D6-54446
