Table 118
CABLE TRIM DIMENSIONS
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
A
C1
D1 0.28
±0.02D2 1.92
D3 2.20
C2
D1 0.28
±0.02D2 0.77
D3 1.05
B
C1
D1 0.28
±0.02D2 0.77
D3 1.05
C2
D1 0.28
±0.02D2 1.92
D3 2.20
C C1 D1 0.28 ±0.02
2445816 S00061545576_V1

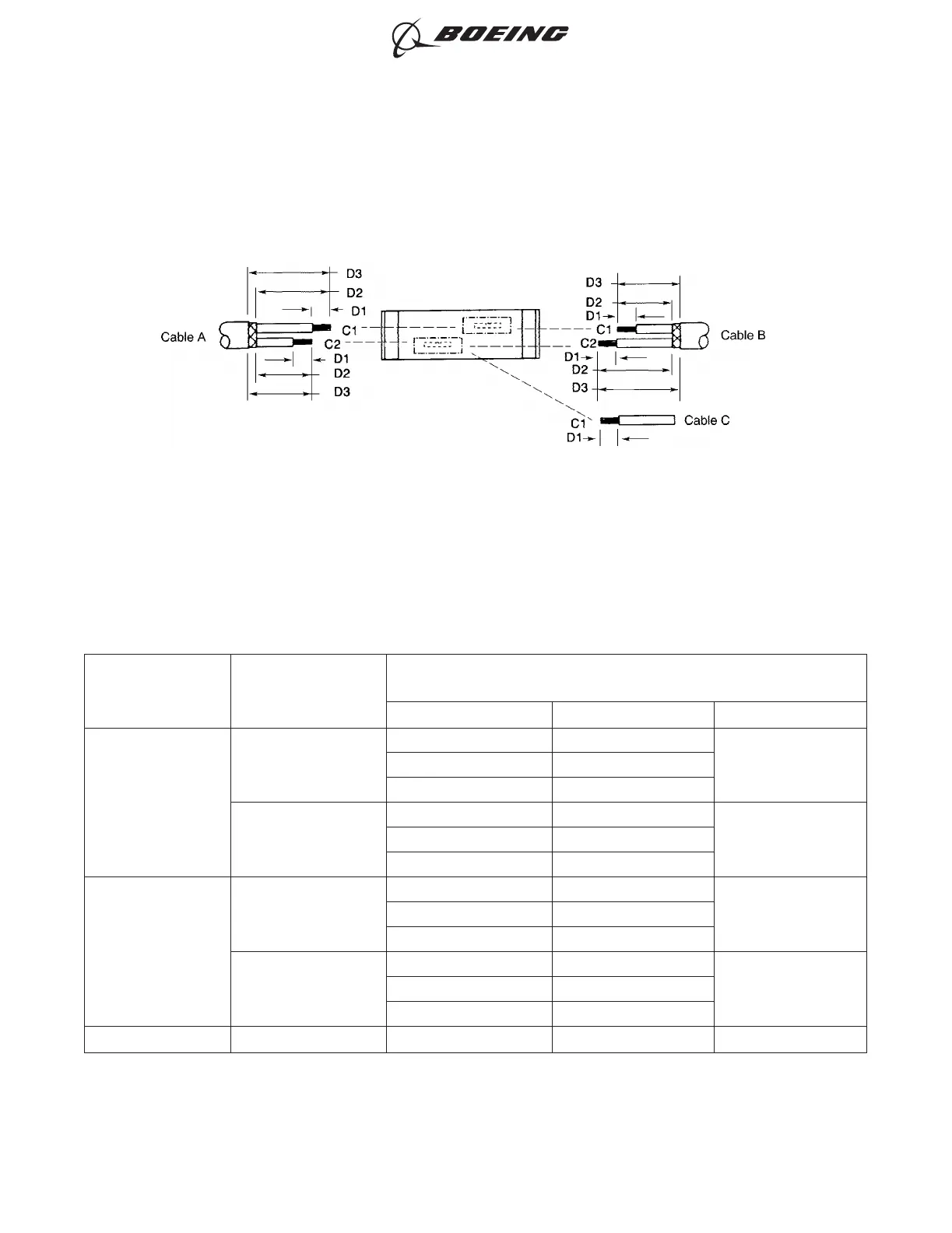

ONE CLASS 2 SHIELDED CABLE TO ONE CLASS 2 SHIELDED CABLE AND ONE CLASS 1 WIRE
Figure 282
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
