(a) Make a selection of a Grade B, Class 1 heat shrinkable sleeve from Subject 20-00-11.
(b) Put a 1.0 inch ±0.06 inch length of the heat shrinkable sleeve on the terminal.
Make sure that the end of the sleeve extends 0.06 inch to 0.09 inch beyond the end of the
terminal.
(c) Shrink the end of the sleeve that is on:
• The wire
• The insulation barrel of the terminal
• The wire barrel of the terminal.
Make sure that no heat is applied to the part of the sleeve that is on the terminal receptacle.

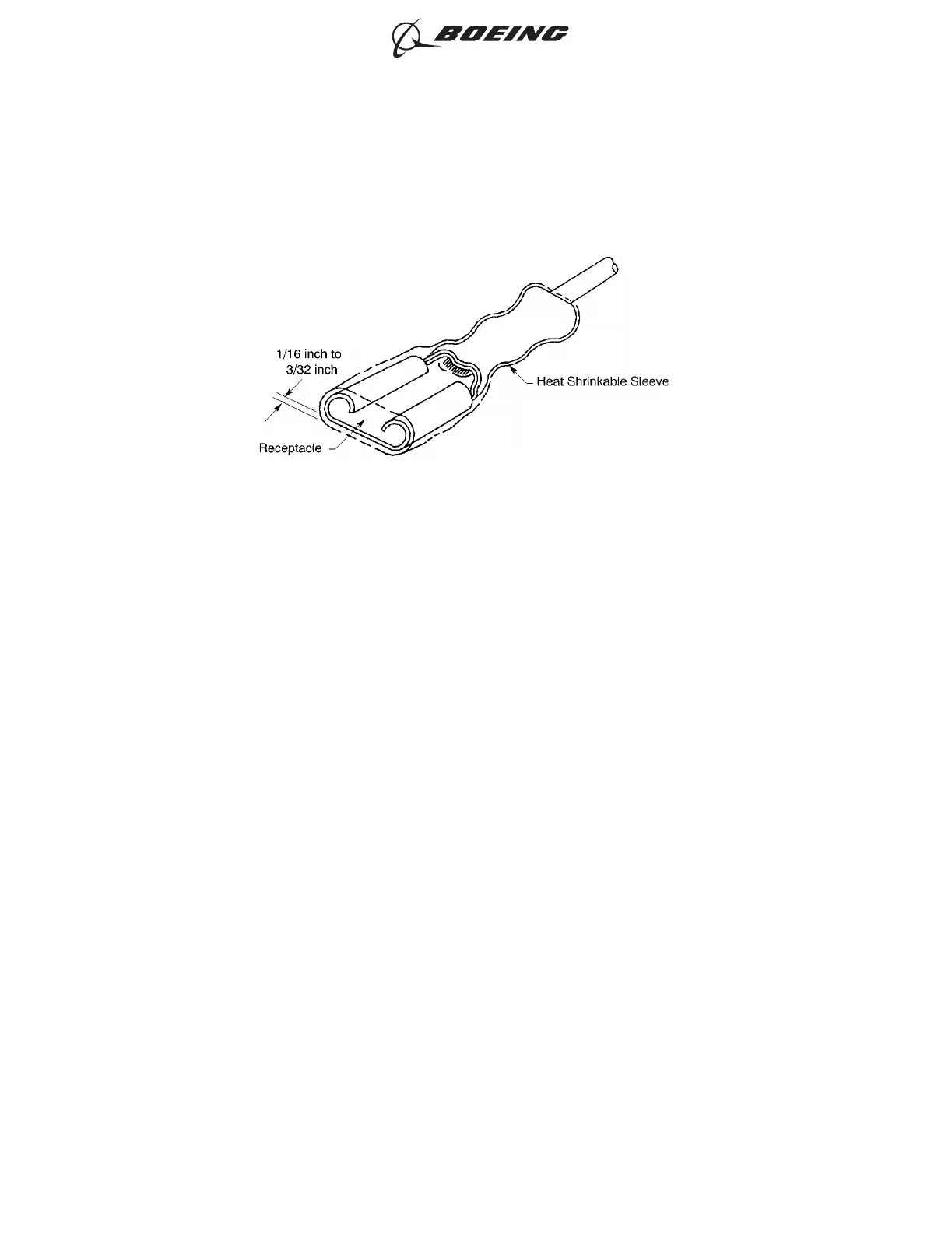

POSITION OF THE HEAT SHRINKABLE SLEEVE ON THE TERMINAL
Figure 3
ASSEMBLY OF AMP (TYCO) FASTON TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-15
Page 10
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
