Table 136 CABLE TRIM DIMENSIONS (Continued)
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
D
C1
D1 0.28
±0.02D2 0.77
D3 1.05
C2
D1 0.28
±0.02D2 1.92
D3 2.20
C3
D1 0.28
±0.02D2 1.92
D3 2.20
E
C1
D1 0.28
±0.02D2 0.77
D3 1.05
C2
D1 0.28
±0.02D2 1.92
D3 2.20
C3
D1 0.28
±0.02D2 1.92
D3 2.20

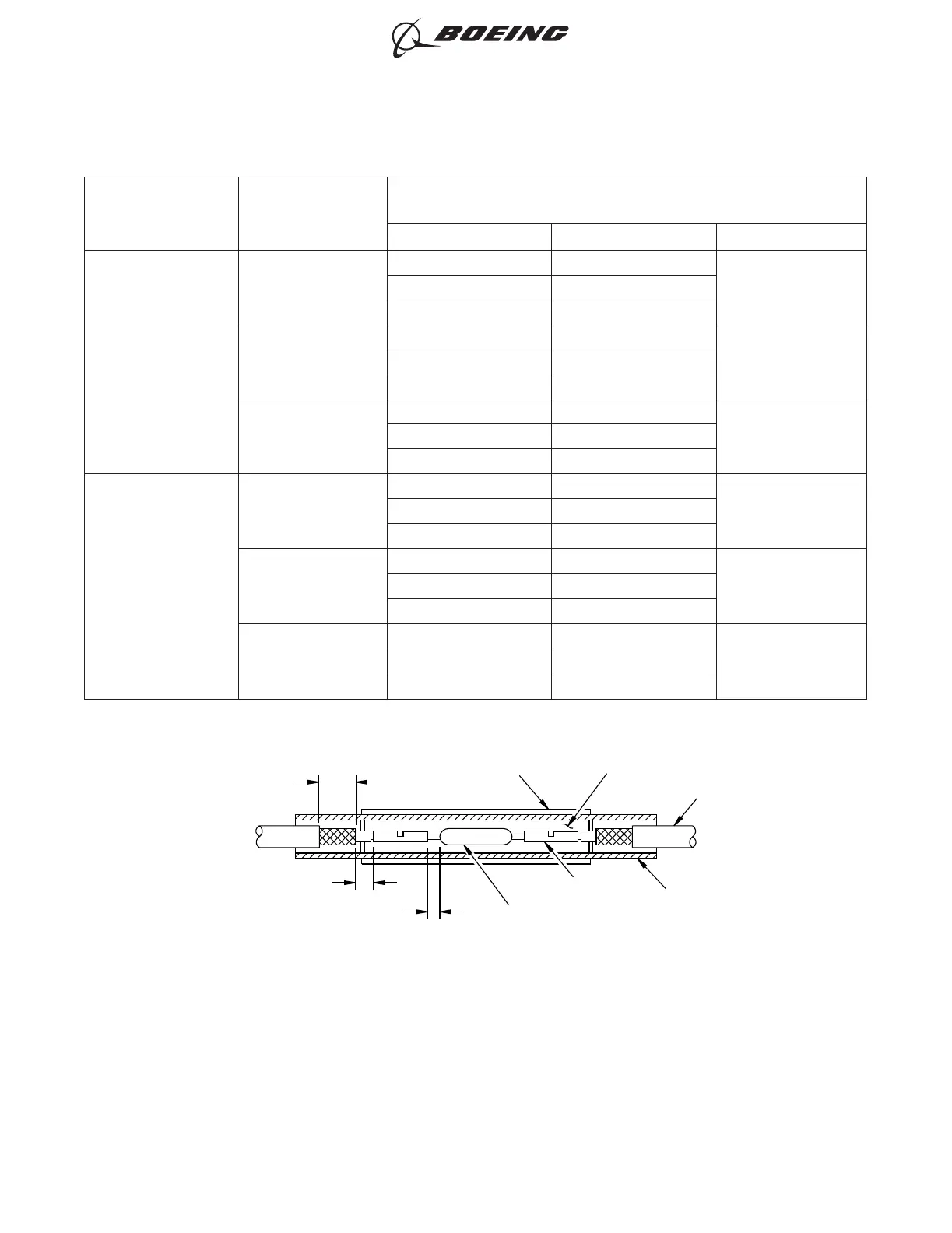

R. Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - One Class
4 Shielded Cable to One Class 4 Shielded Cable
0.2 inch ±0.1 inch
0.13 inch +0.13 inch, -0.0 inch
0.38 inch ±0.05 inch
Identification Sleeve
Resistor or Diode
Splice
BACS13DF4 Solder
Shield Sleeve
Shielded Cable
DWP-125 Heat Shrinkable Sleeve
2579053 S0000620824_V1
Assembling In-Line Resistors or Diodes
Figure 292
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 328
