(f) Start the second layer a tape where the first layer of tape ends.
(g) Wind the tape on the first layer of tape in the direction of the start of the first layer of tape.
Refer to Figure 20.
Make sure that:
• Each edge of the tape makes a 50 percent overlap with the tape below it
• The second layer of tape is wound in the opposite direction of the first layer of tape
• The second layer of tape stops where the first layer of tape starts.

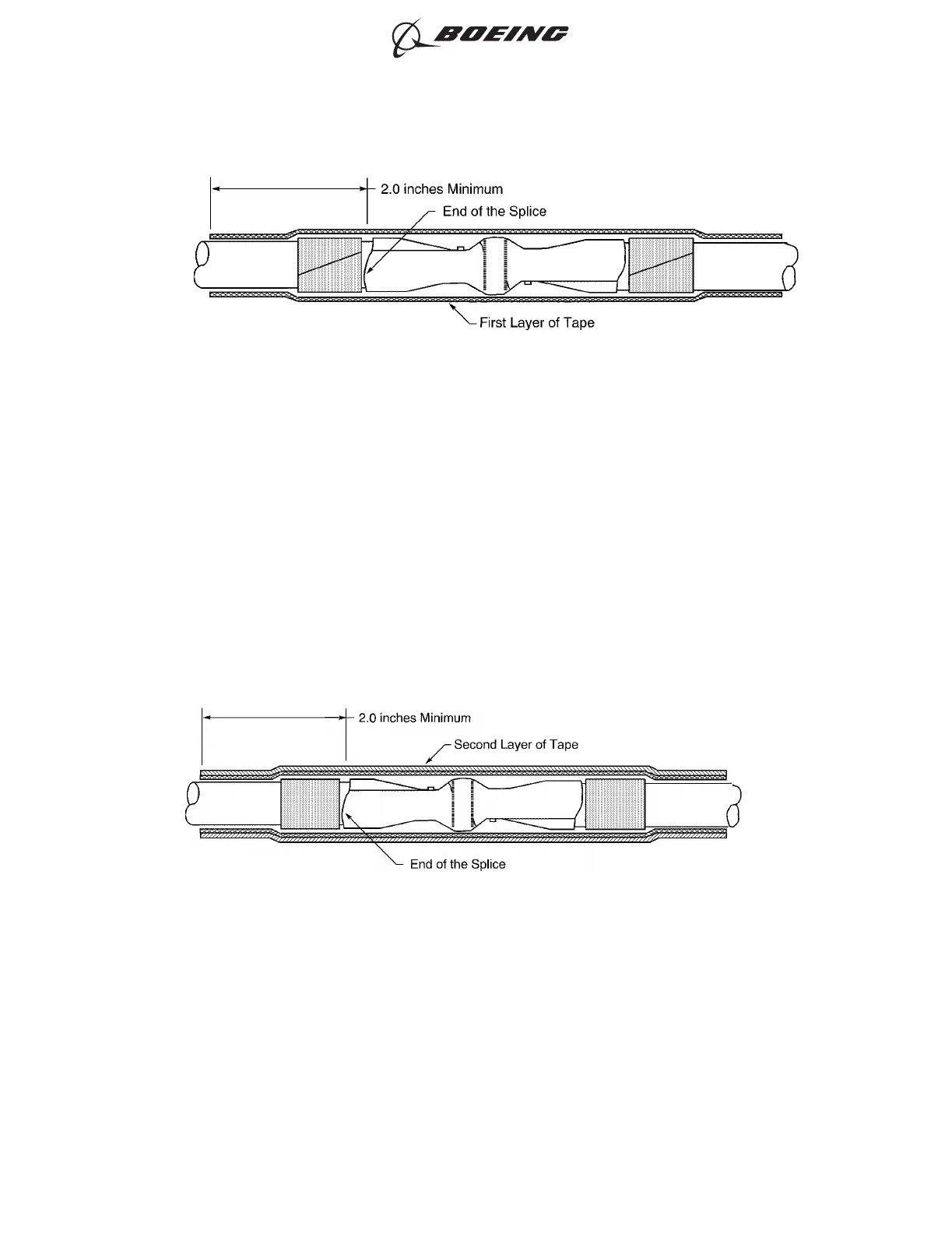

POSITION OF THE FIRST LAYER OF TAPE ON THE SPLICE ASSEMBLY
Figure 19
POSITION OF THE FIRST LAYER OF TAPE ON THE SPLICE ASSEMBLY
Figure 20
