(c) Wind three layers of tape on the wire insulation at the other end of the splice. Refer to
Figure 18.
Make sure that:
• The end of the layer of tape is a maximum of 0.1 inch from the end of the splice
• The layers of tape do not make an overlap with the splice
• The layers of tape have 100 percent overlap.
(d) Start the first layer of tape a minimum of 2 inches from the end of the splice.
(e) Wind the tape on the splice and a minimum of 2 inches farther than the other end of the
splice. Refer to Figure 19.
Make sure that each edge of the tape makes a 50 percent overlap with the tape below it.

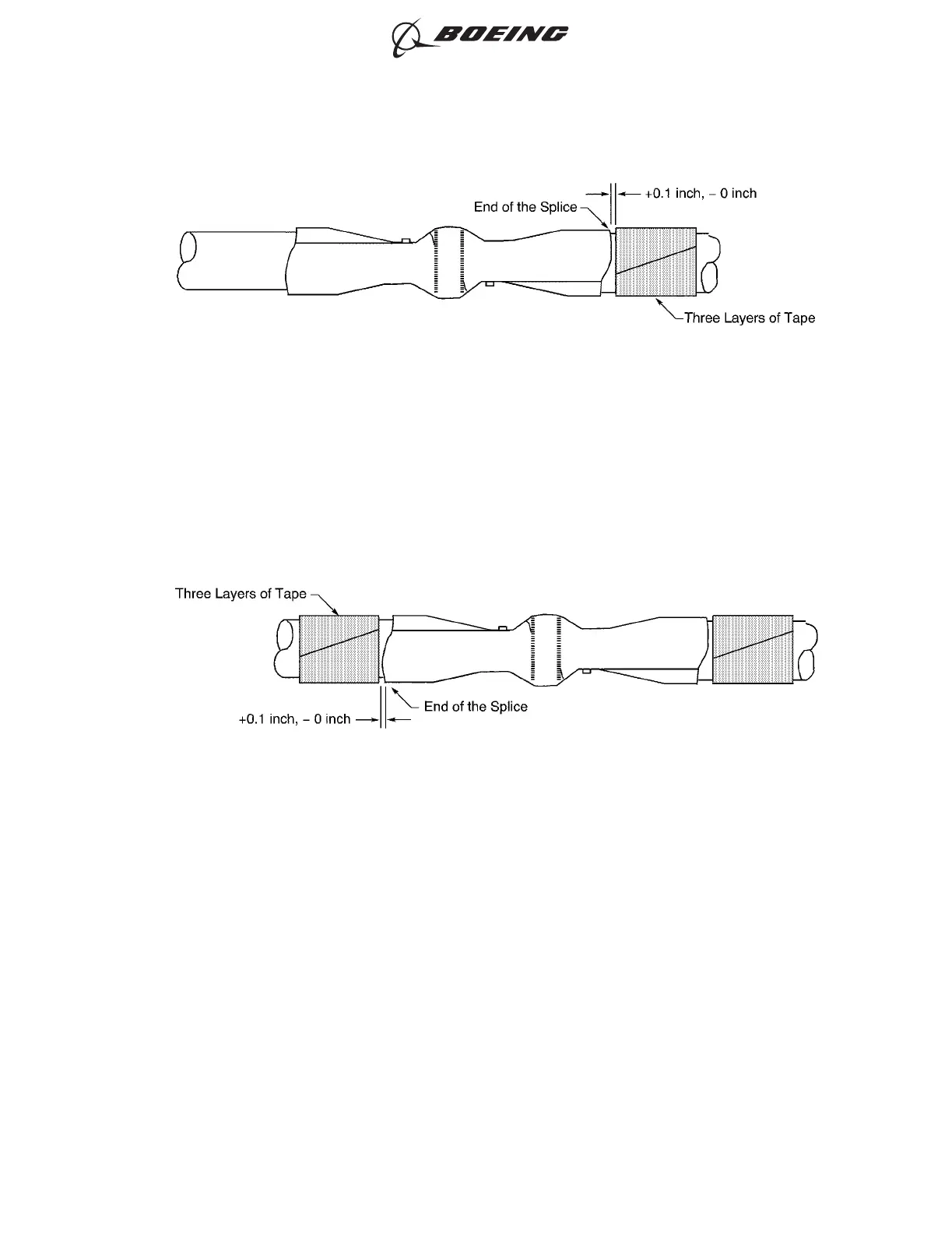

POSITION OF THE TAPE ON THE WIRE
Figure 17
POSITION OF THE TAPE ON THE WIRE
Figure 18
ASSEMBLY AND REPAIR OF THE AMP AND BACS52N COPALUM SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-13
Page 29
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
