(e) Crimp the splice.
(9) Do Step 7.J.(8) again to assemble the other end of the butt splice.
(10) Align the center of the sleeve with the center of the butt splice.
(11) Push the non-integral wire seal fully into the sleeve until it is as near the splice as possible.
(12) Shrink the sleeve into position. Refer to Subject 20-10-14.

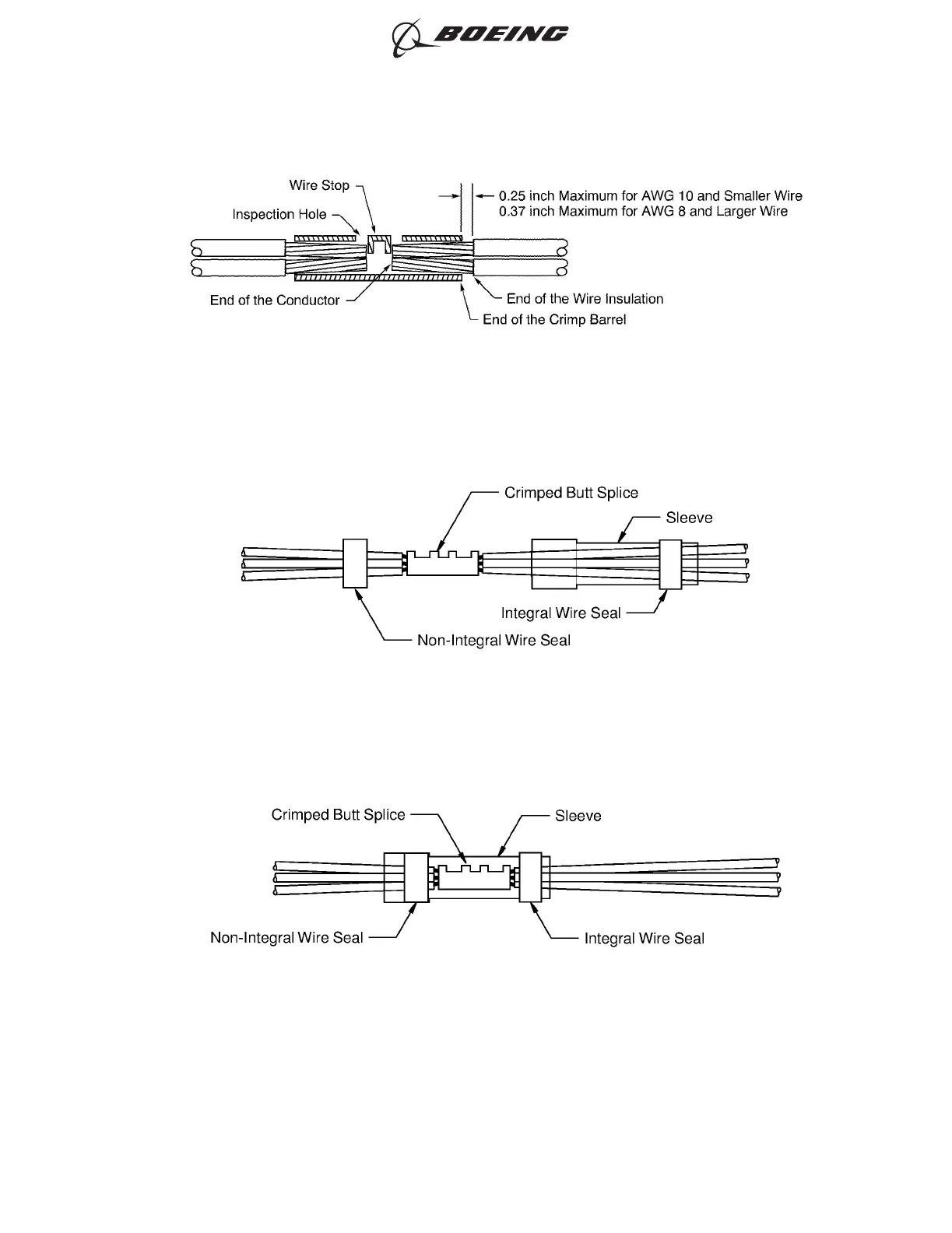

POSITION OF MORE THAN ONE WIRE IN THE BUTT SPLICE
Figure 85
CRIMPED SPLICE
Figure 86
POSITION OF THE SLEEVE AND THE WIRE SEAL
Figure 87
ASSEMBLY OF SPLICES
