2445791 S00061545370_V1

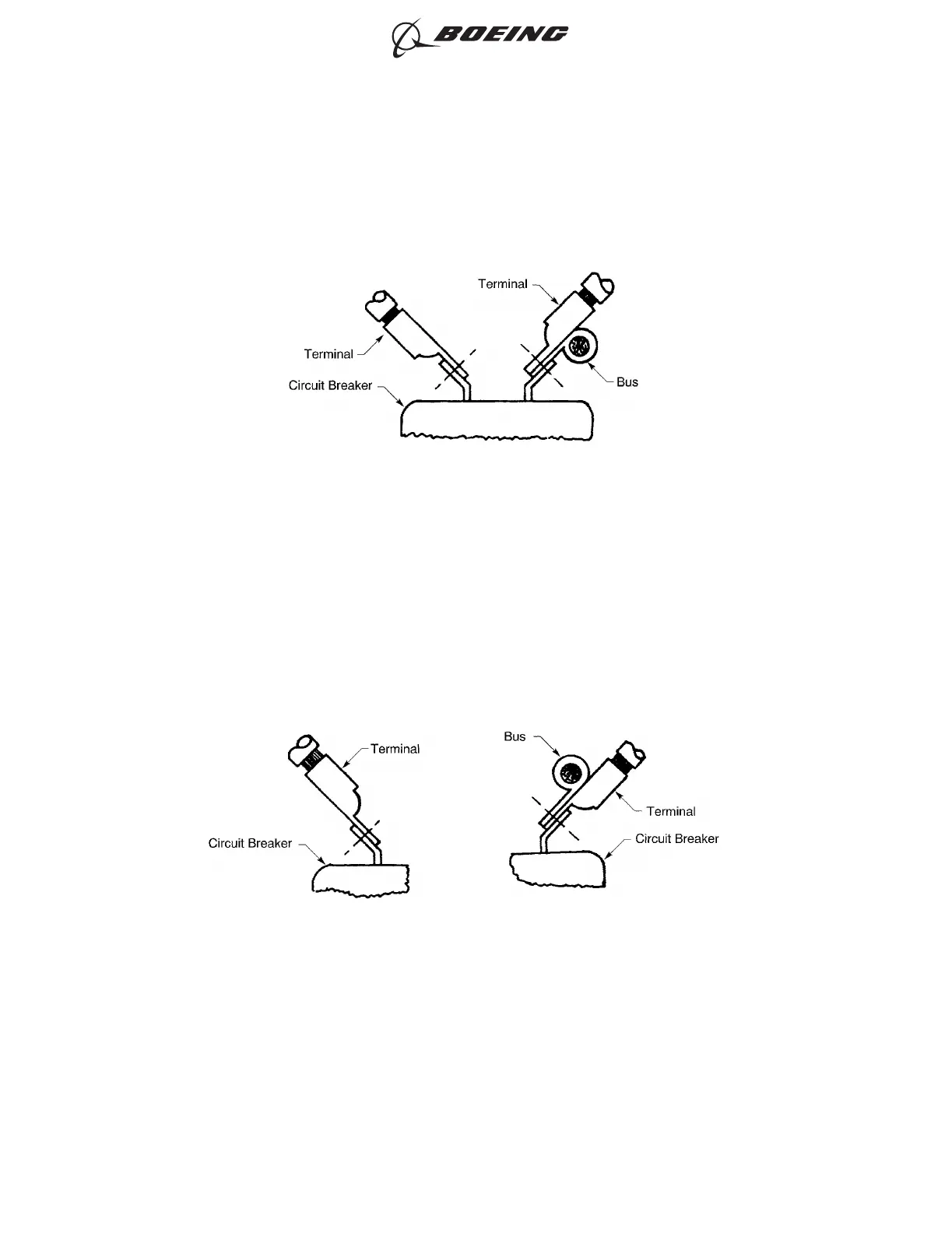

CONFIGURATION OF TERMINALS AND BUSSES ON A CIRCUIT BREAKER
Figure 7
2445792 S00061545371_V1
ALTERNATIVE CONFIGURATIONS OF TERMINALS AND BUSSES ON A CIRCUIT BREAKER
Figure 8
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 9
Oct 15/2015D6-54446
