(2) Make a selection of a splice kit from Table 108.
NOTE: In this procedure, the D-150-0675 large overall solder shield in the D-150-0272 splice kit
is not used.
(3) Put these components on the 10 AWG wire in this order:
• A 4.0 inch ±0.1 inch length of 1/2 inch diameter M23053/5-108-4 heat shrinkable sleeve
• A BACS13CT3N solder sleeve
• A 2.5 inch ±0.1 inch length of BAC3108-2C shield overbraid
• A 2.0 inch ±0.1 inch length of 1/4 inch diameter M23053/12-102-C heat shrinkable sleeve.
Refer to Figure 267.

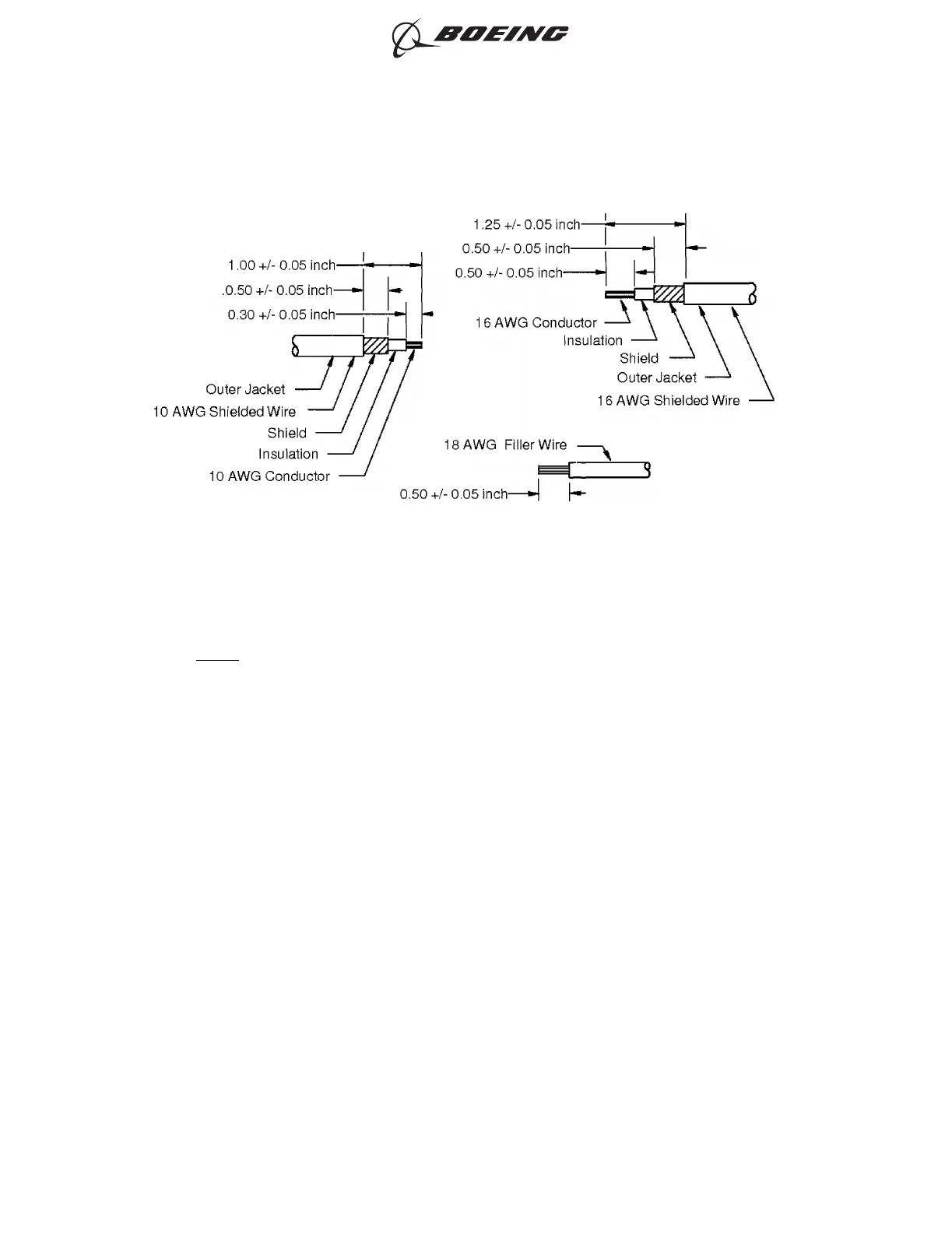

PREPARED WIRE ENDS
Figure 266
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 296
Jun 15/2021D6-54446
