(4) Put these components on the 16 AWG wire in this order:
• A BACS13CT3N solder sleeve
• A seal sleeve from the D-150-0272 splice kit.
Refer to Figure 268.

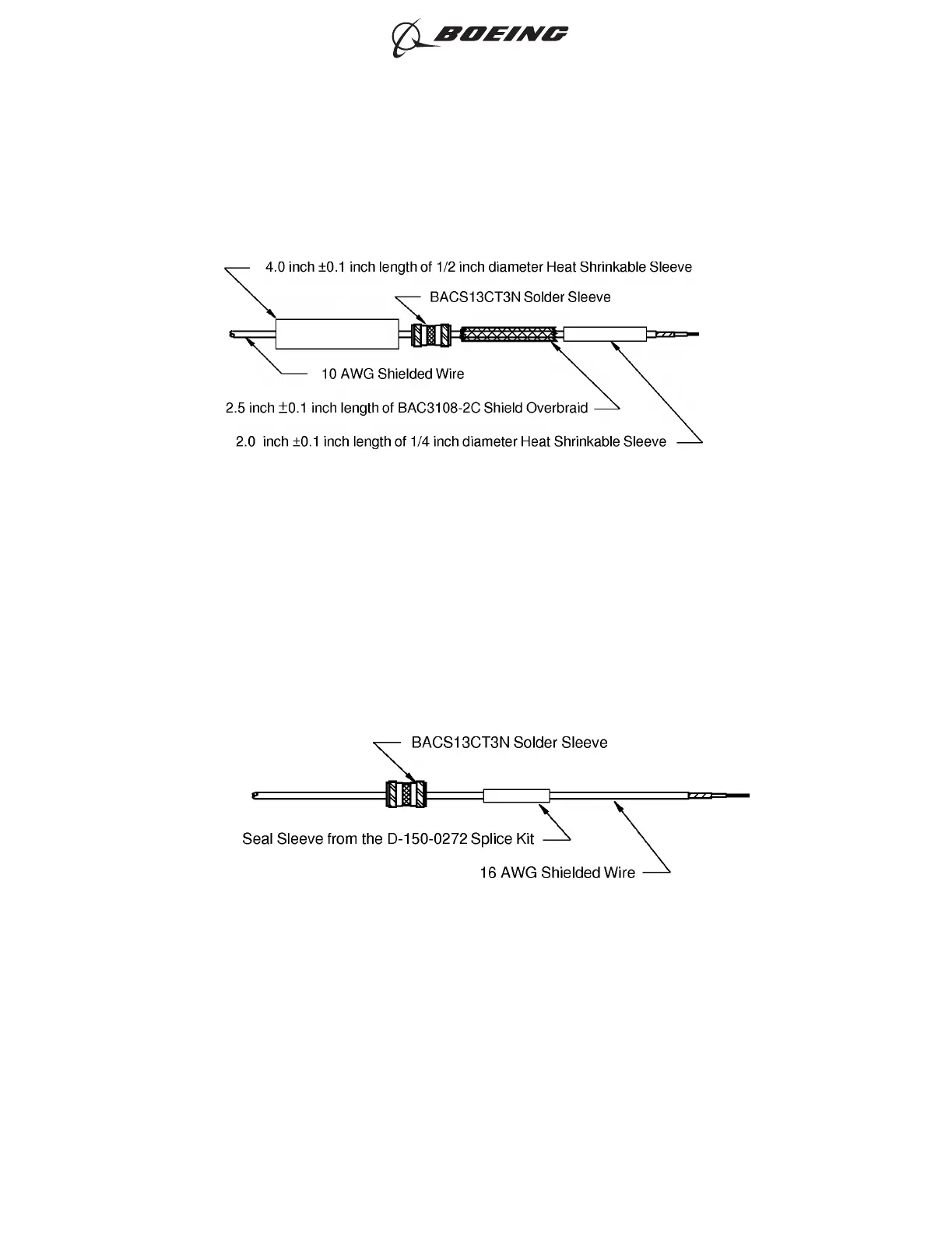

COMPONENTS ON THE 10 AWG SHIELDED WIRE
Figure 267
COMPONENTS ON THE 16 AWG SHIELDED WIRE
Figure 268
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 297
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
