(a) Remove the necessary length of the outer jacket so that the distance from the end of the
outer jacket to the end of the cable is:
• 3.30 inches ±0.05 inch for Cable A
• 3.00 inches ±0.05 inch for Cable B
• 3.00 inches ±0.05 inch for Cable C.
(b) Remove the necessary length of the shield from each cable so that the distance from the
end of the shield to the end of the outer jacket is 0.5 inch ±0.05 inch.
(c) Cut the wires so that the distance from the end of the wire to the end of the outer jacket is:
• 1.80 inches ±0.05 inch for Wire A2 of Cable A
• 1.50 inches ±0.05 inch for Wire B1 of Cable B
• 1.50 inches ±0.05 inch for Wire C1 of Cable C.

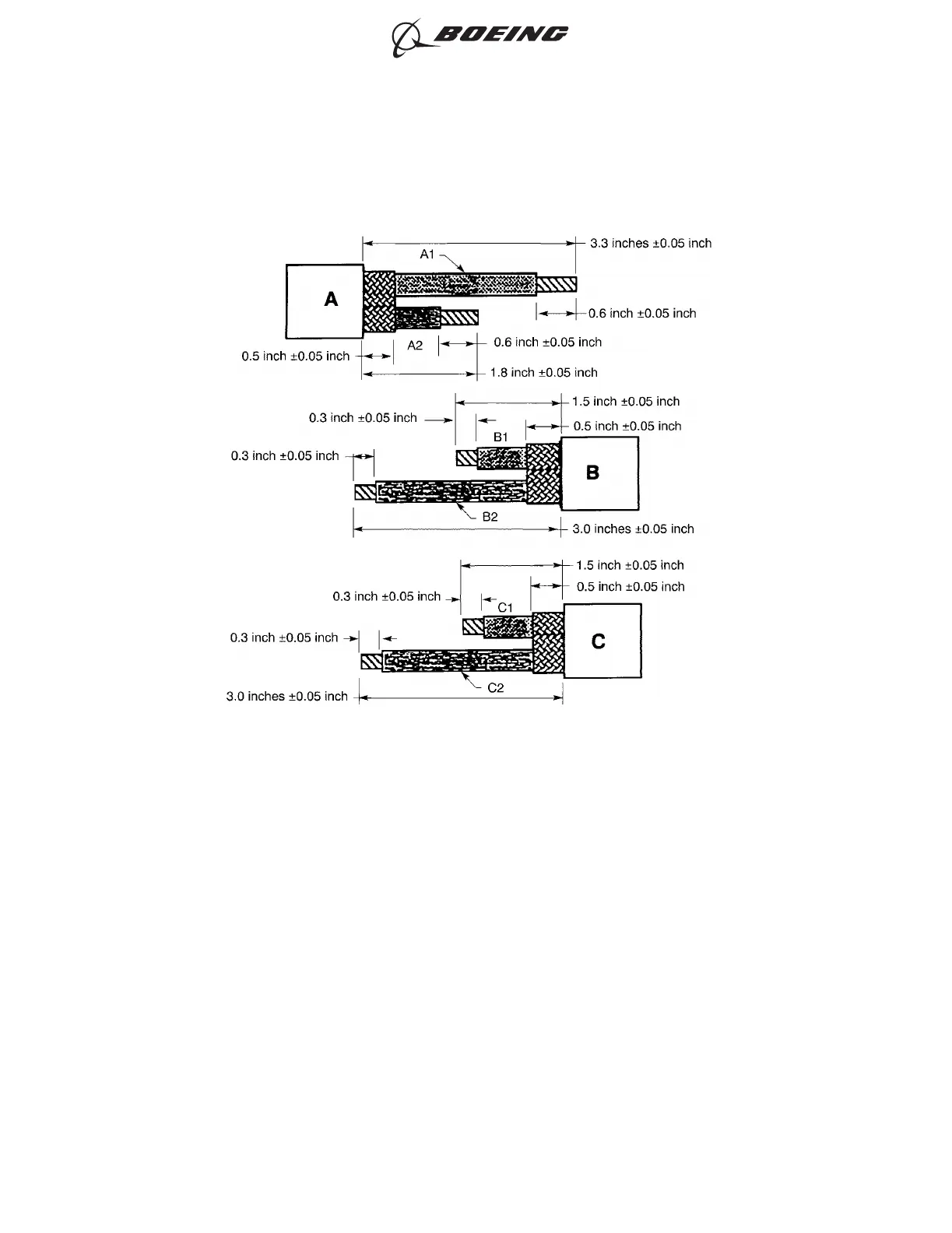

CABLE PREPARATION
Figure 305
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 347
Jun 15/2021D6-54446
