Table 5 BACT13K TERMINAL LUG SPECIFICATIONS (Continued)
Crimp Barrel Size
(Part Mark)
Stud Size
(Inch)
Terminal Lug Part Number
3/0AL - 2/0CU
3/8
BACT13K-7
3/0AL 13-78 BACT13K-7A78
3/0AL 2/0CU BACT13K-7W
4/0AL 13-78 3/8 BACT13K-8A78
Table 6
BACT13L TERMINAL LUG SPECIFICATIONS
Crimp Barrel Size
(Part Mark)
Stud Size
(Both Holes)
(Inch)
Terminal Lug Part Number
6AL - 8CU 3/8 BACT13L-2
6AL 13-78 3/8
BACT13L-24A78
BACT13L-2A78
4AL - 6CU 3/8
BACT13L-3
BACT13L-3B
BACT13L-3C
4AL 13-78 3/8 BACT13L-3A78
2AL - 4CU 3/8 BACT13L-4
2448488 S00061545645_V1

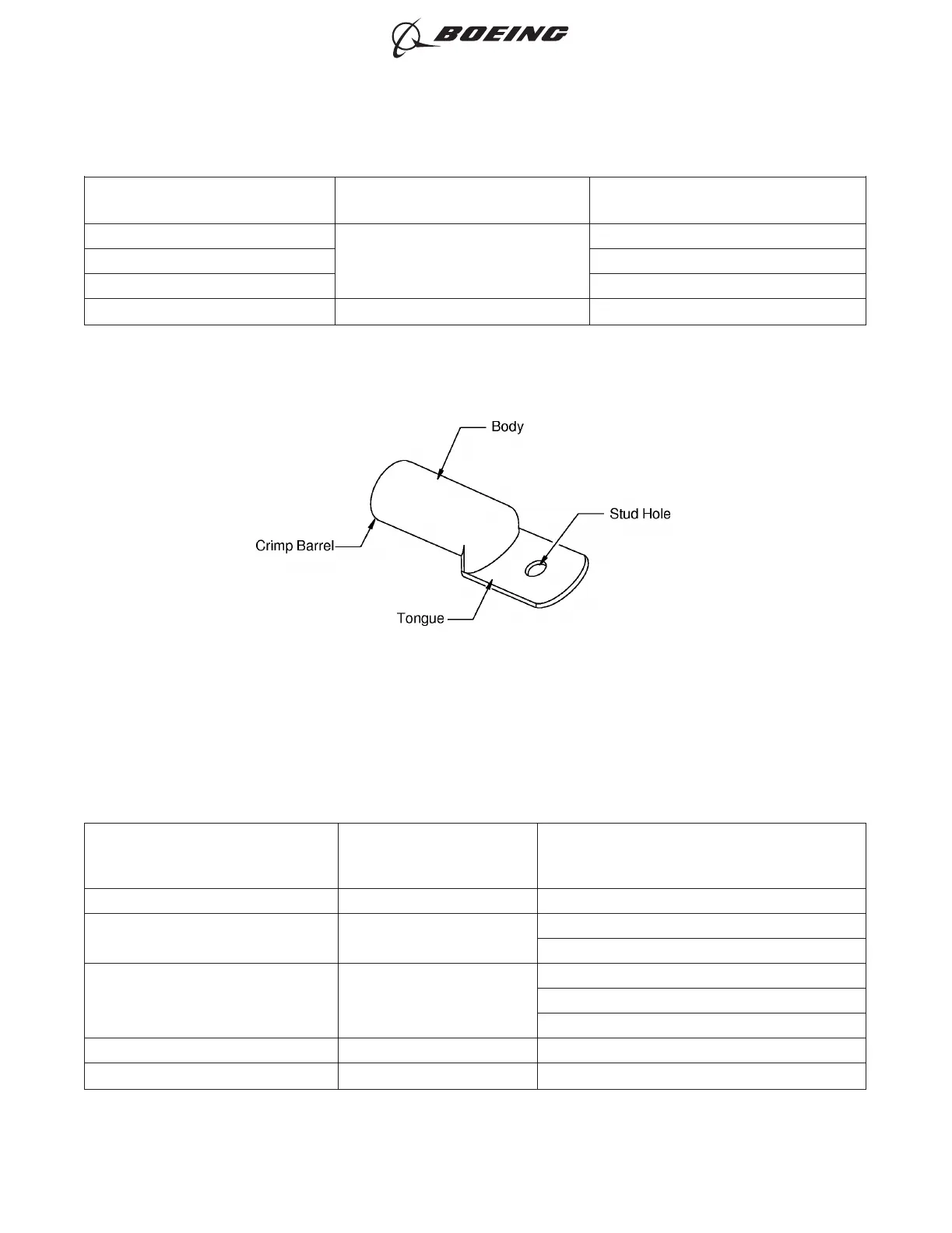

BACT13K COPALUM TERMINAL LUG
Figure 9
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 11
Feb 15/2021D6-54446
