Table 5
BACT13K TERMINAL LUG SPECIFICATIONS
Crimp Barrel Size
(Part Mark)
Stud Size
(Inch)
Terminal Lug Part Number
8AL - 10CU 3/8 BACT13K-1
6AL - 8CU
3/8 BACT13K-2
1/4 BACT13K-24
4AL - 6CU
3/8 BACT13K-3
1/4 BACT13K-34
4AL 13-78 3/8 BACT13K-3A78
2AL - 4CU
3/8 BACT13K-4
1/4 BACT13K-44
2AL 13-78 3/8 BACT13K-4A78
1/0AL - 2CU
3/8
BACT13K-5
1/0AL 13-78 BACT13K-5A78
2/0AL - 1/0CU
3/8
BACT13K-6
2/0AL 13-78 BACT13K-6A78
2448490 S00061545644_V1

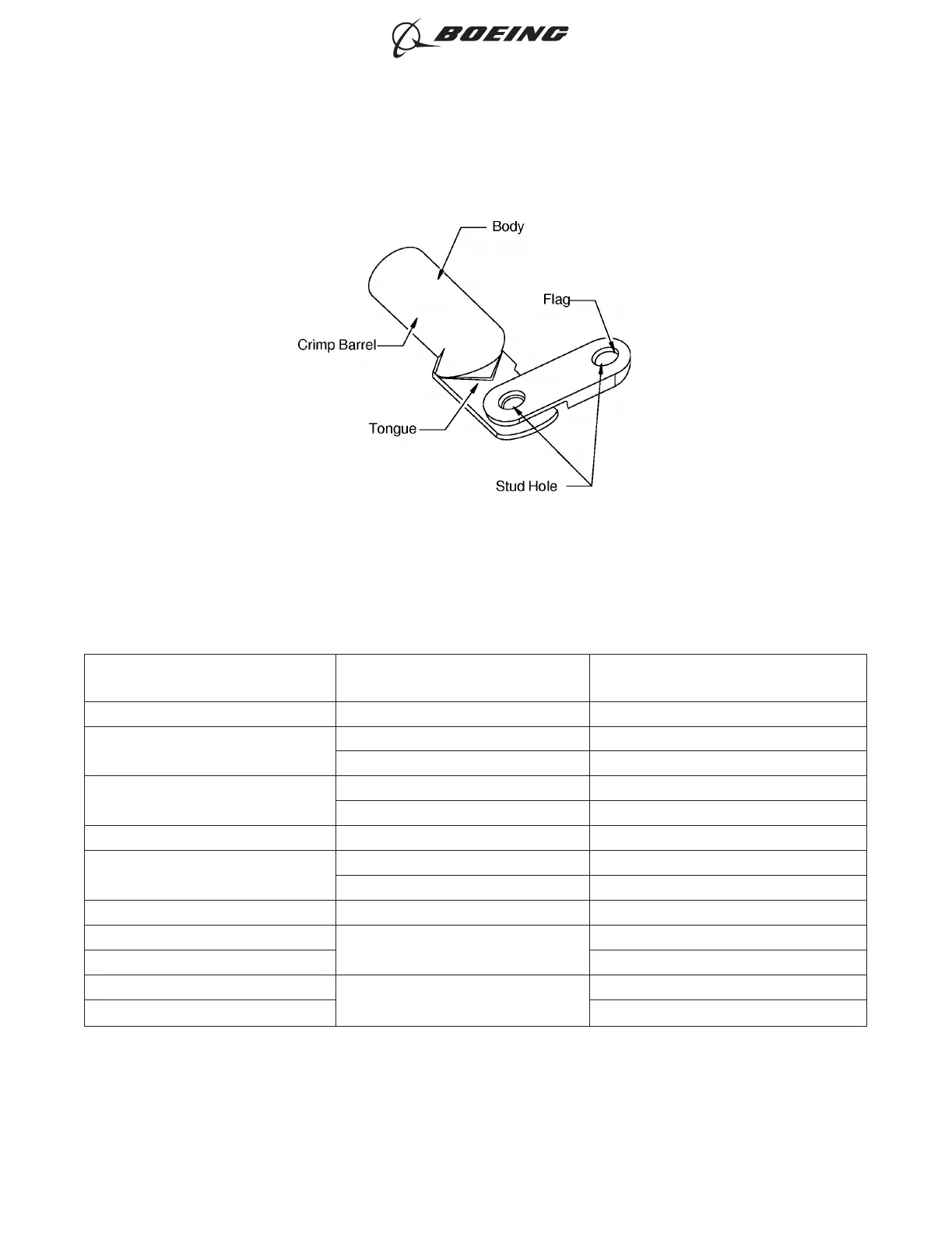

BACT12AY FLAG END COPALUM TERMINAL LUG
Figure 8
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 10
Feb 15/2021D6-54446
