Table 4
BACT12AW AND BACT12AY TERMINAL LUG SPECIFICATIONS
Crimp Barrel Size
(Part Mark)
Stud Size
(Both Holes)
(inch)
Tongue Configuration Terminal Lug Part Number
1/0AL 3/8
Dual Hole, 90 Degree, Bent
Tongue
BACT12AW-5C
Dual Hole, Flag BACT12AY-5C
2/0AL 3/8
Dual Hole, 90 Degree, Bent
Tongue
BACT12AW-6C
Dual Hole, Flag BACT12AY-6C
4/0AL 3/8
Dual Hole, 90 Degree, Bent
Tongue
BACT12AW-8C
Dual Hole, Flag BACT12AY-8C
2448491 S00061545643_V1

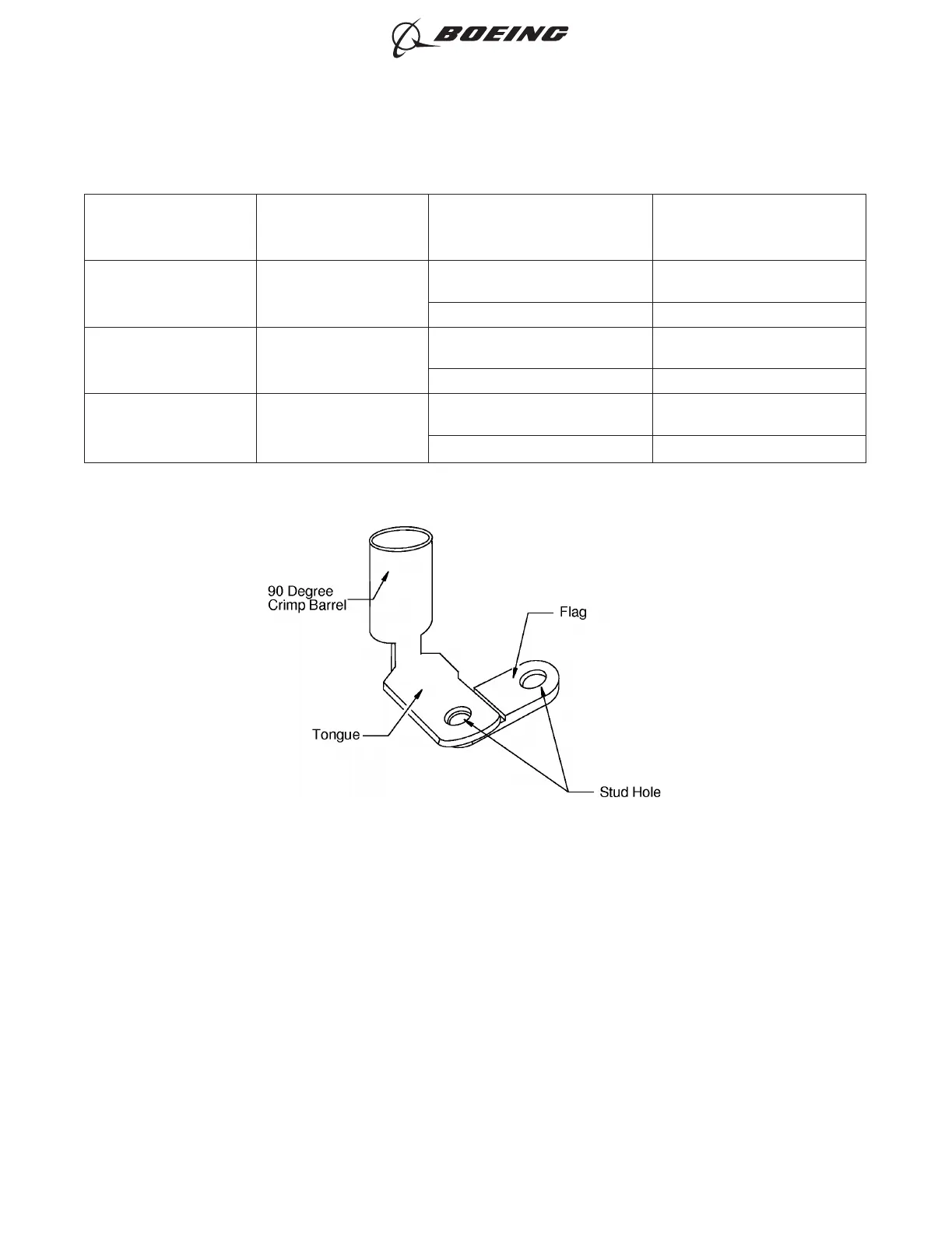

BACT12AW 90 DEGREE END COPALUM TERMINAL LUG
Figure 7
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 9
Oct 15/2015D6-54446
