Table 6 BACT13L TERMINAL LUG SPECIFICATIONS (Continued)
Crimp Barrel Size
(Part Mark)
Stud Size
(Both Holes)
(Inch)
Terminal Lug Part Number
2AL 13-78 3/8
BACT13L-4A7A
BACT13L-4A7A-1
BACT13L-4A7A-2
1/0AL - 2CU 3/8 BACT13L-5
1/0AL 13-78 3/8 BACT13L-5A78
2/0AL -1/0CU 3/8 BACT13L-6
2/0AL 13-78 3/8
BACT13L-6A78
BACT13L-6A78-1
BACT13L-6A78-2
3/0AL - 2/0CU 3/8 BACT13L-7
3/0AL 13-78 3/8
BACT13L-7A78
BACT13L-7A78-1
BACT13L-7A78-2
4/0AL 13-78 3/8 BACT13L-8A78
2448489 S00061545646_V1

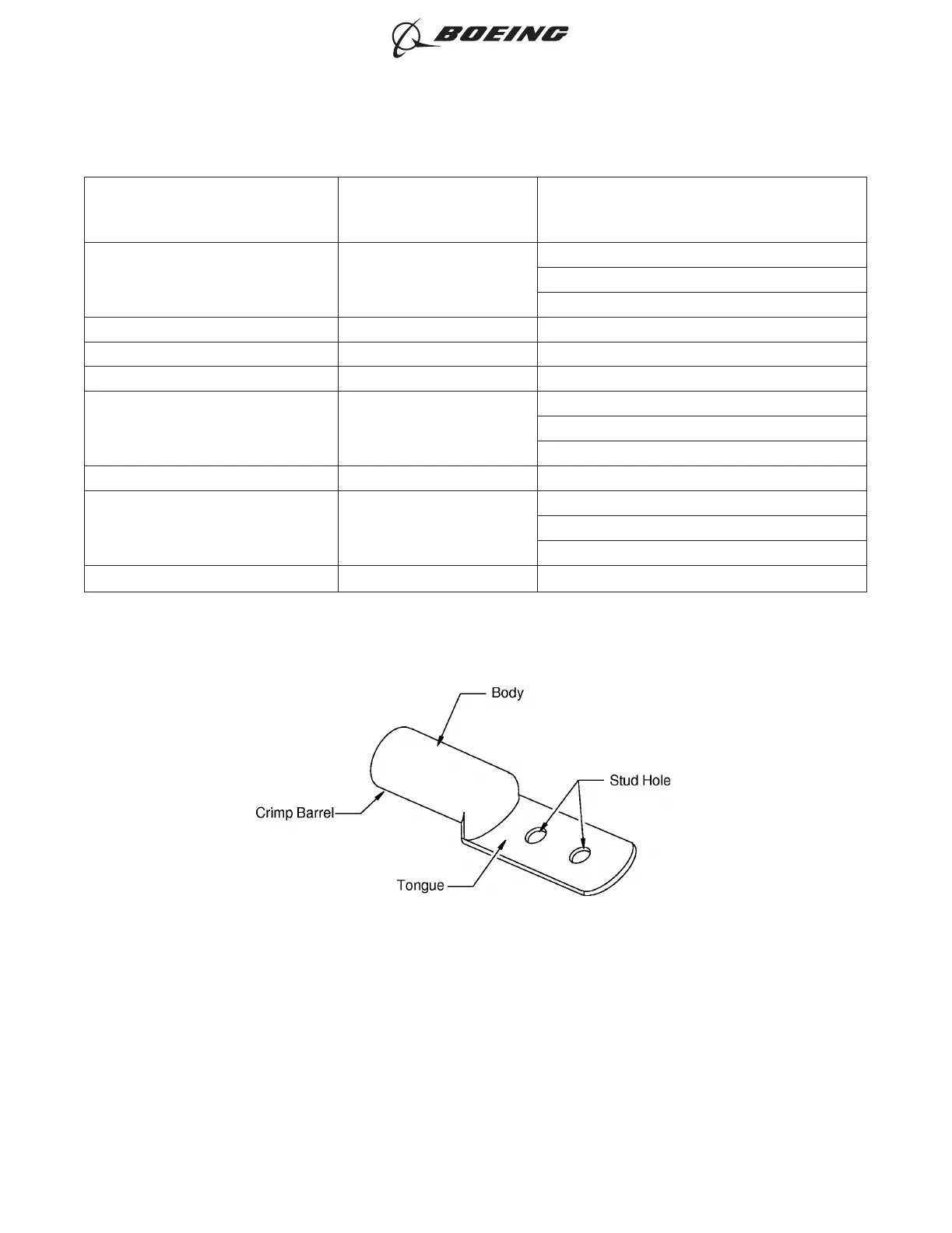

BACT13L COPALUM TERMINAL LUG
Figure 10
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 12
Feb 15/2021D6-54446
