Table 30
BACT12AM TERMINAL LUG PART NUMBERS
Crimp Barrel
Size
(Wire Size
Range)
(AWG)
CAU Range
Insulation
Color
Material
Stud Hole
Size
Boeing Standard
Minimum Maximum Body Plating
22-20 8 24 Green Cu Ni
4 BACT12AM04-20
6 BACT12AM06-20
8 BACT12AM08-20
10 BACT12AM3-20
1/4 BACT12AM4-20
5/16 BACT12AM5-20
3/8 BACT12AM6-20
12-10 52 131 Black Cu Ni 5/16 BACT12AM5-10

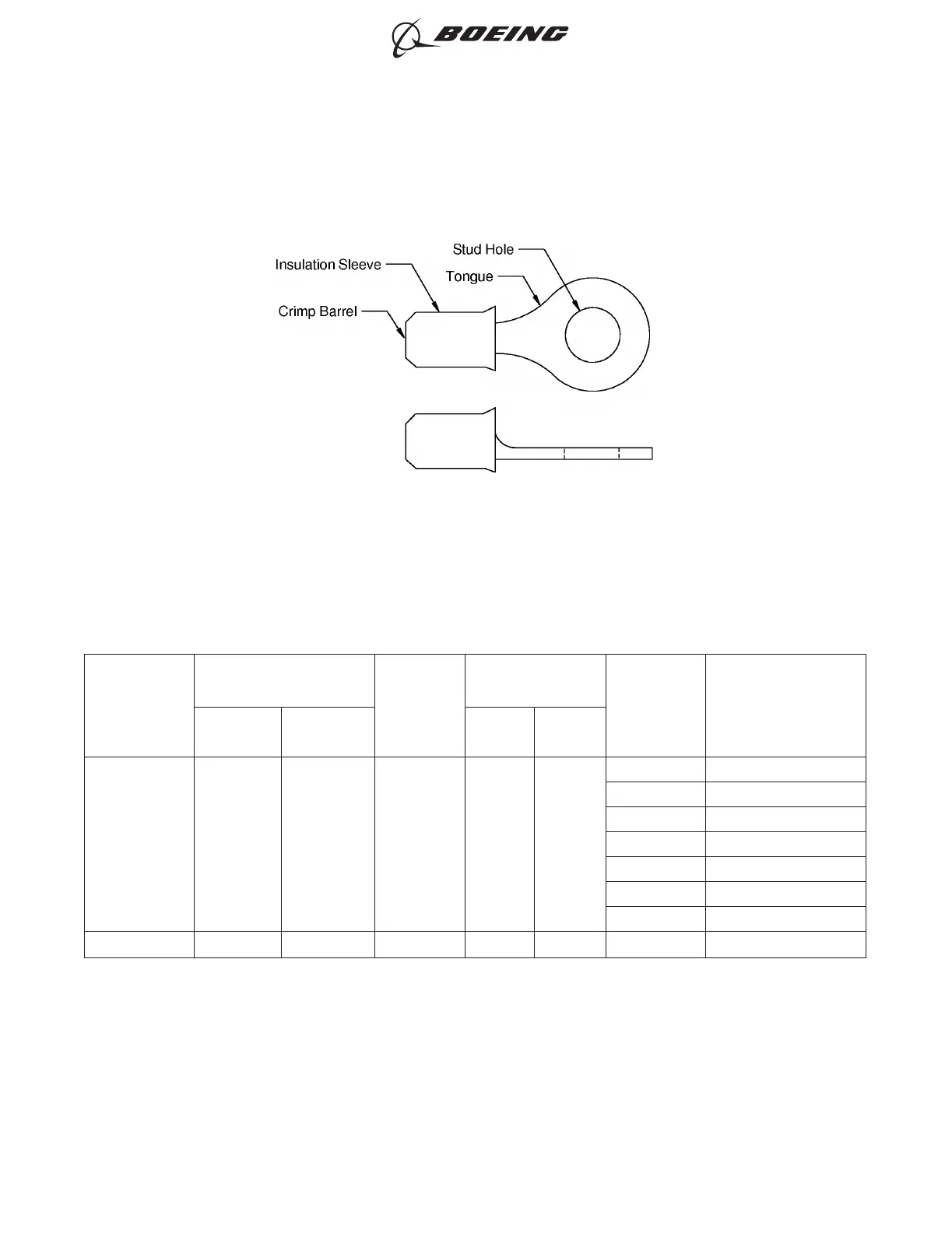

TYPICAL BACT12AM TERMINALS
Figure 16
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 41
Feb 15/2016D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
