(7) Make a selection of a Temperature Grade D heat shrinkable sleeve from Table 51.
Make sure that the sleeve has the smallest diameter that can be put on the splice assembly.
NOTE: For alternative heat shrinkable sleeves, refer to Subject 20-00-11.
(8) Cut the necessary length of the sleeve.
Make sure that the sleeve extends a minimum of 1.5 inches farther than each end of the splice.
(9) Put the sleeve on the wires of one end of the splice assembly.
(10) Prepare each wire for the side of the splice assembly with two wires.
Table 86
INSULATION REMOVAL LENGTH
Splice Part Number
Insulation Removal Length L
(inch)
Target Tolerance
BACT12C11 0.46 ±0.02
BACT12C15 0.30 ±0.02
BACT12C20 0.30 ±0.02
(a) Remove the necessary length of insulation from the end of each wire.
Refer to:
INSULATION REMOVAL LENGTH

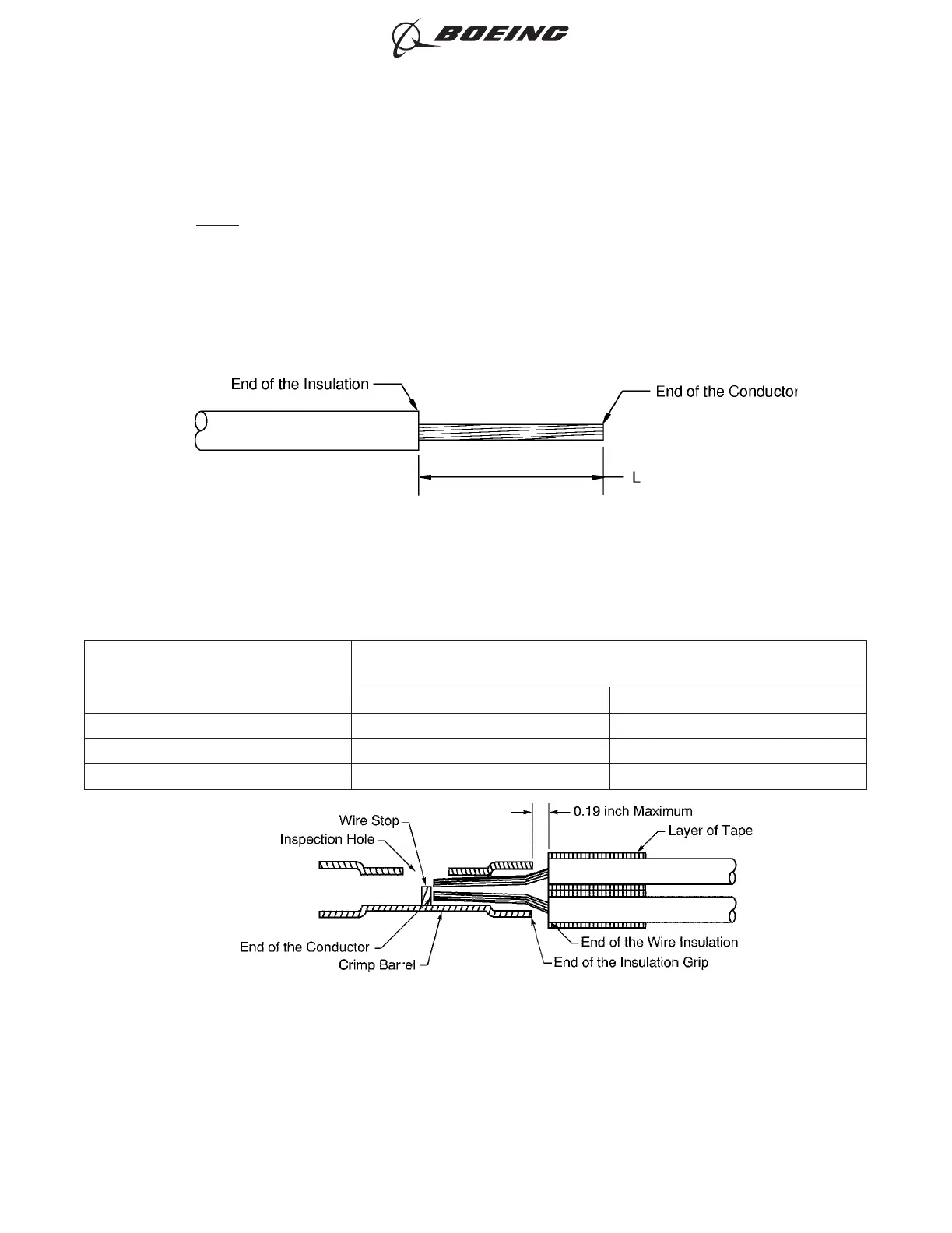

Figure 107
POSITION OF THE WIRES IN THE BUTT SPLICE
Figure 108
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 134
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
